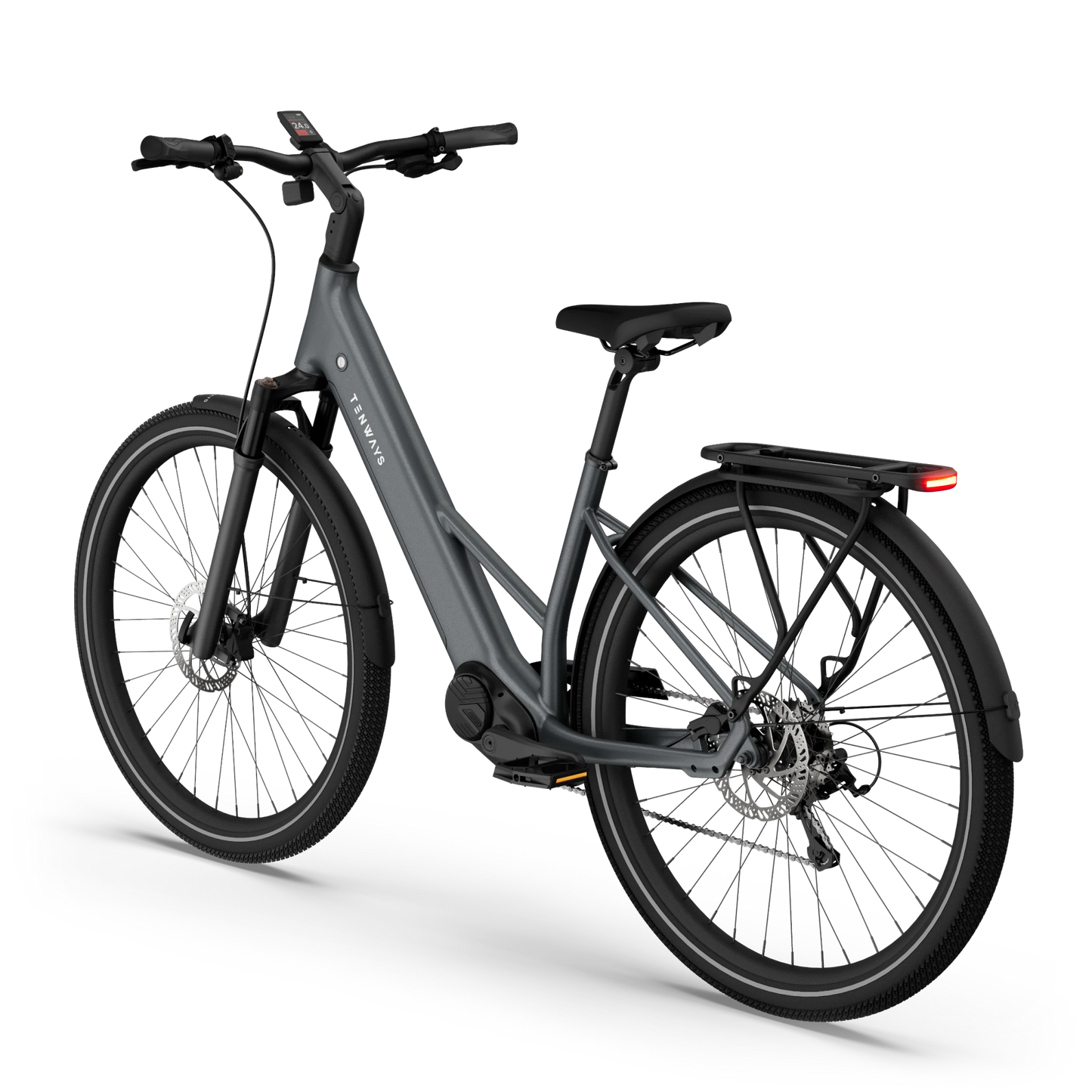

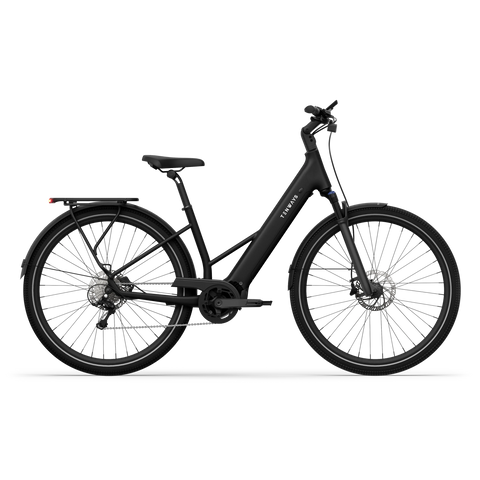

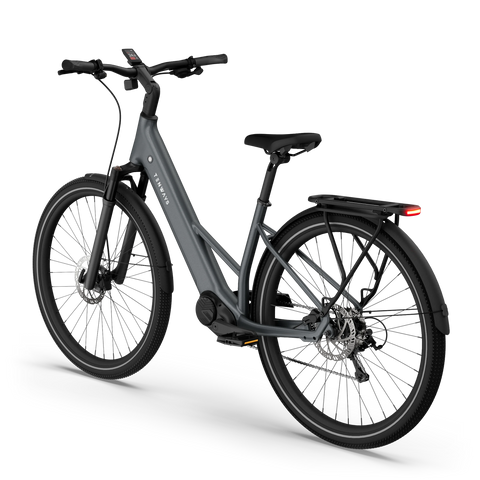

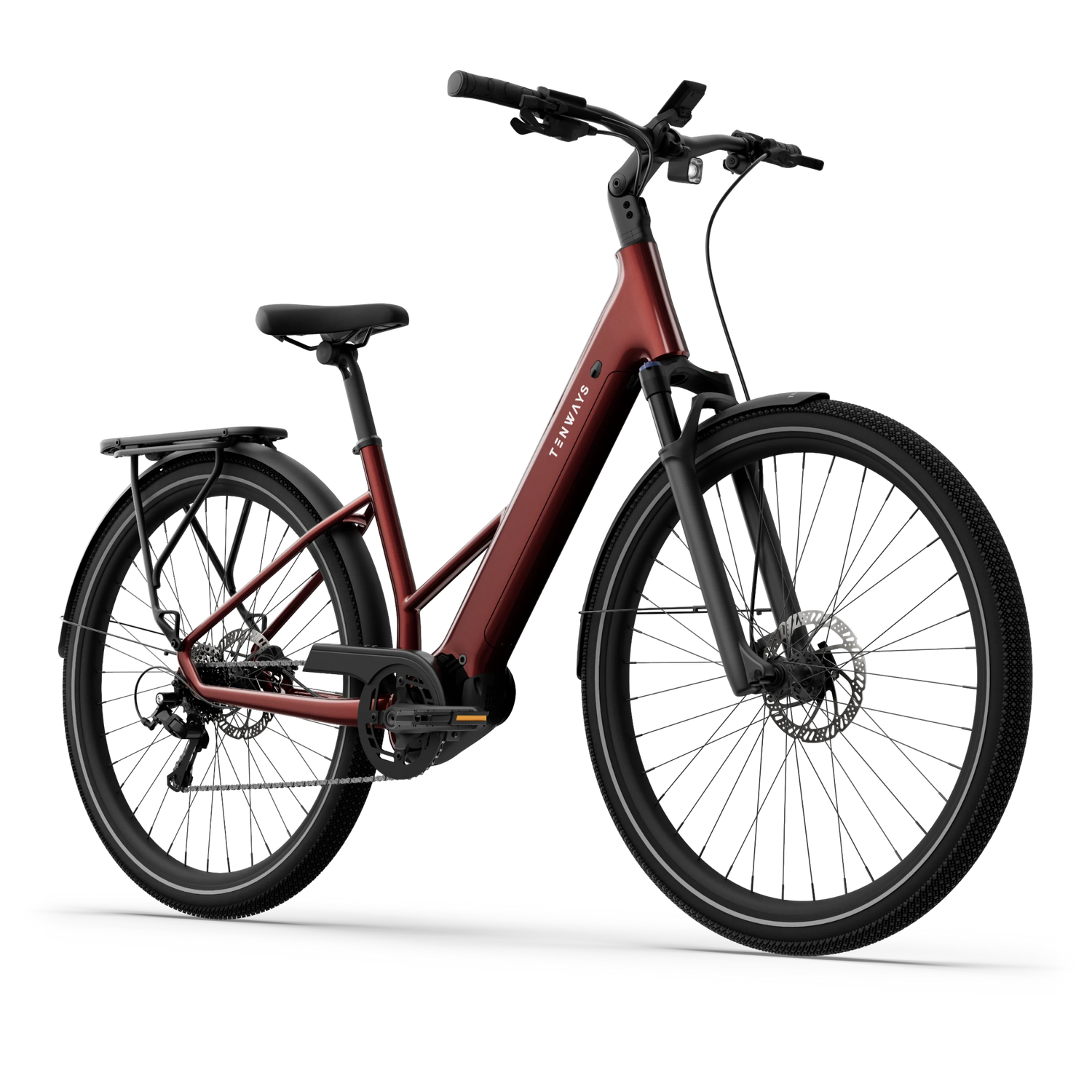

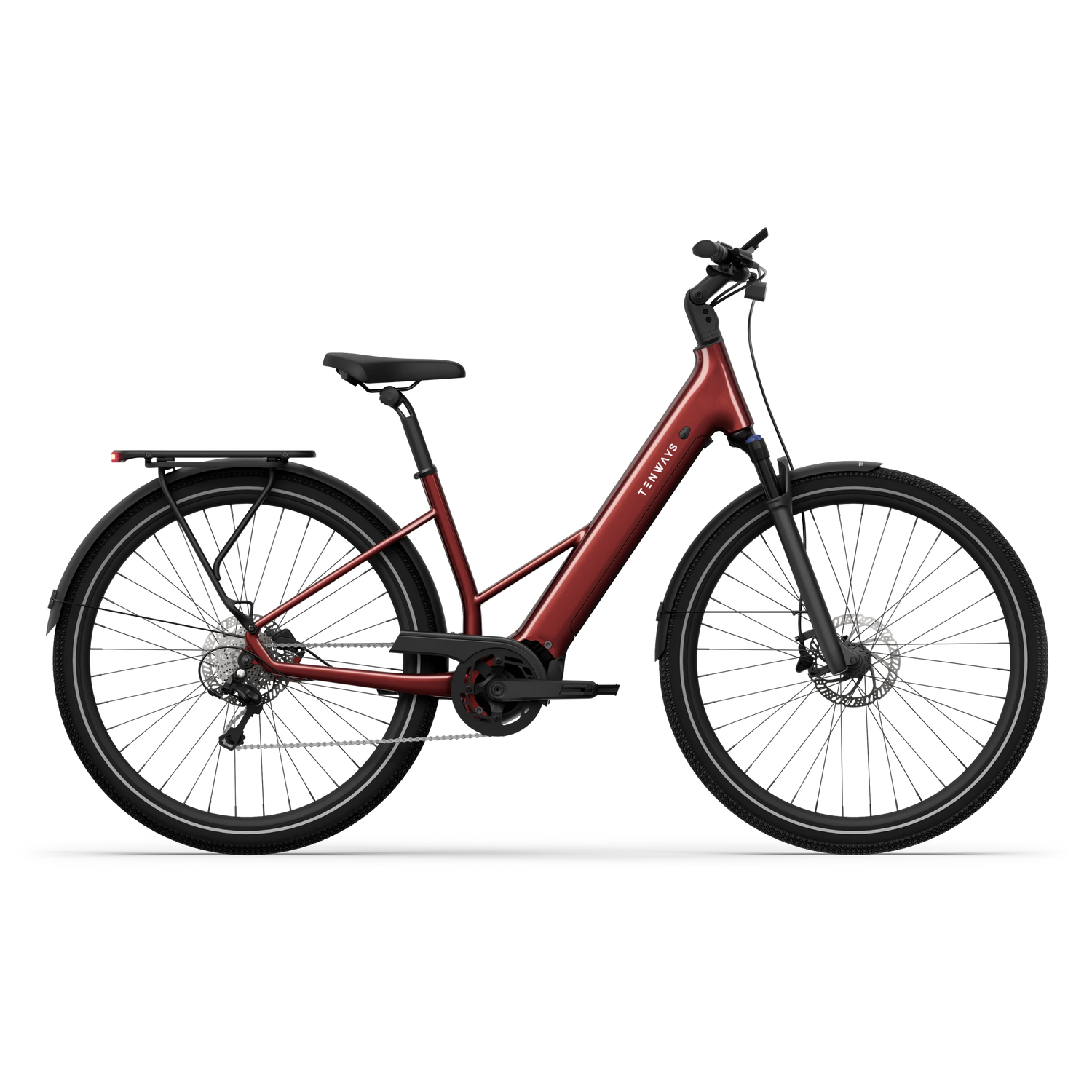

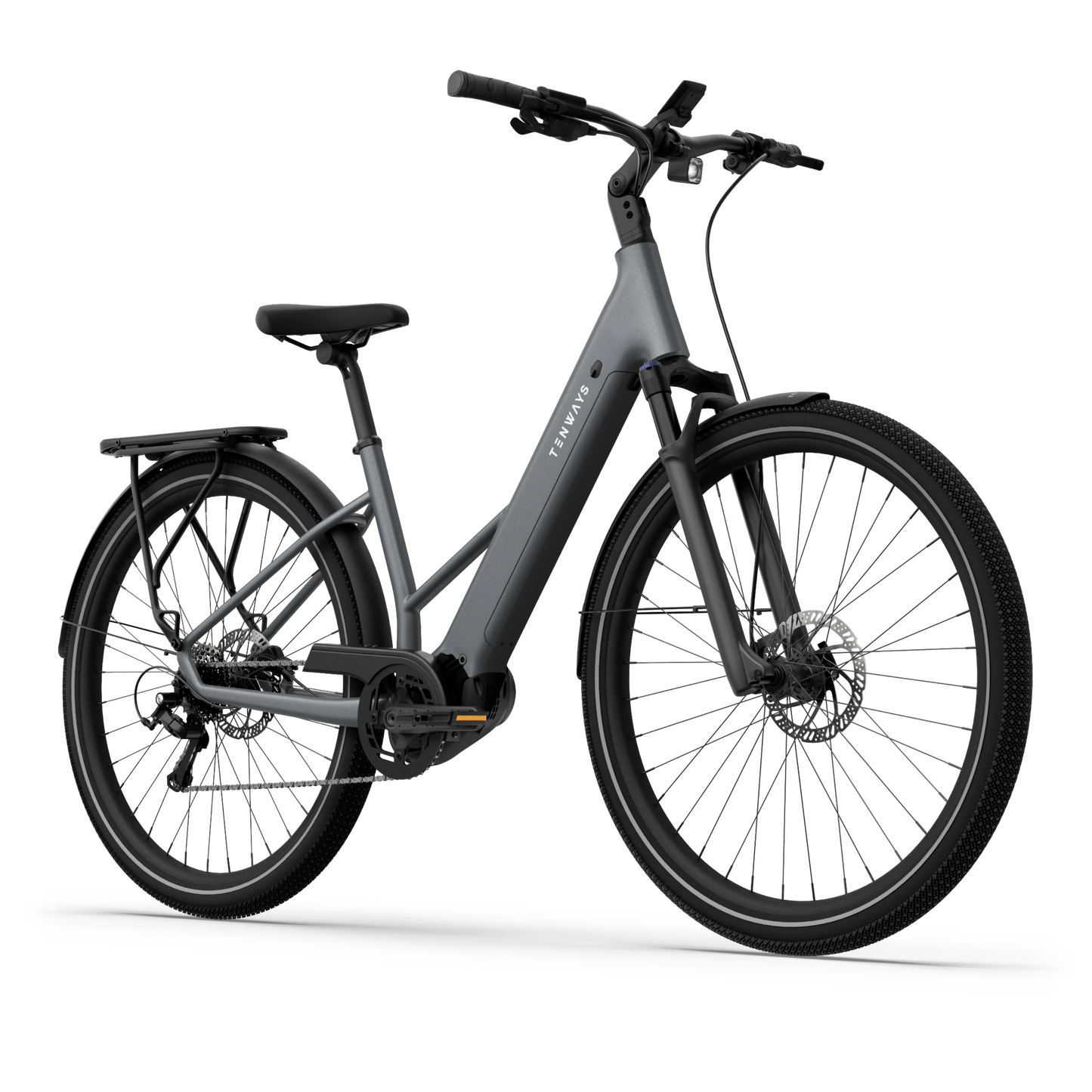

TENWAYS AGO AIR

Sleek Trekking Delight

Limited stock: get a free €59 pannier with your AGO AIR.

Our Four Promise To You

Order now, we'll ship within 2 days

Order now,
we'll ship within 2 days

200+ offline service centers across Europe

Responsive support that guarantees results

Spare parts supplied beyond the warranty period

Built to impress.
Stand out from the crowd.

Built to impress. Stand out from the crowd.

PERFORMANCE

560 Wh battery

80 Nm max. torque

Up to 100 km range

Shimano 9-speed drivetrain

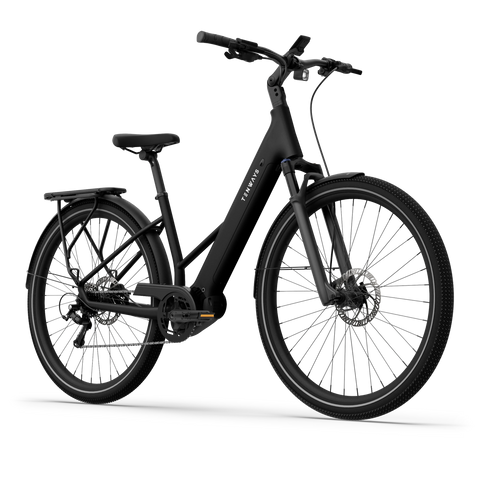

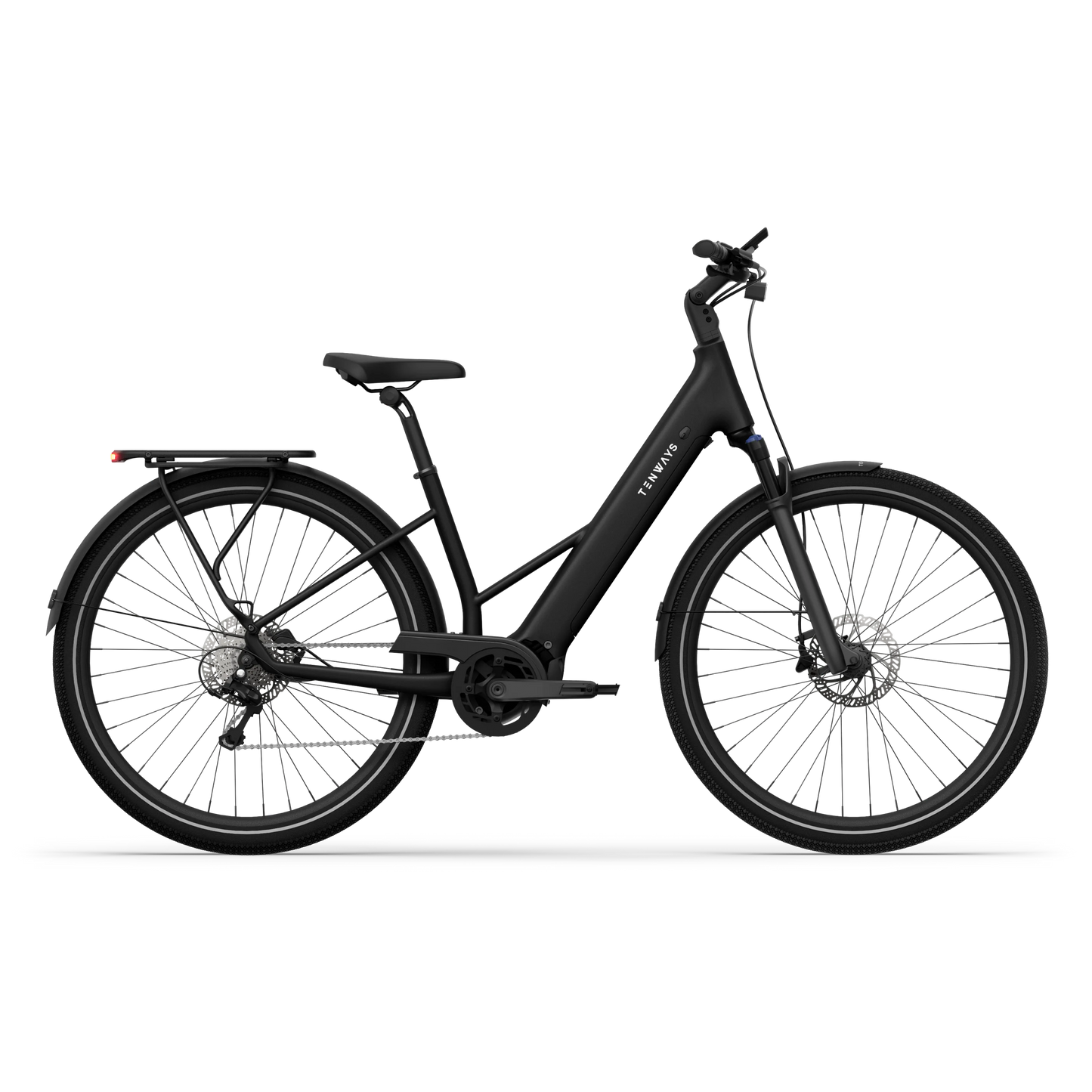

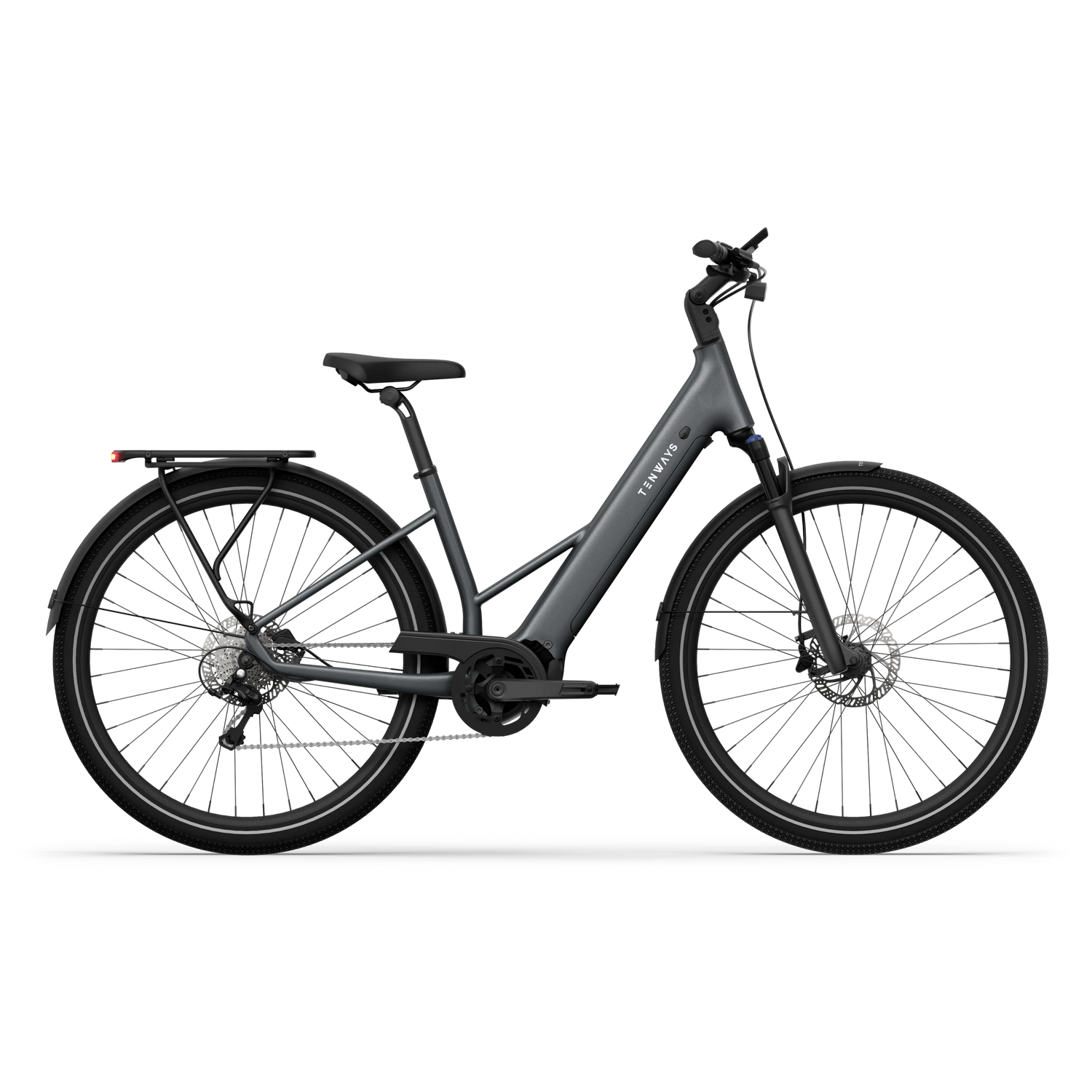

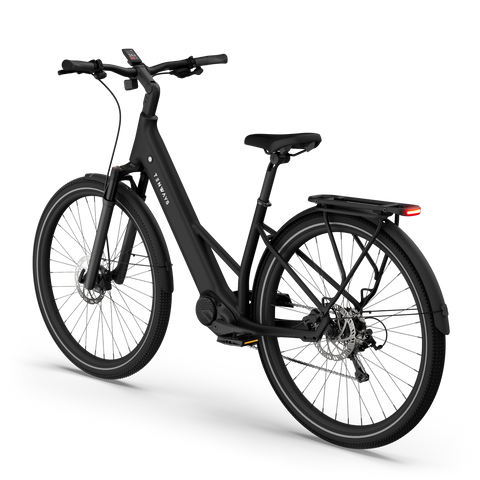

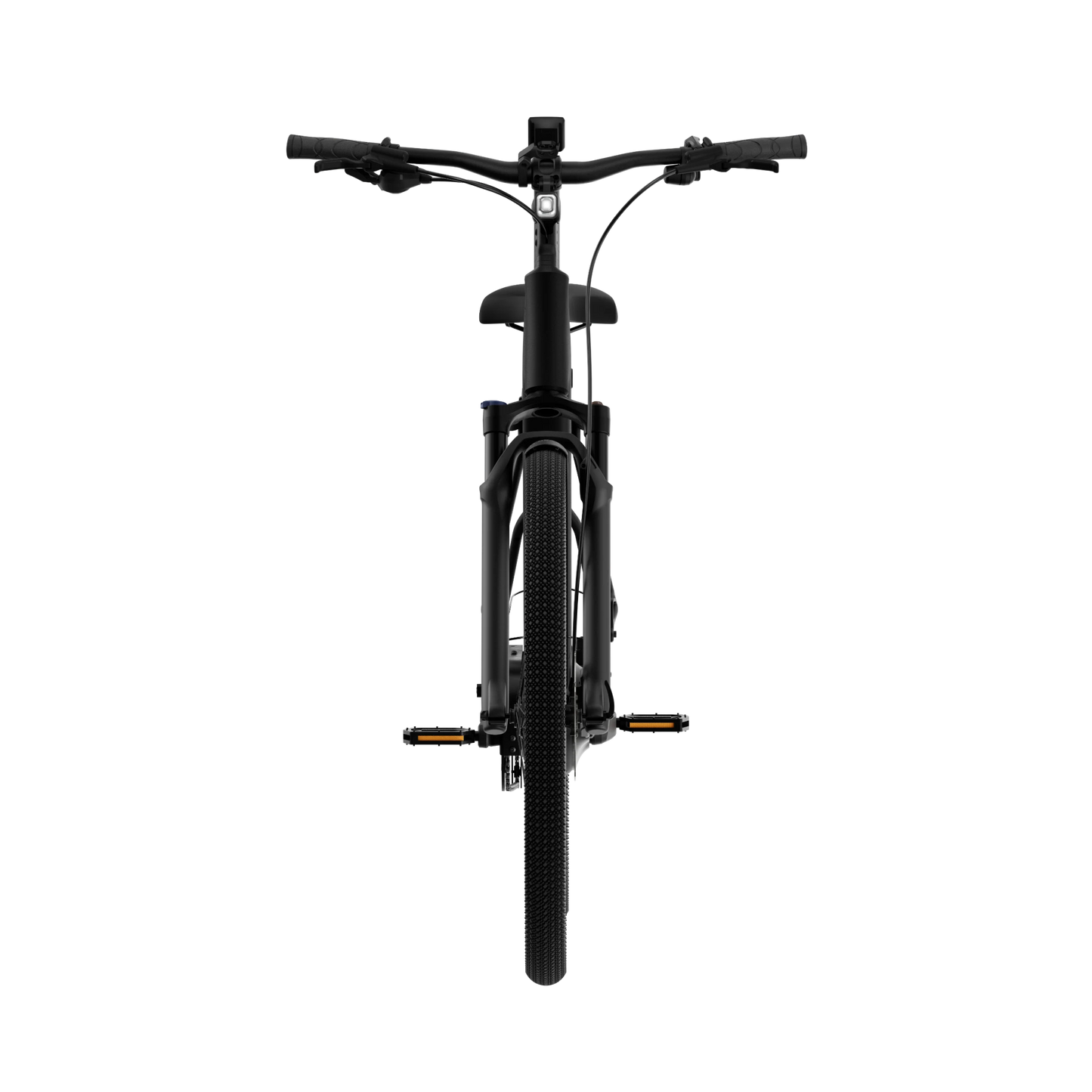

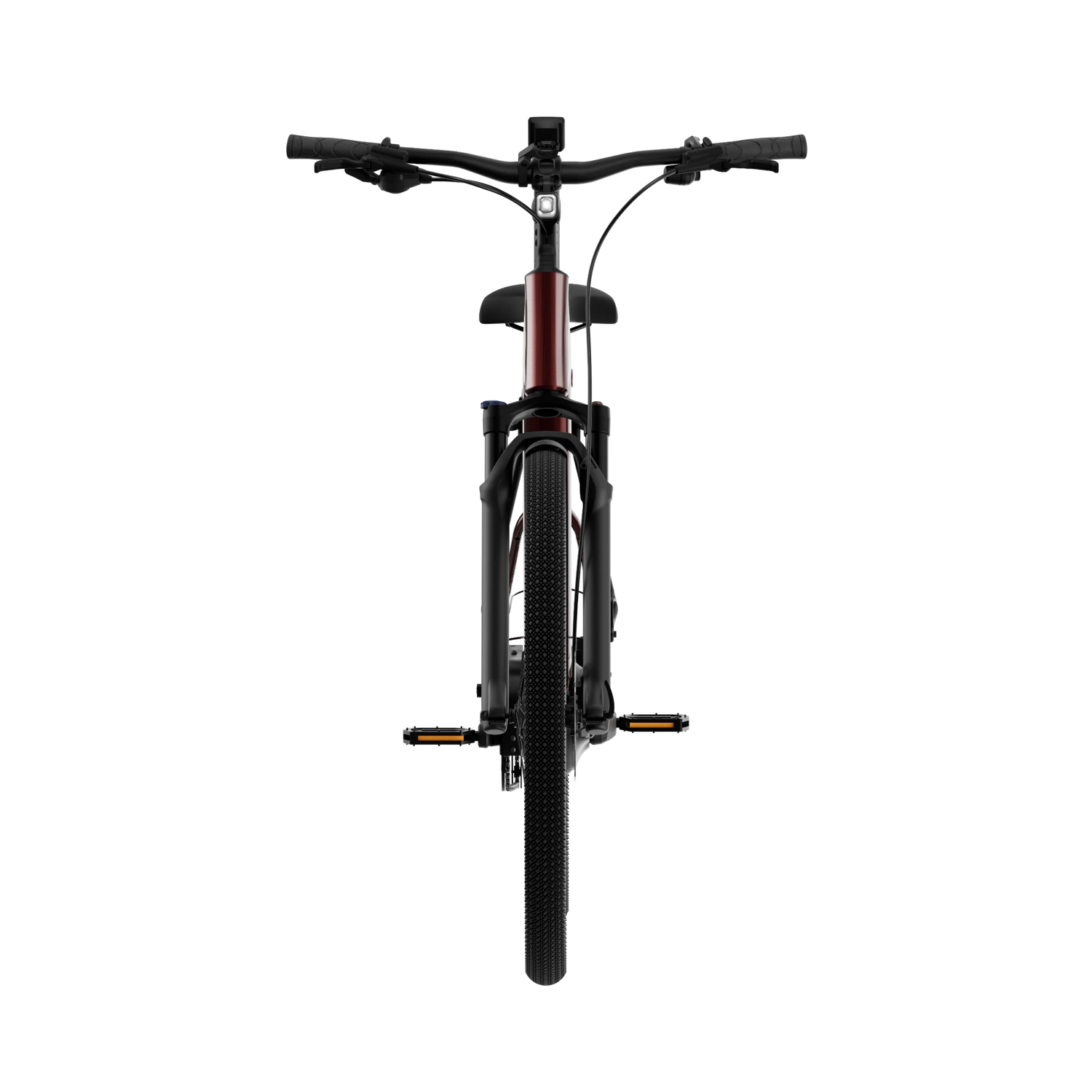

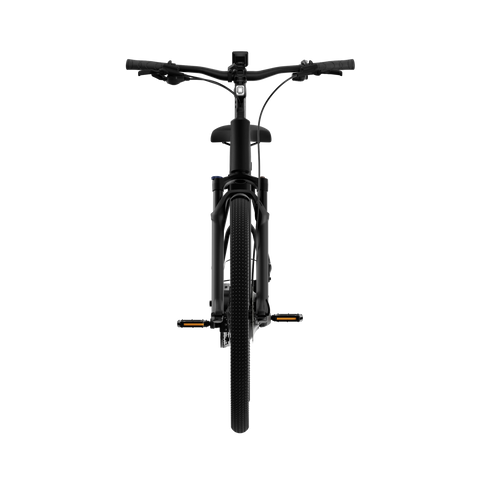

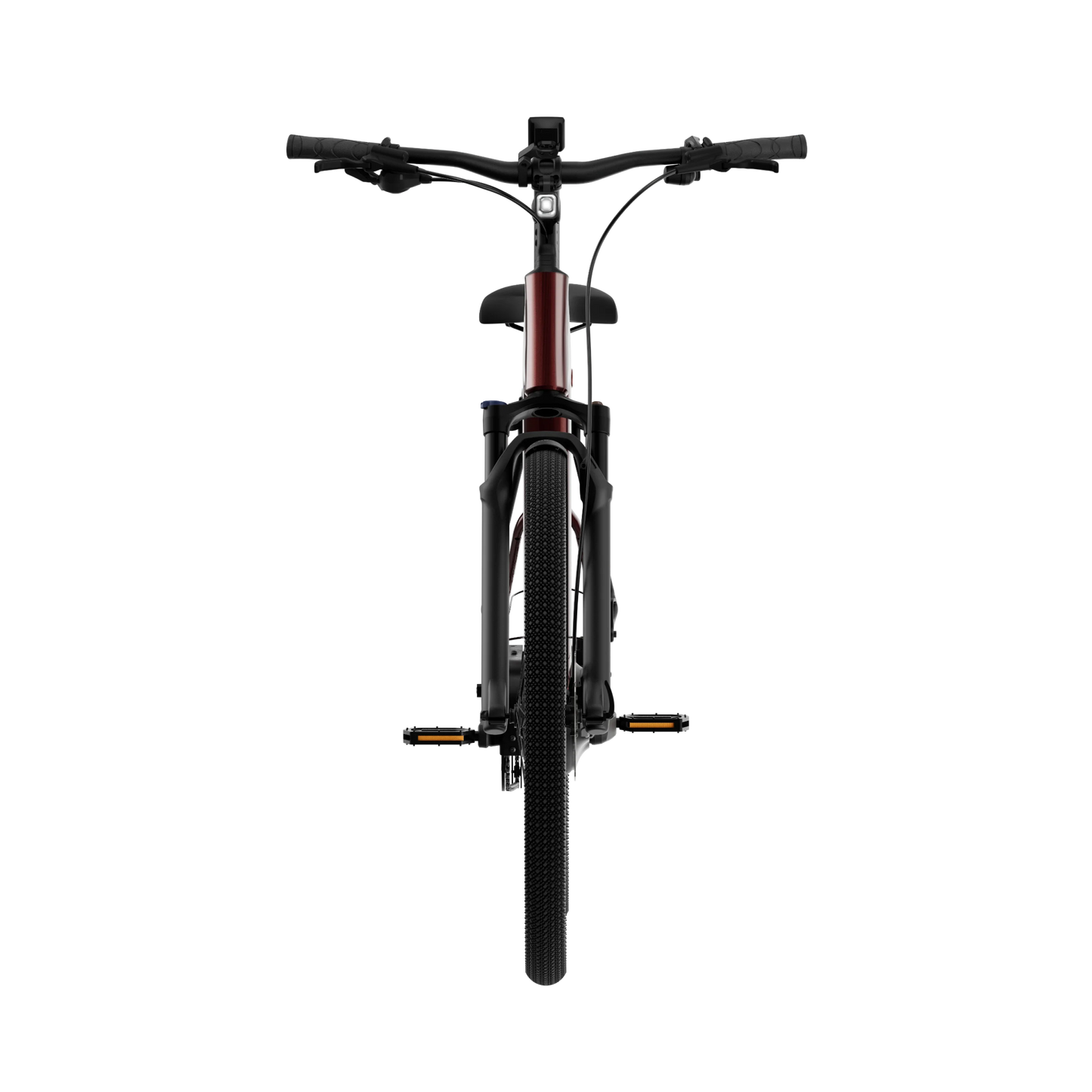

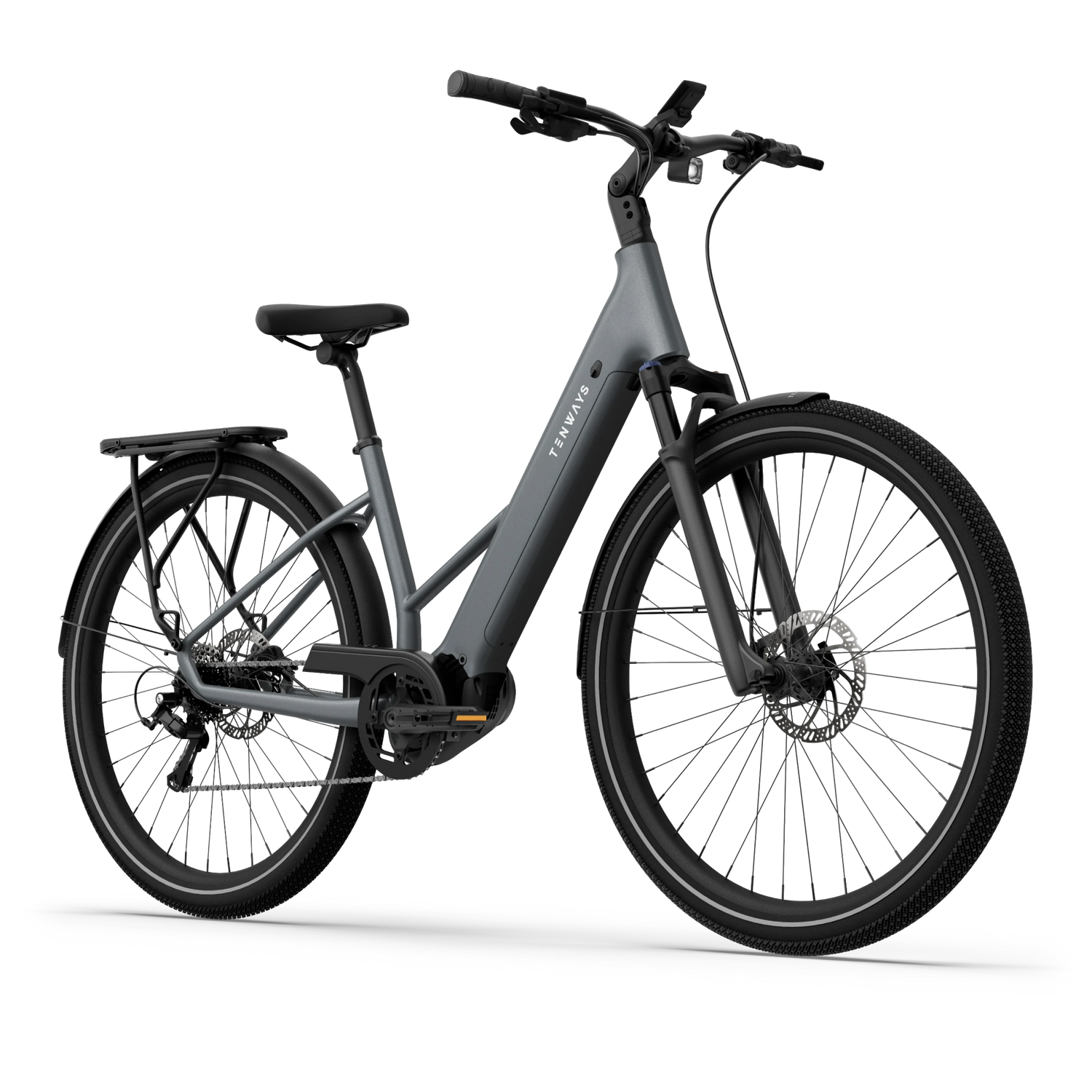

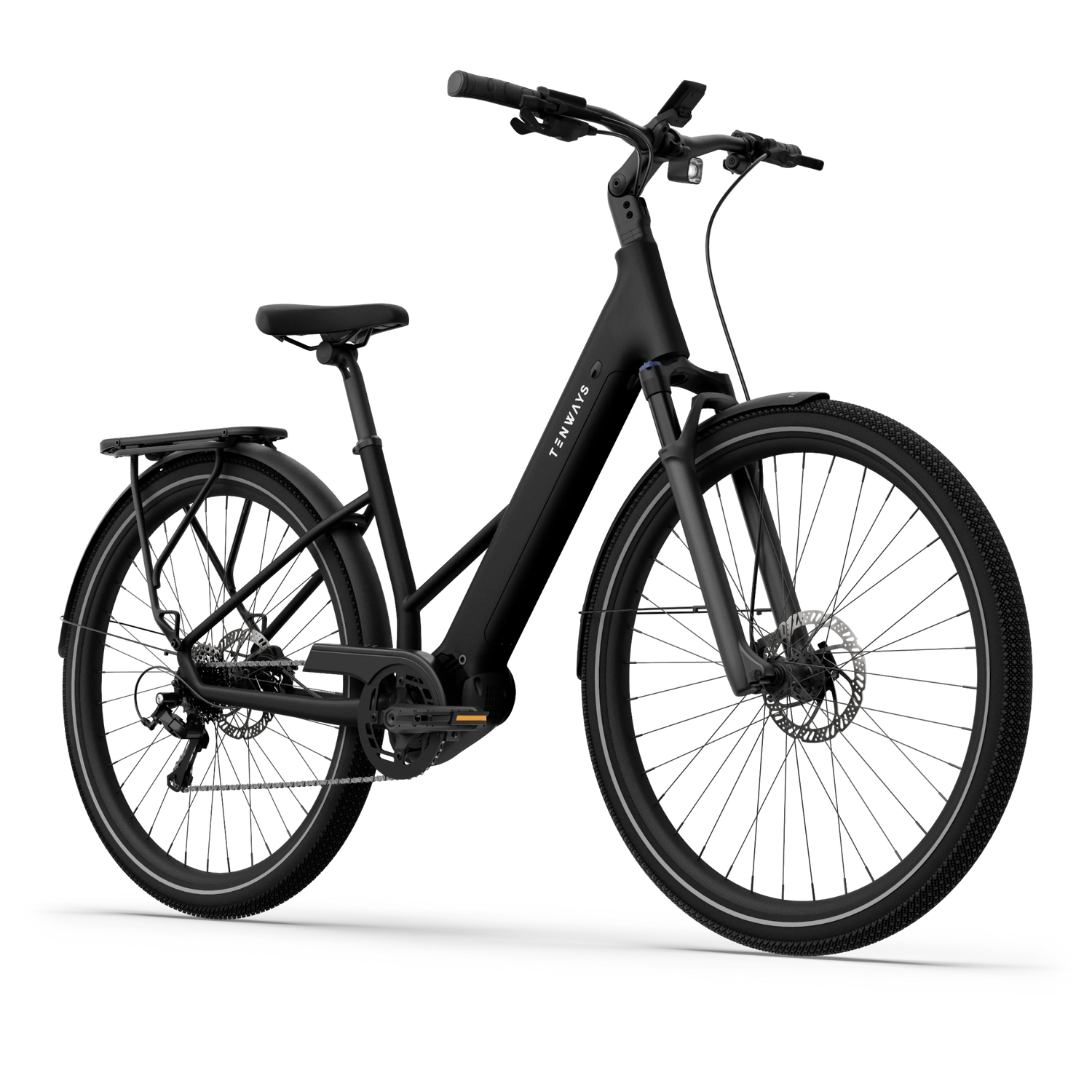

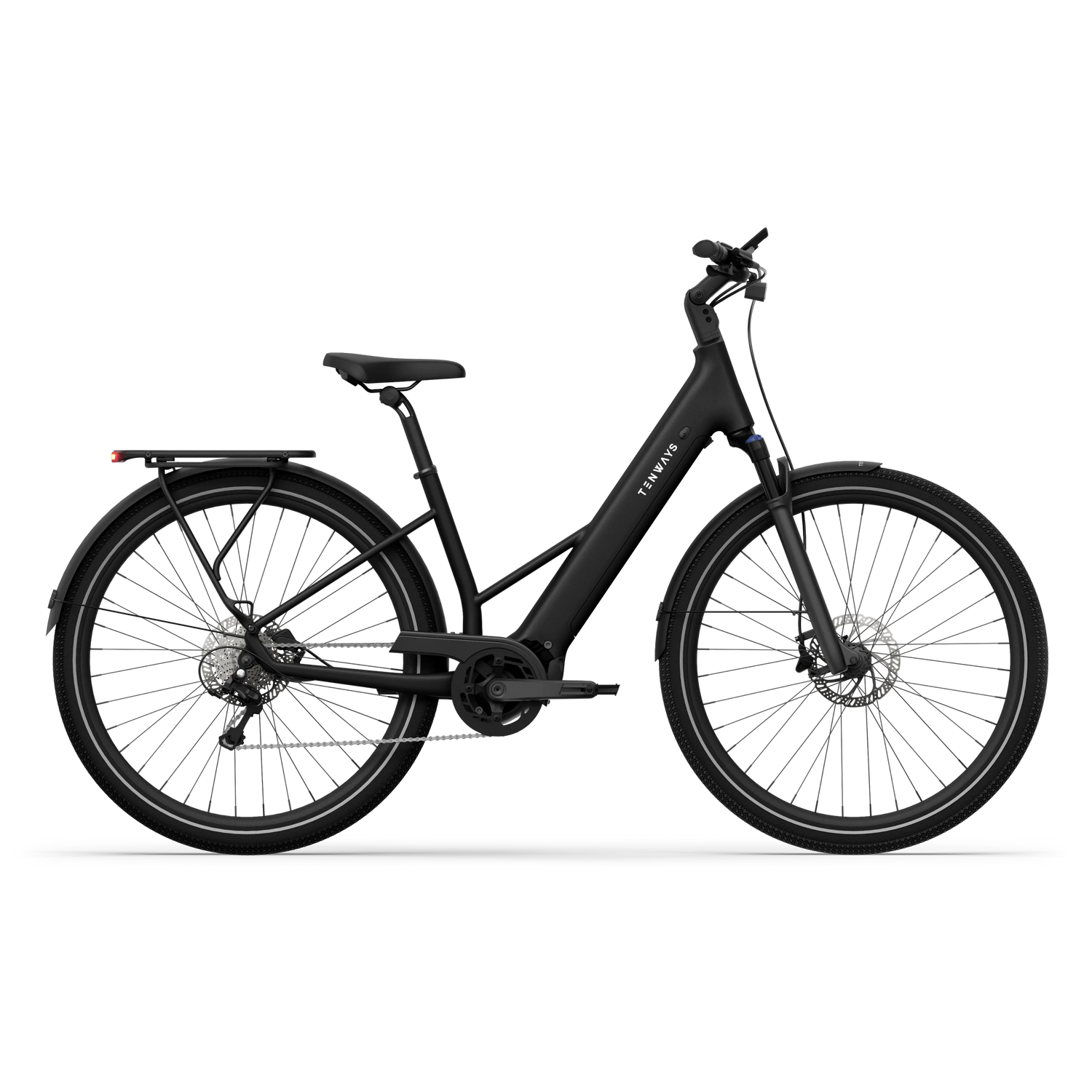

COLORS

Urban Commuting

Climbing Slopes

Field Trails

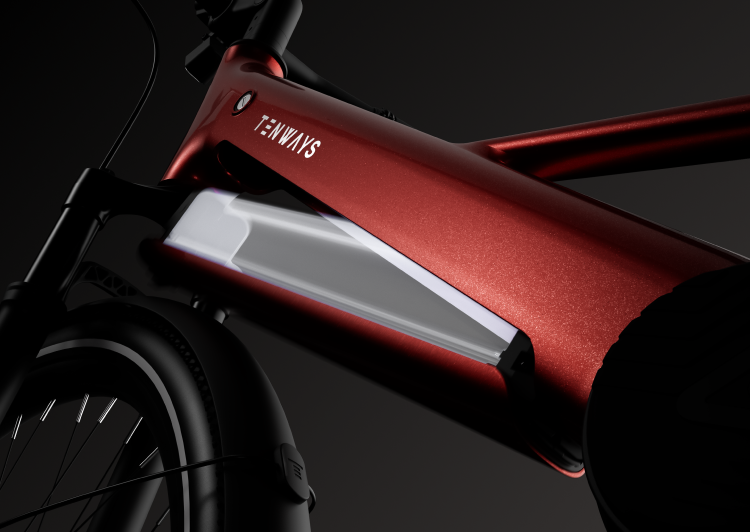

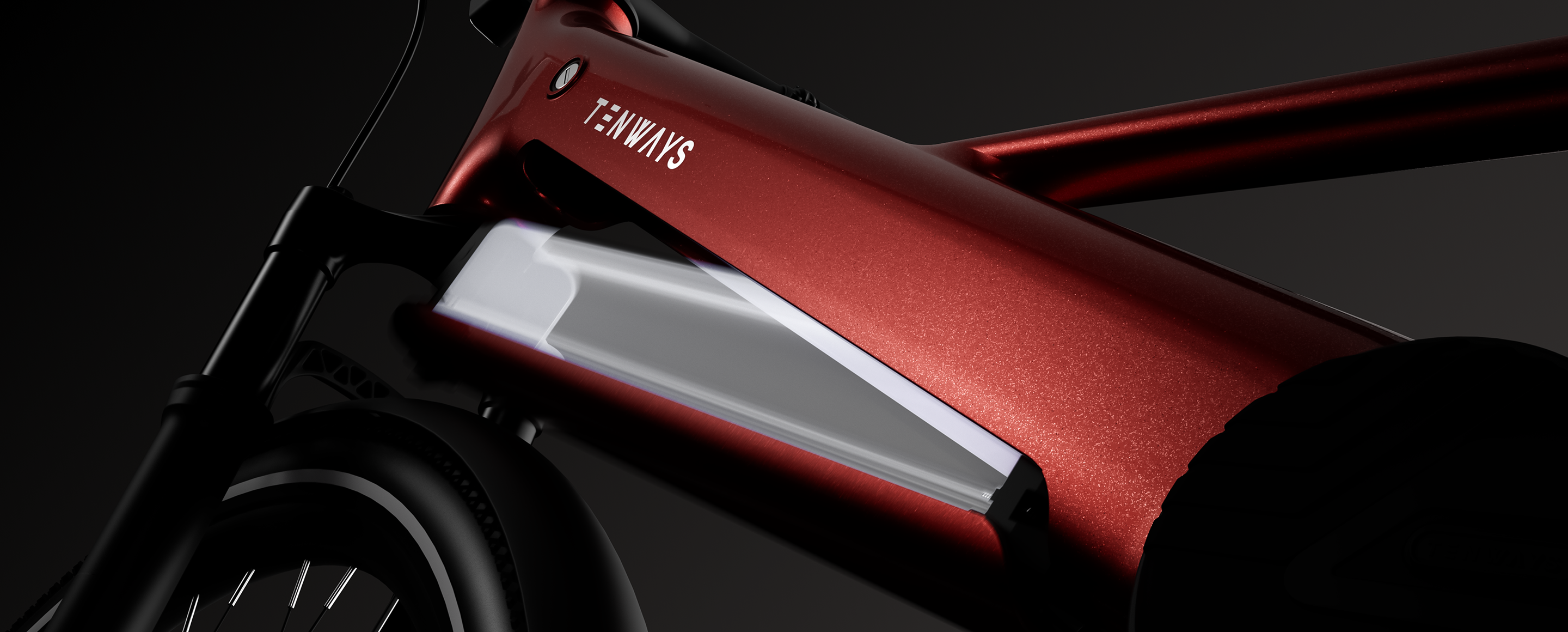

Large Portable Battery, Up to 100 km Range

Large Portable Battery,
Up to 100 km Range

560 Wh

Capacity

100 km

Range

Seamlessly integrated into the slim frame, the large portable battery is barely noticeable from a distance.

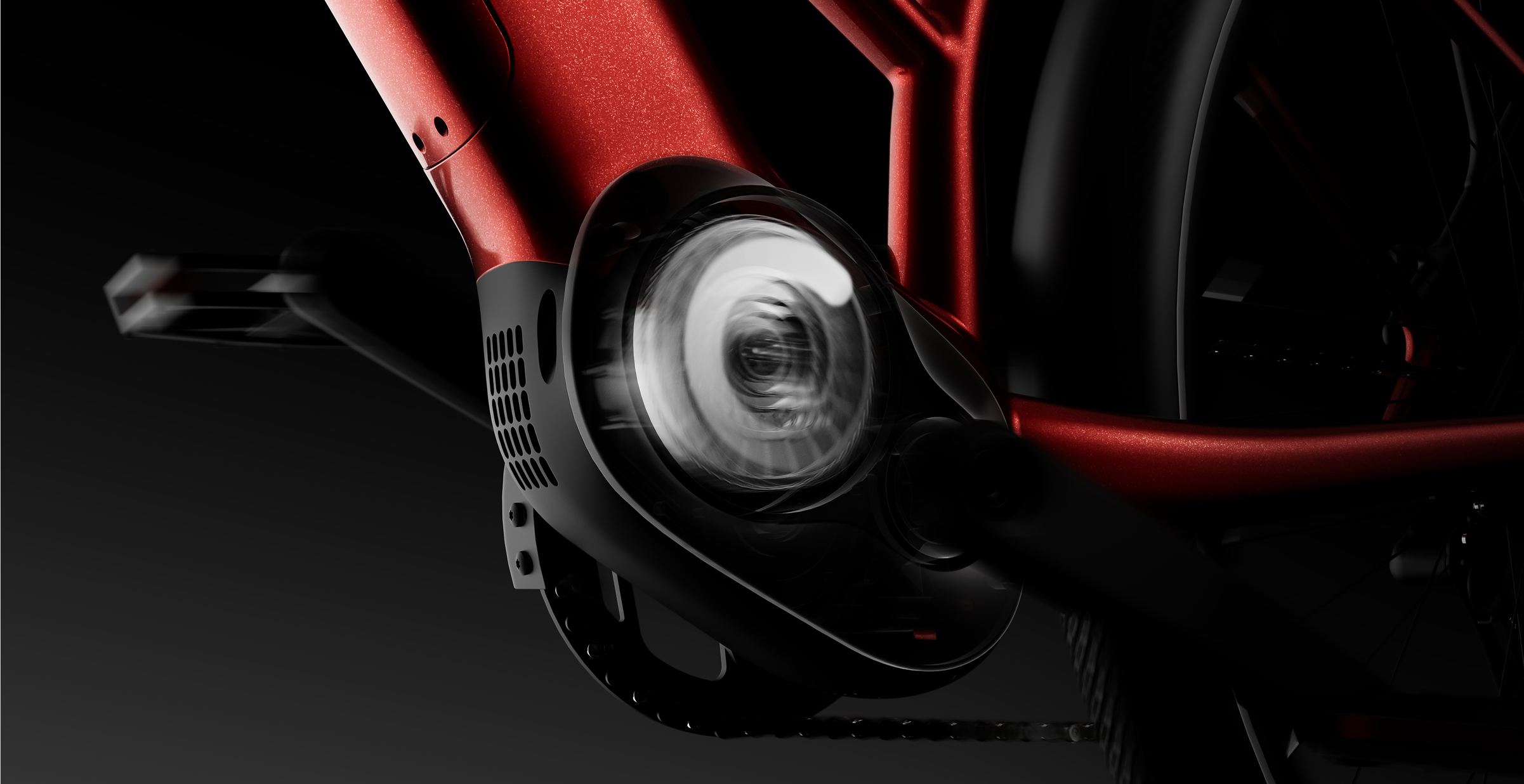

Powerful Mid-Drive Motor, for Steep Climbs

The robust mid-drive motor provides the power needed for steep slopes or carrying heavy loads.

80 Nm max.

Torque

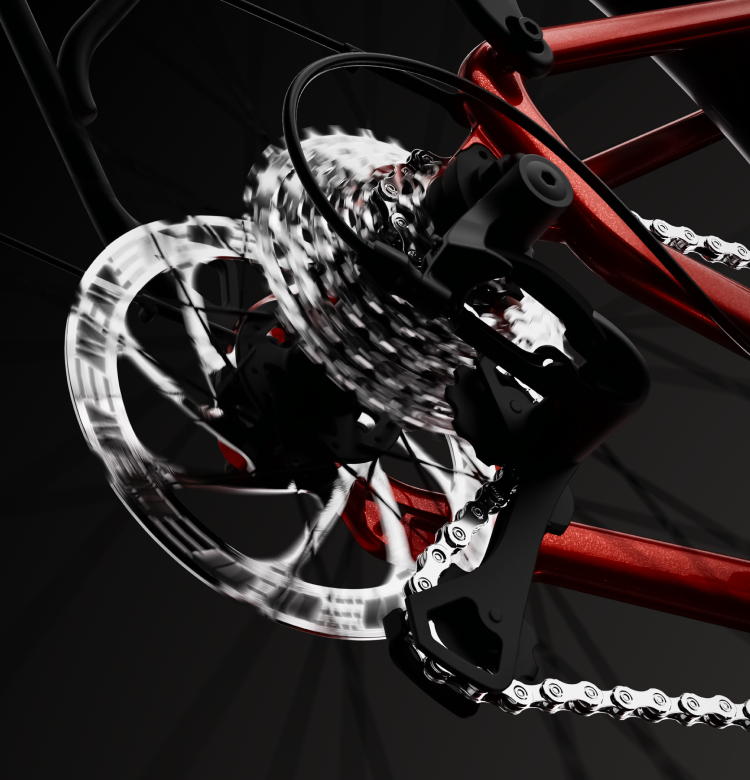

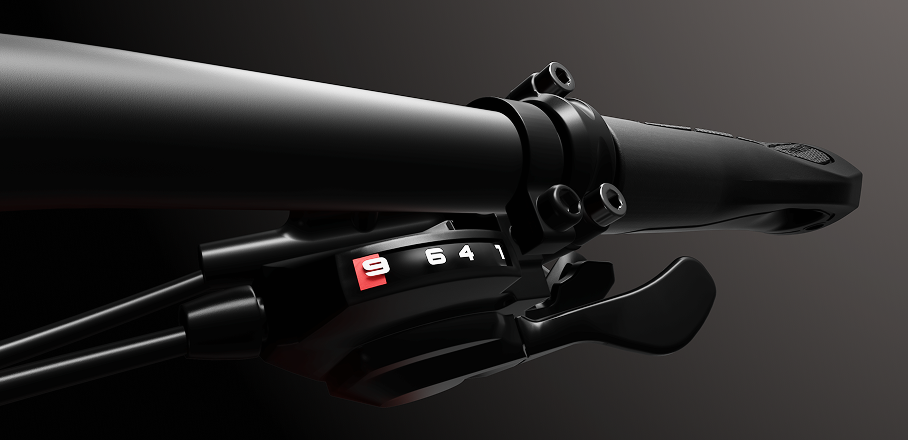

Highly Versatile Shimano 9-Speed Drivetrain

100%-373%

Gear ratio range

Reliable and crisp gear shifting, suitable for a wide range of terrains.

Highly Versatile Shimano
9-Speed Drivetrain

100%-373%

Gear ratio range

Reliable and crisp gear shifting, suitable for a wide range of terrains.

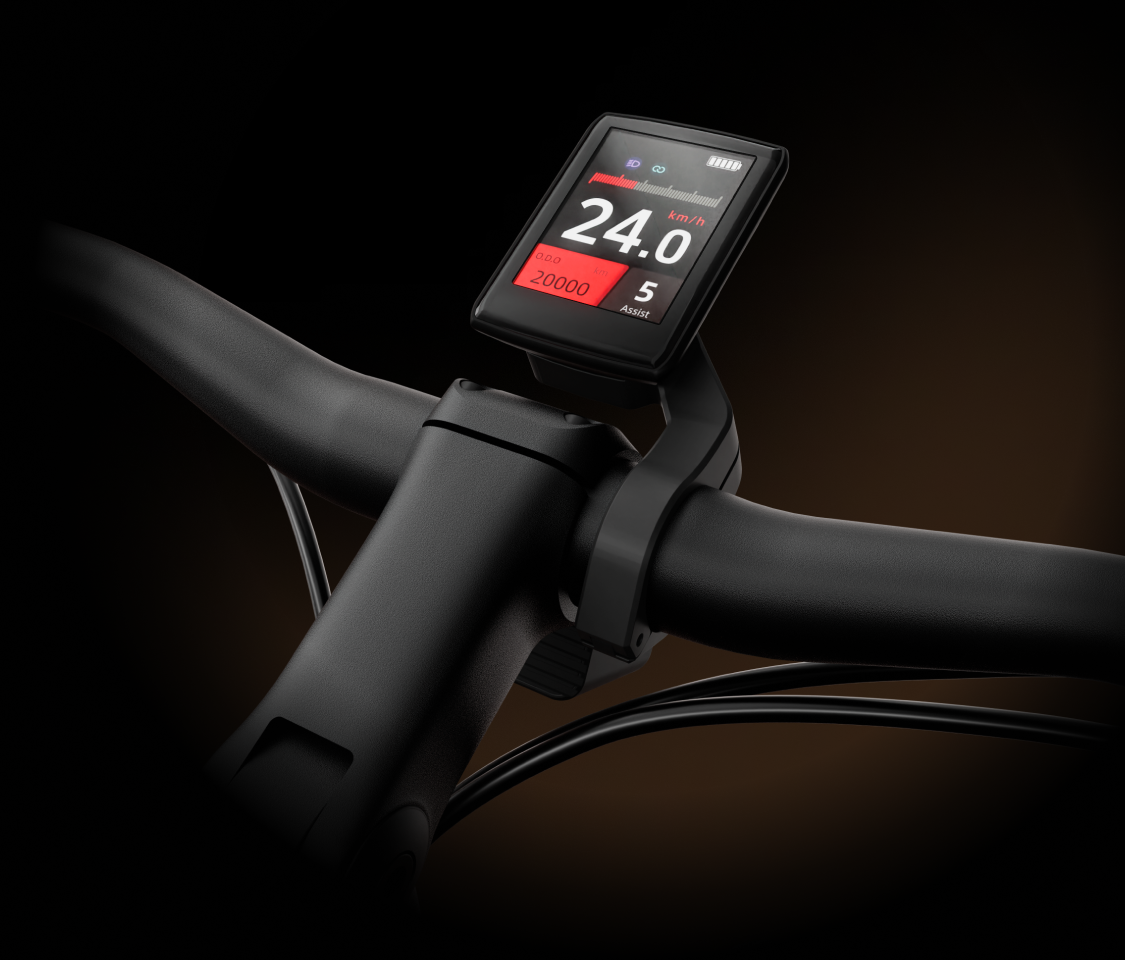

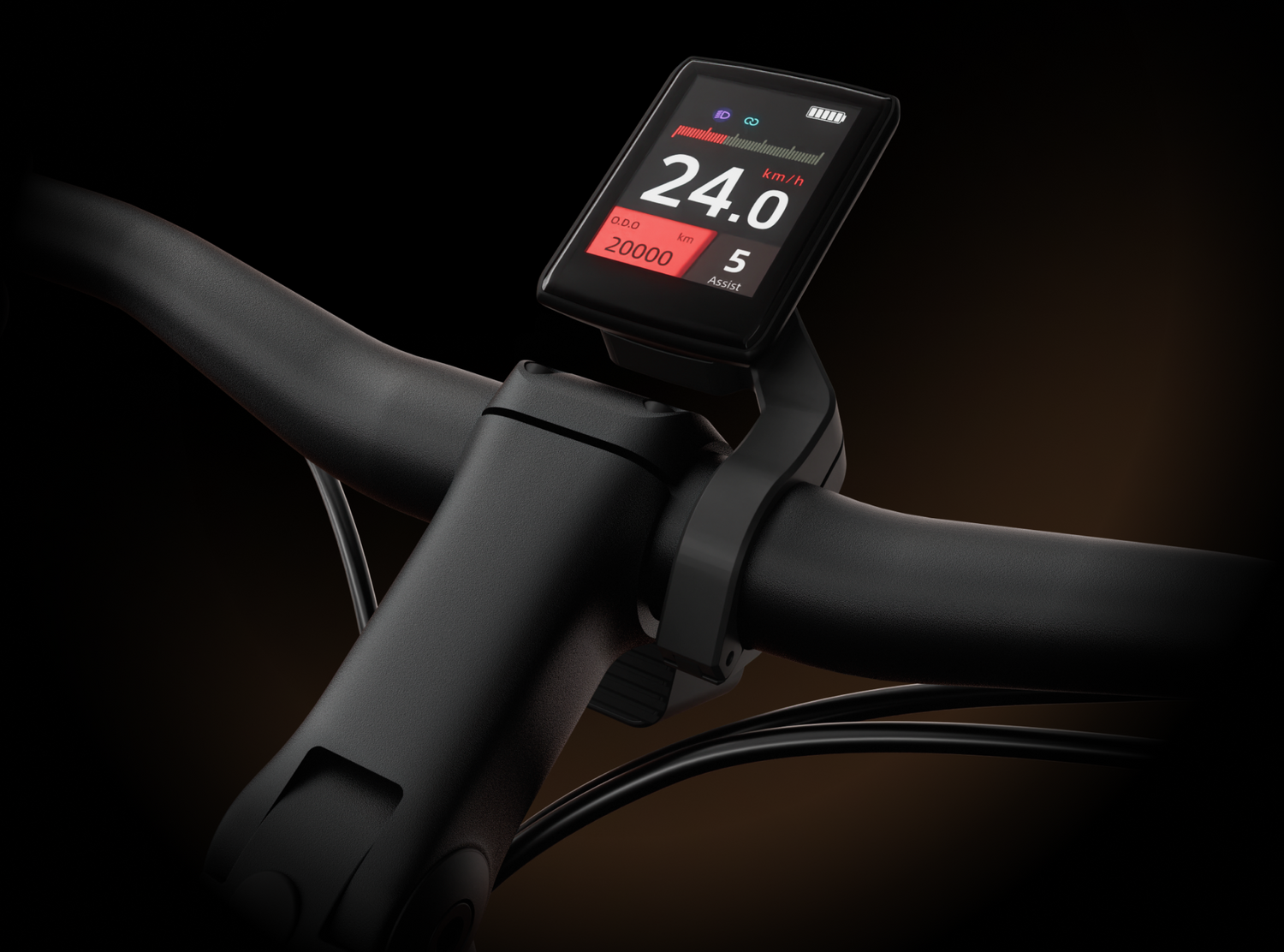

Handy Navigation Casting Function

Cast real-time navigation directly to your LCD display, helping you stay focused on the road ahead.

Supports 7 European Languages

Get all the data you need in the language of your choice - you can choose from 7 European languages (EN, DE, NL, FR, IT, ES, DA).

Dual Unlock Modes Enabled

Secure access to your e-bike with seamless unlocking via Bluetooth or simply with a password.

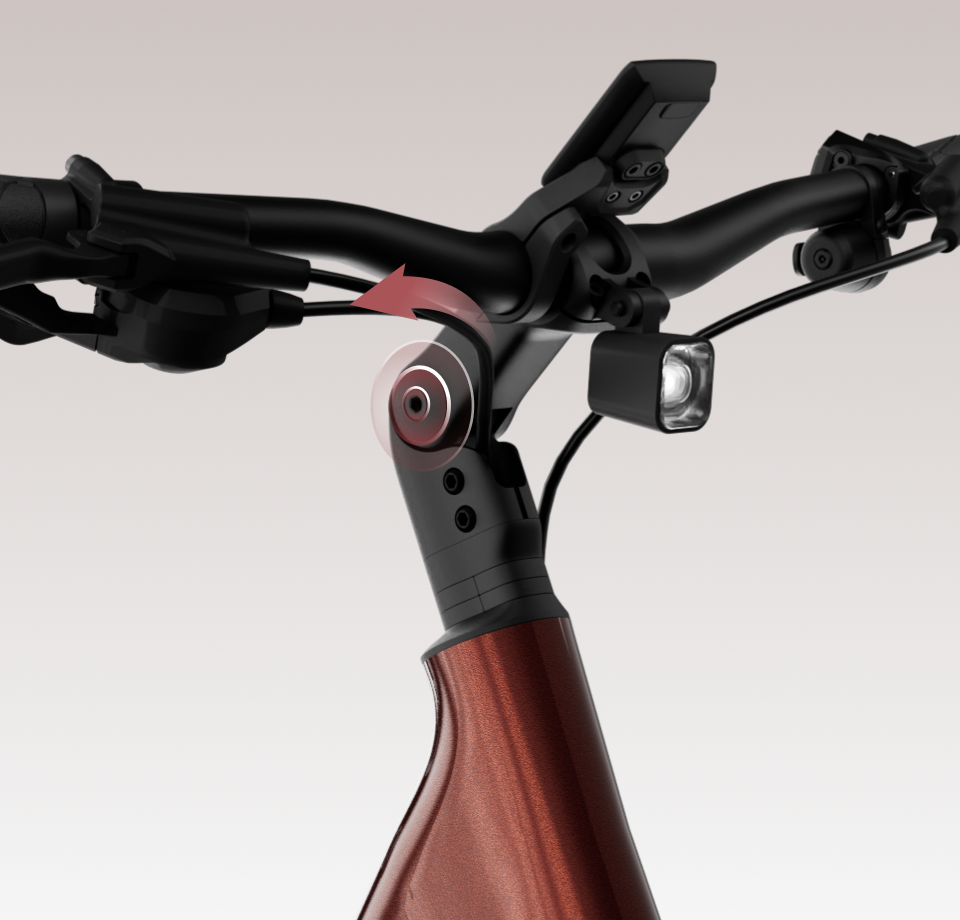

Adjustable Stem

Customizable handlebar height and angle for a perfect fit, regardless of riding style and body type.

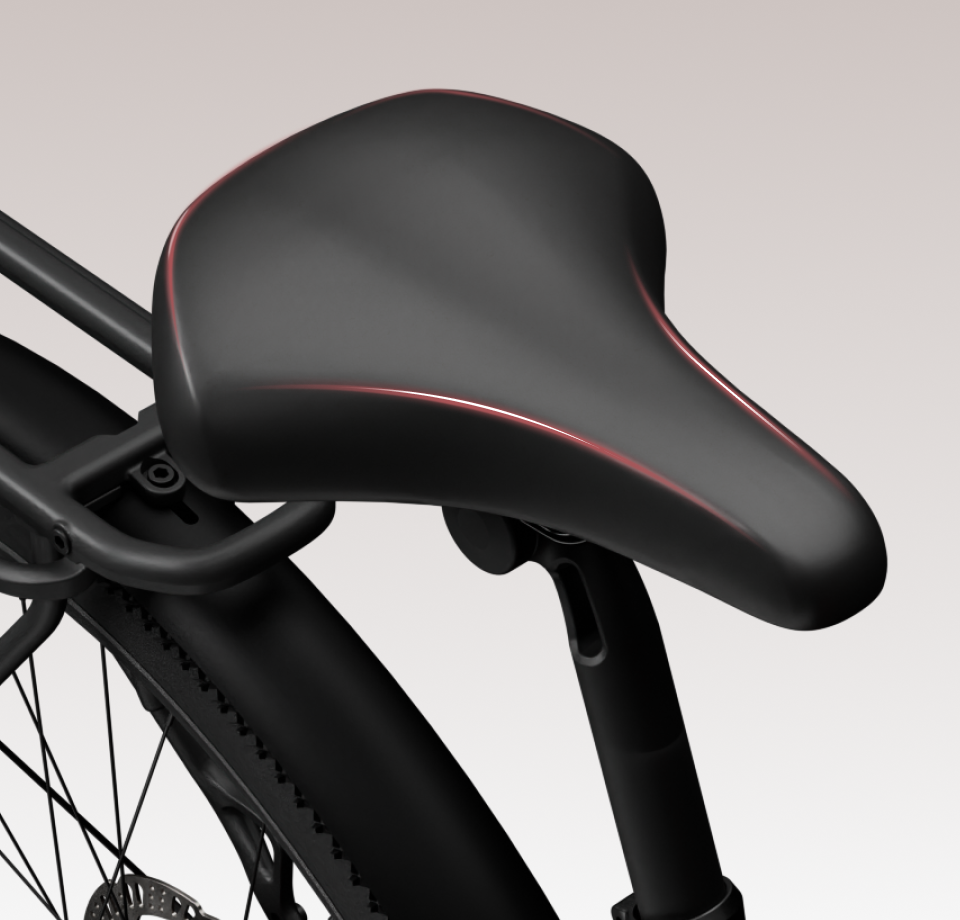

Selle Royal Saddle

Ergonomic with cushioned comfort, for boosted support whatever the distance.

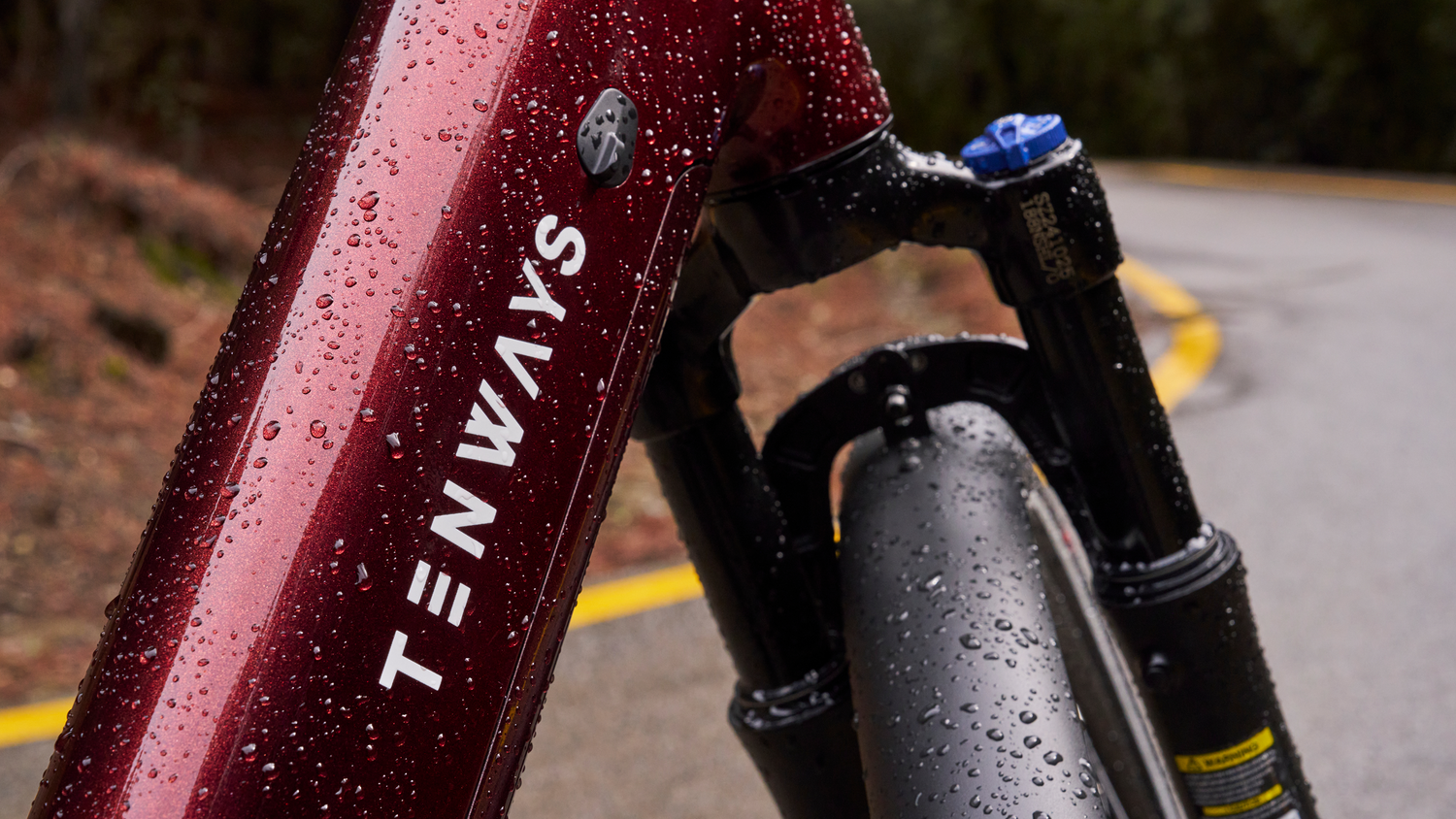

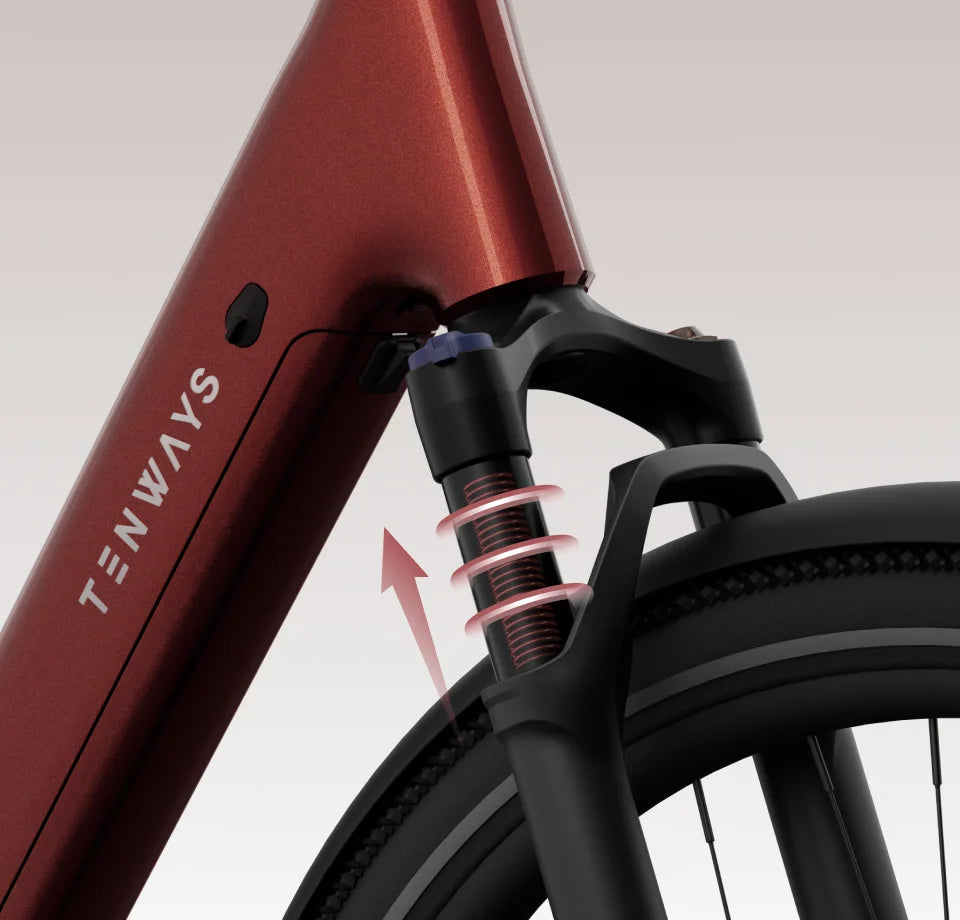

Front Suspension Fork

Absorbs any shocks for smooth, stable rides on uneven terrain.

Quality in the Details

1

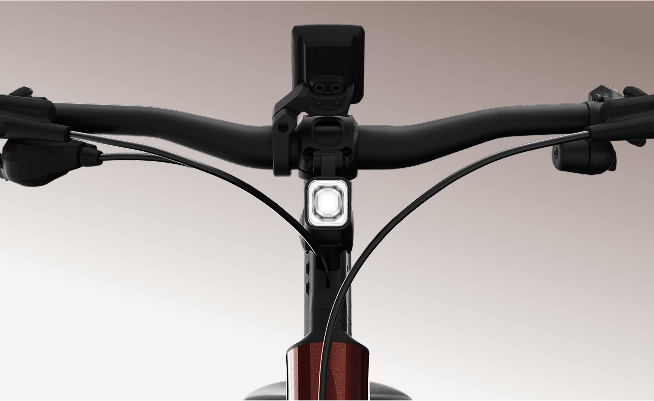

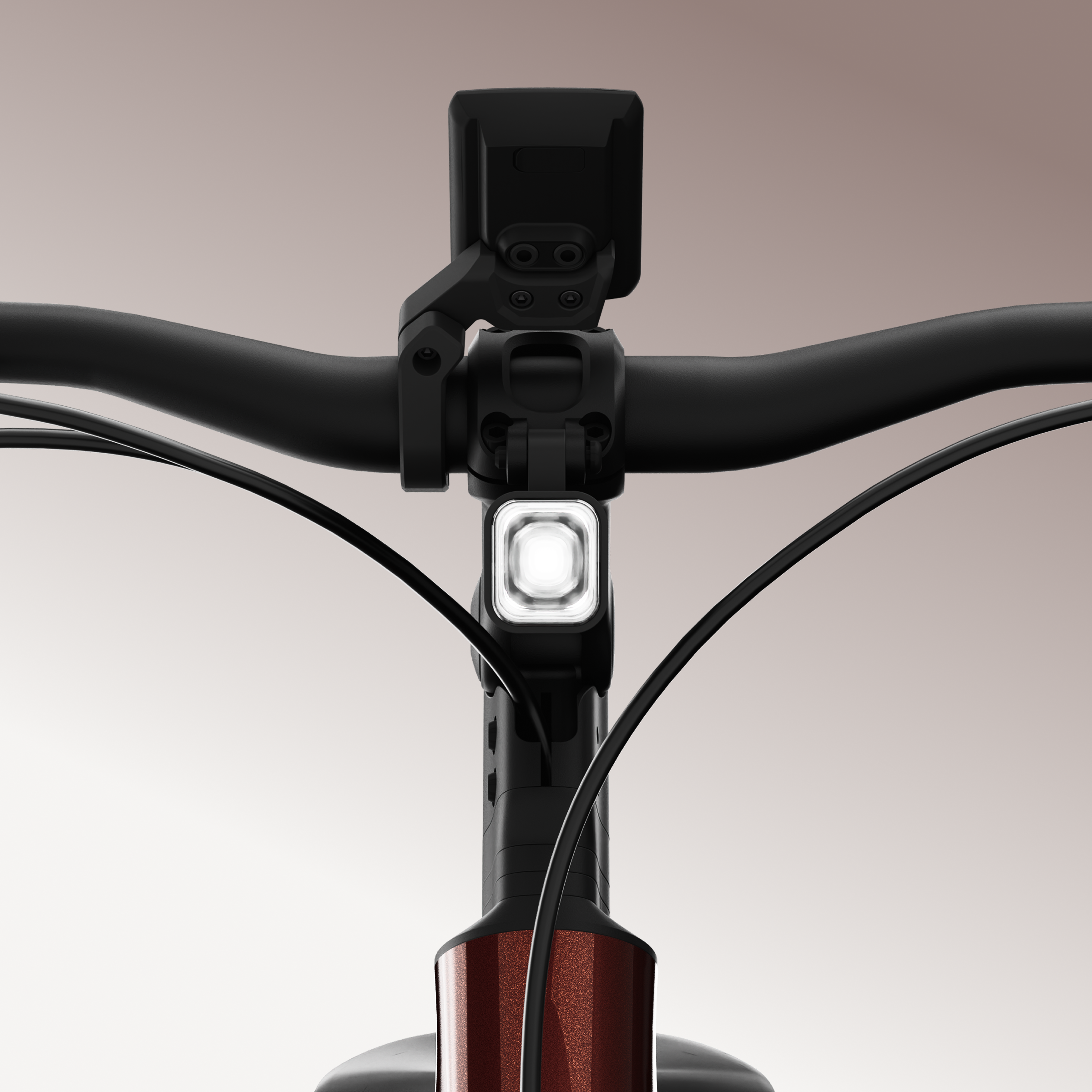

60 Lux Front Light

StVZO compliant for safe and confident road visibility.

2

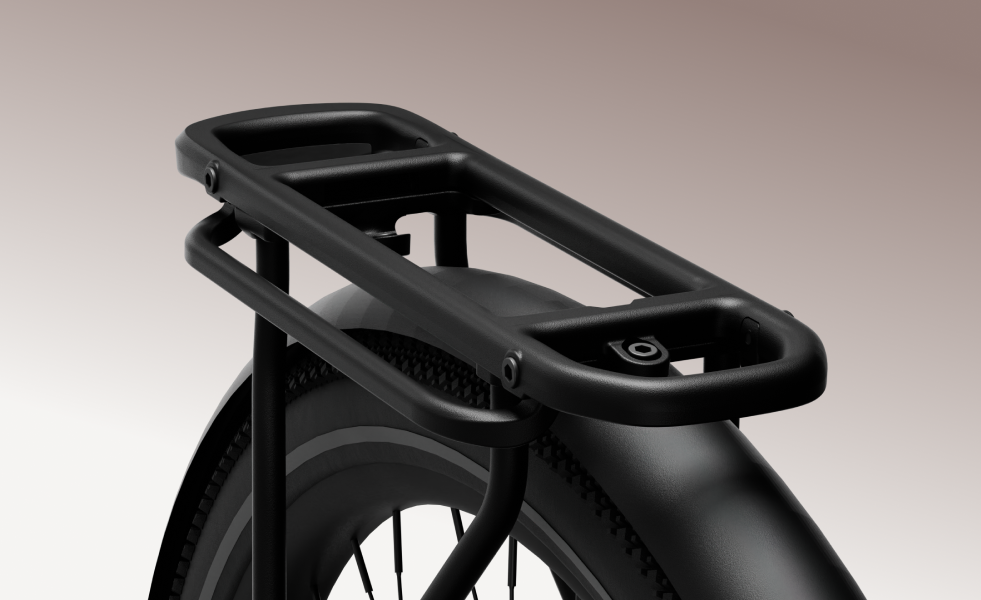

Rear Carrier

Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.

3

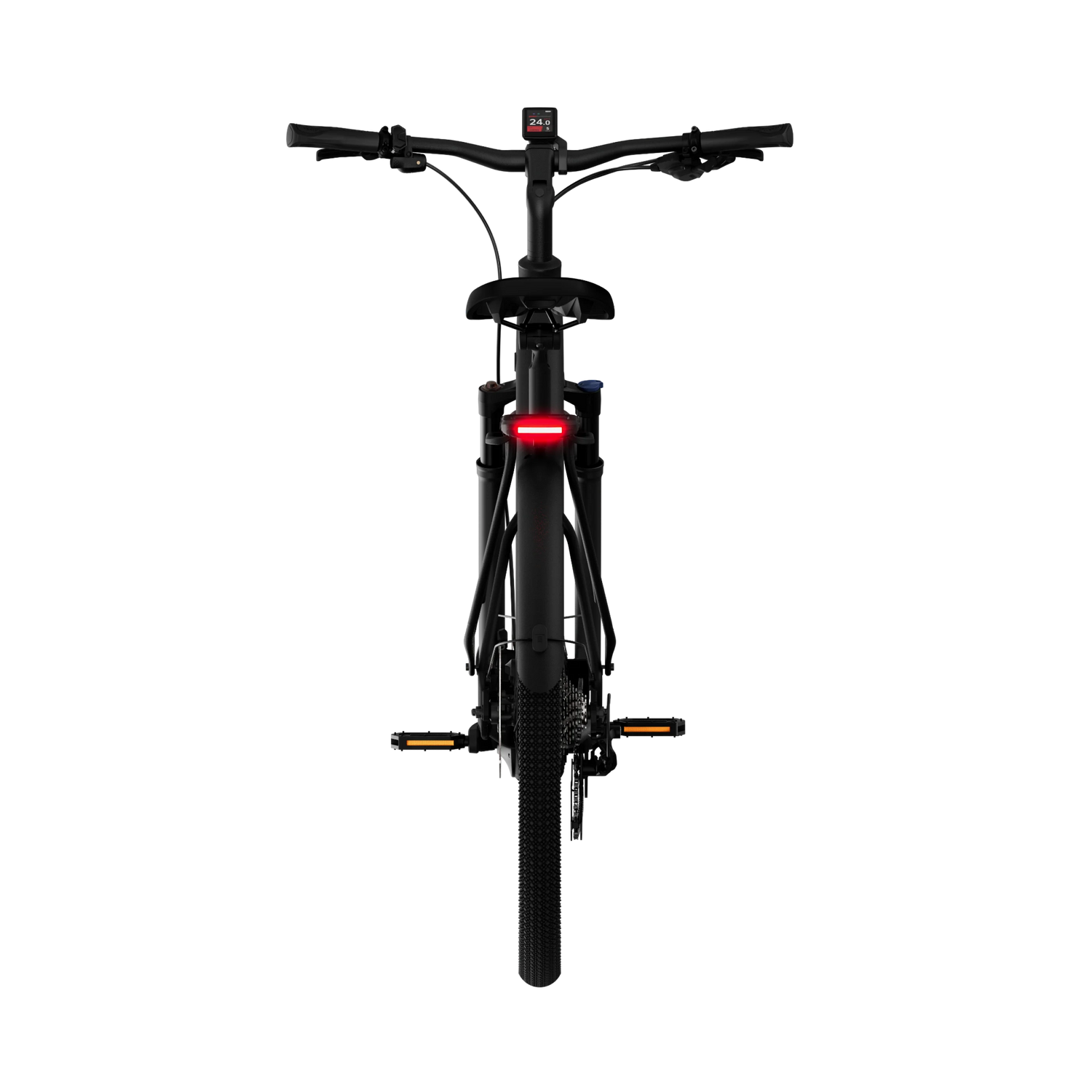

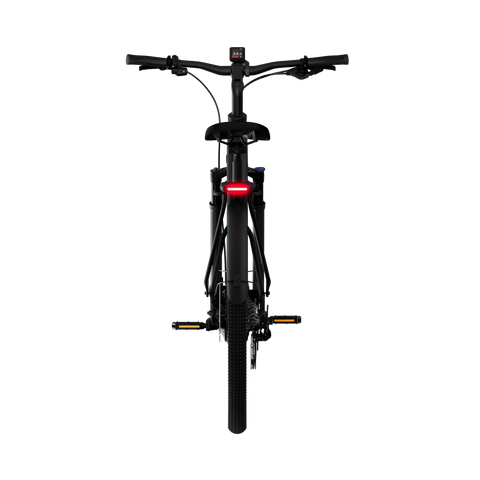

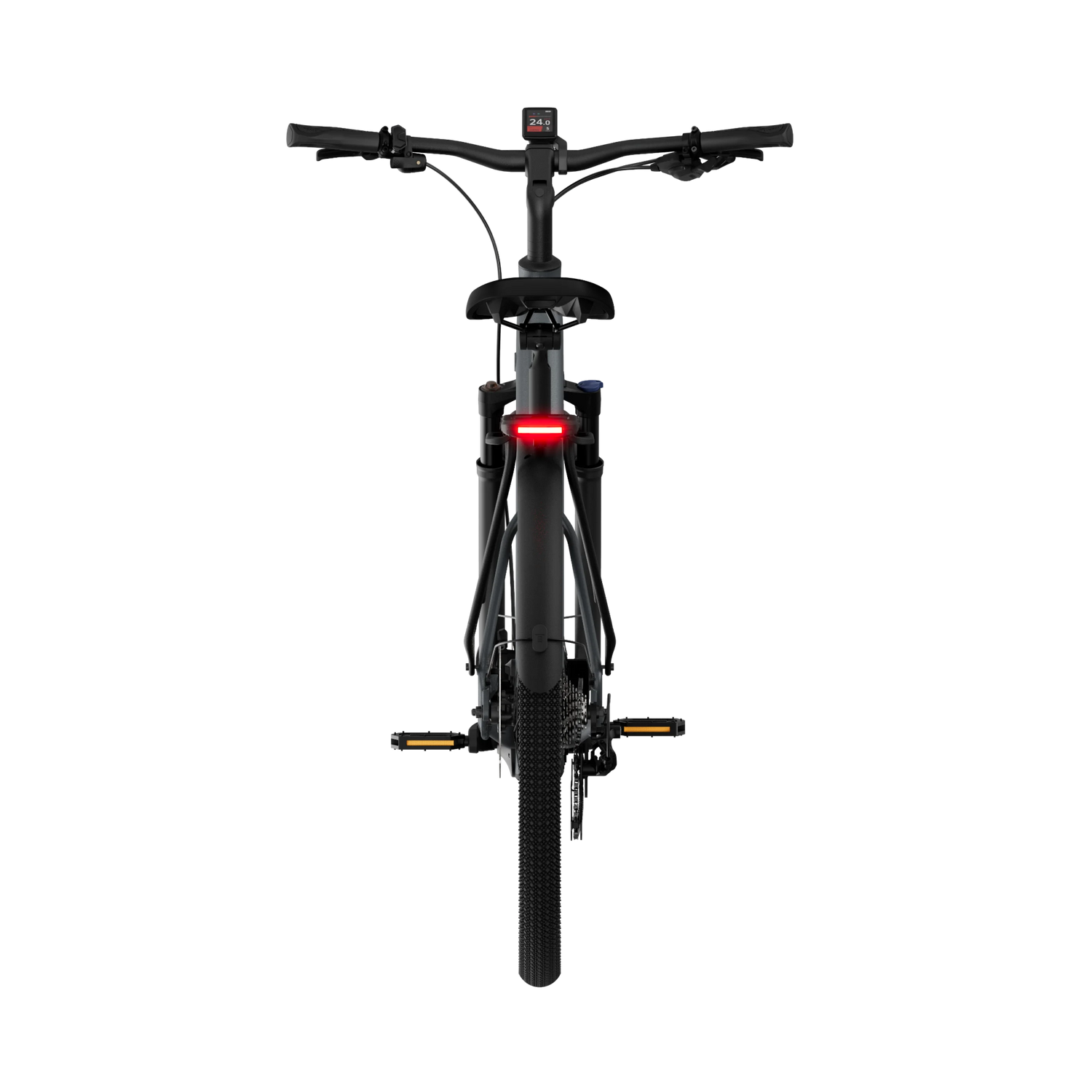

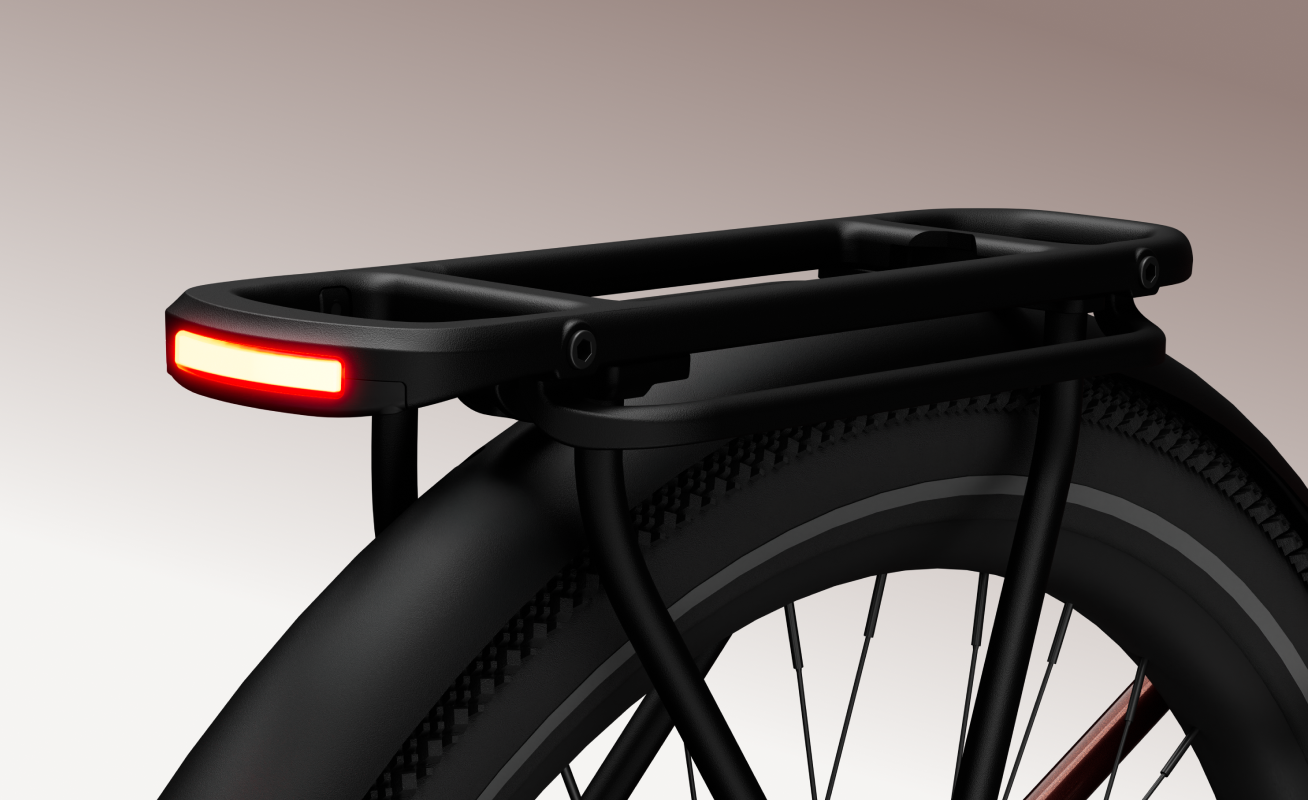

Integrated Rear Light

Enhanced visibility and safety with maximized convenience.

4

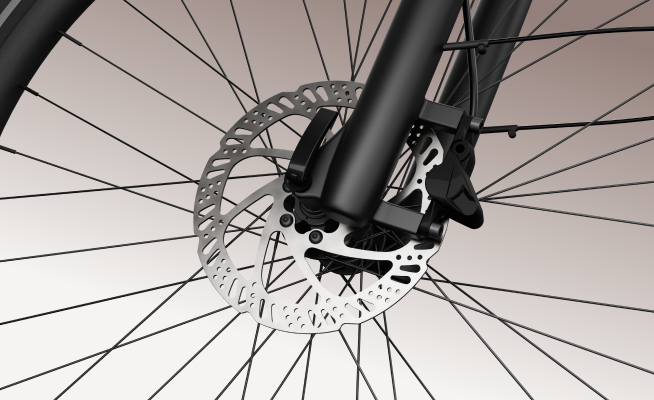

Hydraulic Disc Brakes

Exceptional stopping power and stability for reliable braking in all weather conditions.

Quality in the Details

Designed around you

Quality in the Details

60 Lux Front Light

StVZO compliant for safe and confident road visibility.

Rear Carrier

Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.

Integrated Rear Light

Enhanced visibility and safety with maximized convenience.

Hydraulic Disc Brakes

Exceptional stopping power and stability for reliable braking in all weather conditions.

Live Data Dashboard

Easy Navigation

Integrated Help Center

Live Data Dashboard

Easy Navigation

Integrated Help Center

For Commuting and Weekend Fun

Urban Exploration Set Free

From €2.199

ELECTRONIC

Motor

TENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque)
Controller

Integrated Controller of the Mid-drive Motor
Sensor

Integrated Torque Sensor for the Mid-drive Motor
Display

DIGIWISE BC240+K 31 TFT color Display
Battery

561.6 Wh (36 V, 15.6 Ah ) Lithium-ion Battery
Lights

StVZO-compliant

PERFORMANCE

Top Speed

25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range

Up to 100 km*
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability

Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.

COMPONENTS

Frame

Alloy Frame
Crankset

Alloy 170mm Powder paint black
Wheels

ALLOY DB RIM AND ALLOY BEARING HUB
Drivetrain

SHIMANO CUES 9-SP
Brake

SHIMANO Hydraulic Disc Brakes
Tires

KENDA 700*50C 60TPI EPS/Reflective line
Front Fork

ZOOM 188NS-700C-HLO SUSPENSION FORK
Bottom Bracket

BAFANG
Weight*

Net weight: 24.85 kg
(excluding all accessories) 
Full weight: 27.4 kg
(including all accessories) 
Permissible Max. Weight: 145 kg (including the bike's own weight)
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

GEOMETRY

SIZE (mm)	One Size
A Effective top tube	618
B Seat tube length	432
C Head tube	174
D Steering angle	69.6
E Seat tube angle	70.9
F Chainstay	481
G Wheelbase	1145
H Standover	577.4

*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.

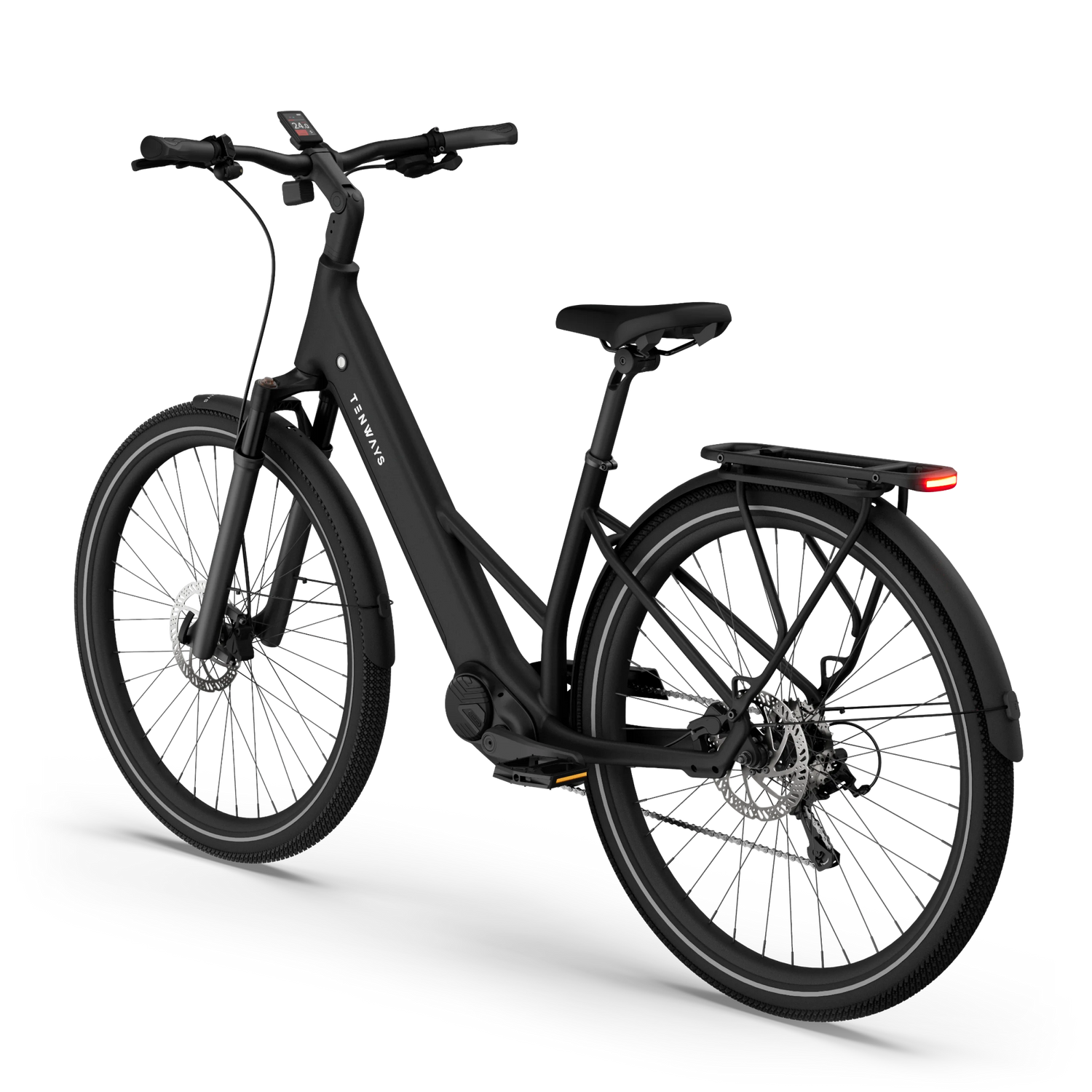

TENWAYS AGO AIR

A stylish trekking e-bike that combines sleek design with rugged versatility.
