- Extra-large Cargo Box
- EV-style Sidelights
- 960 Wh Portable Battery
- Gates CDX Carbon Belt
- Enviolo Stepless Shifting Hub
- Mid-drive Motor
- Versatile Cargo Functions
- Comfortable Set-up
Designed for
your most precious moments
With an extra-large cargo box and a host of ergonomic features, it is the best travel companion to carry your little ones through life's little adventures.
Flagship Design
-

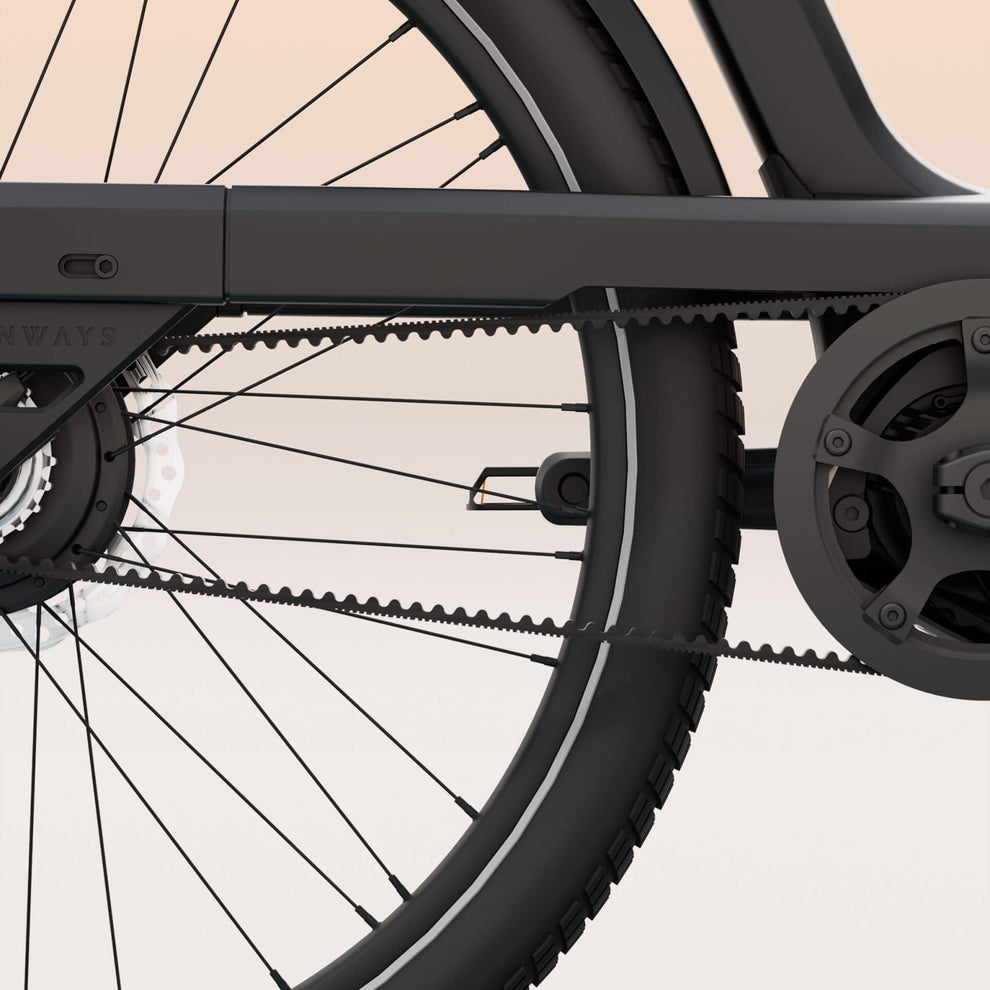

Gates CDX Carbon BeltExtremely durable component, that’s low-maintenance and hassle-free. Plus, you won’t have any worries about getting your clothes dirty.
-

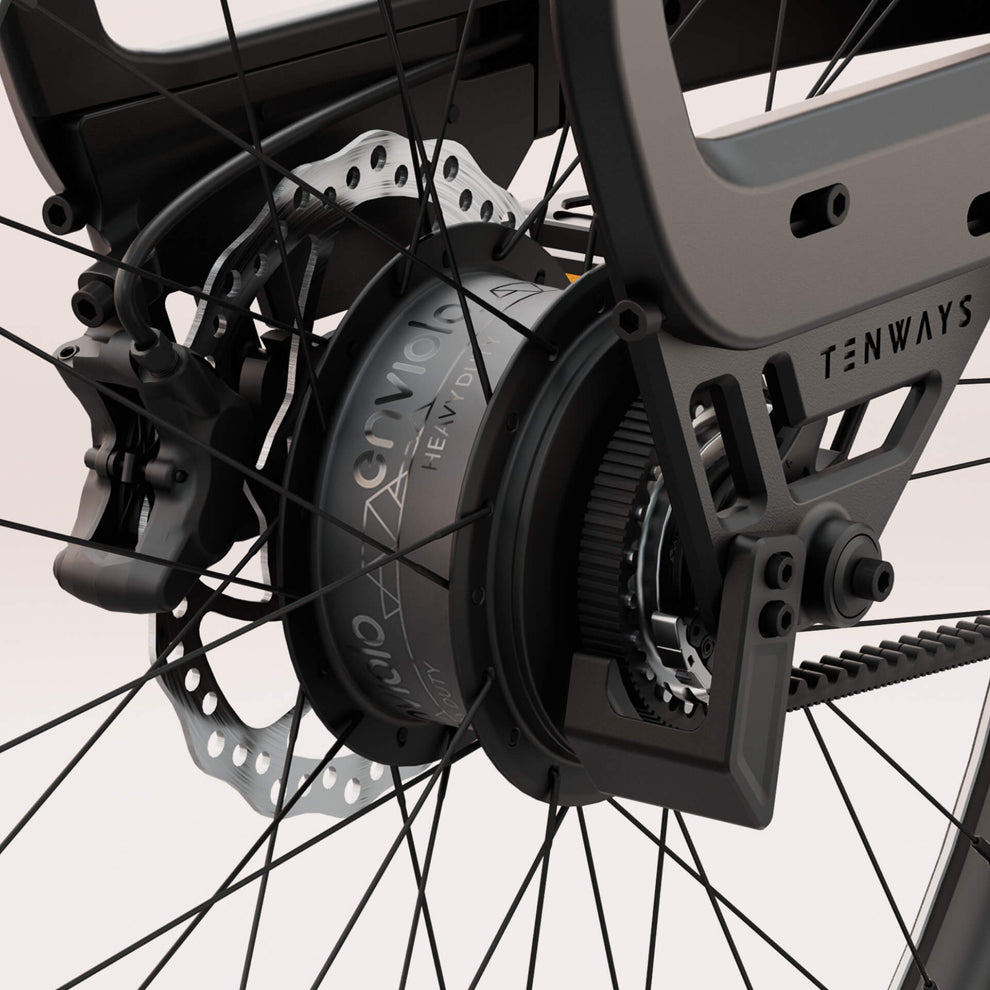

Enviolo Stepless Shifting HubSuper user-friendly system that enables gearing to be shifted even when your bike is at a standstill, enabling CARGO ONE to always be in the right gear.
-
Heavy-duty Mid-drive MotorTiny size packs a big punch. The exceptionally powerful mid-drive motor can handle fully loaded journeys with ease.
-
Gates CDX Carbon BeltExtremely durable component, that’s low-maintenance and hassle-free. Plus, you won’t have any worries about getting your clothes dirty.
-
Enviolo Stepless Shifting HubSuper user-friendly system that enables gearing to be shifted even when your bike is at a standstill, enabling CARGO ONE to always be in the right gear.
-
Heavy-duty Mid-drive MotorTiny size packs a big punch. The exceptionally powerful mid-drive motor can handle fully loaded journeys with ease.
The beauty of life is in the details
Ideal for helping parents manage daily life while feeling great. This eye-catcher is built with attention to the finest details.
No wires or bulky components in view, just clean lines and sophisticated design principles for a modern, polished appearance.
2 different colored box covers to match the style of the driver and passengers. In addition to the standard black color, an extra green cover is included with your order.
Extremely durable, maintenance and stress-free, for long-lasting cycling pleasure.

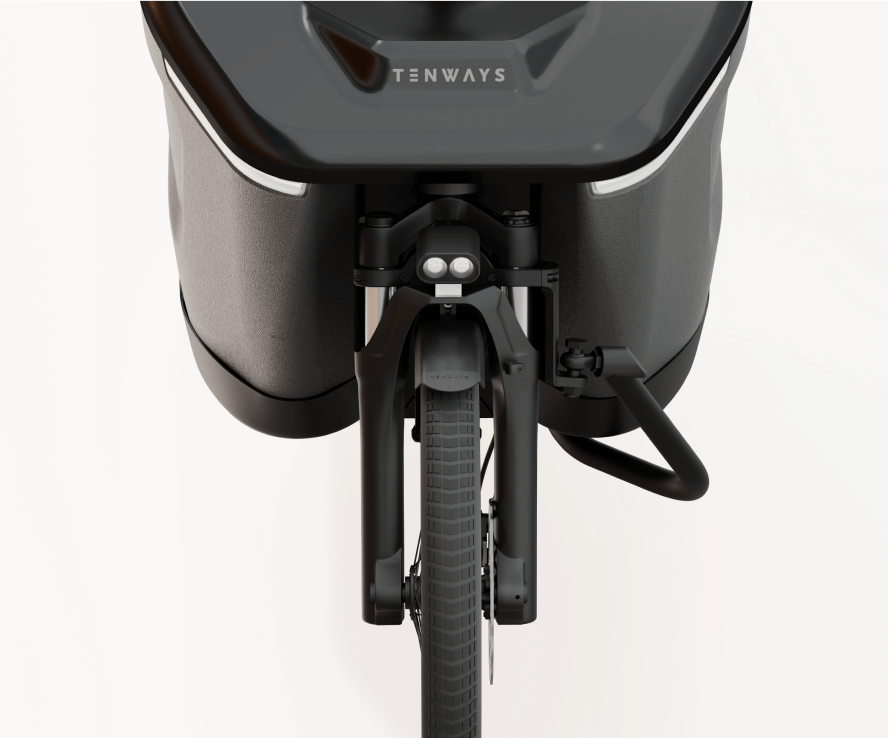

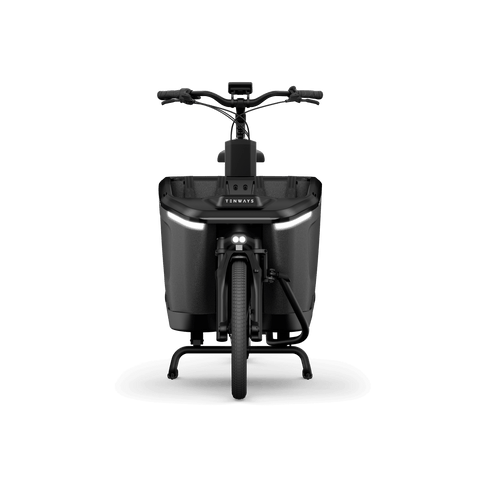

Sleek and distinctive EV-style lights to protect and set the tone for fun, stylish rides.
A sleek frame design for frequent and easy hopping on and off the bike in any outfit.
A soothing sound that calmly alerts pedestrians without disturbing your happy passengers.
Effortless gear shifting, allowing you to simply enjoy the ride.
Effortless gear shifting, allowing you to simply enjoy the ride.
Super-reliable stopping power with minimal maintenance needed.

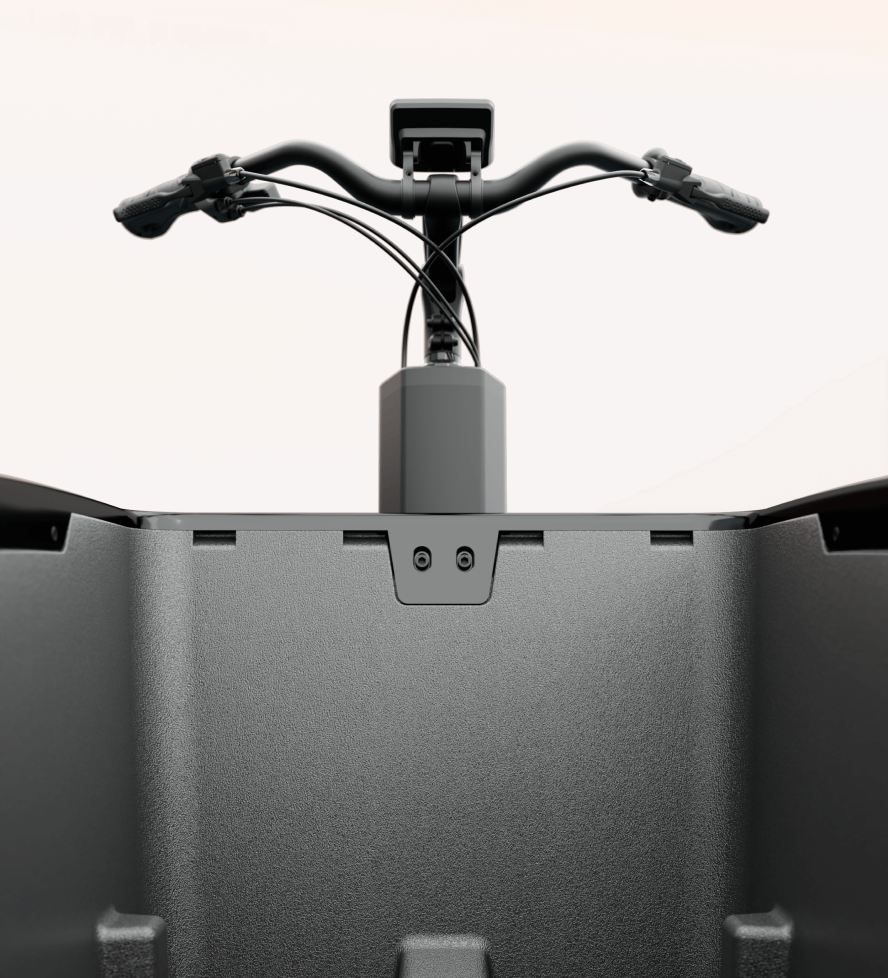

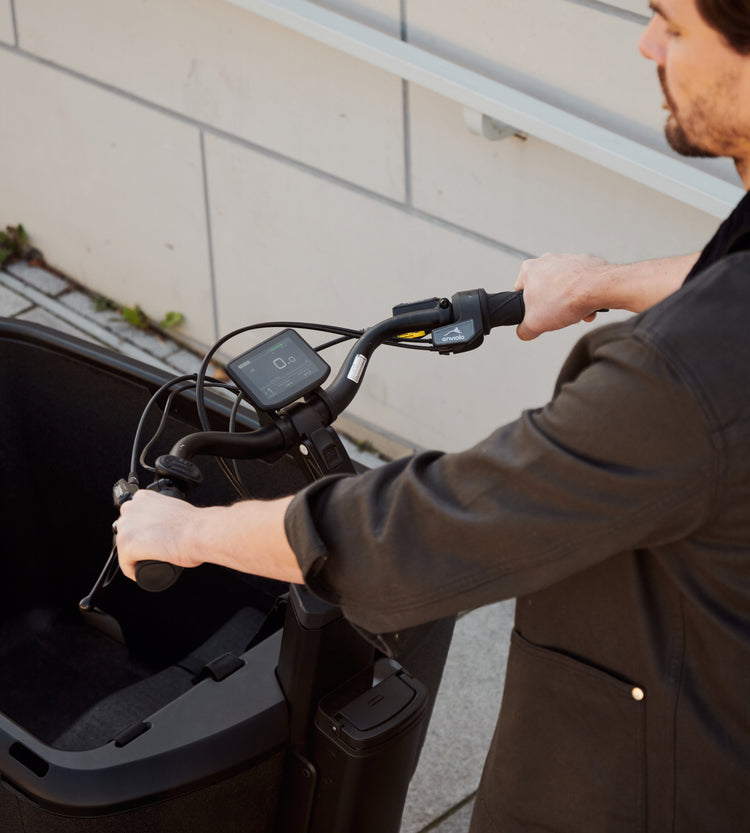

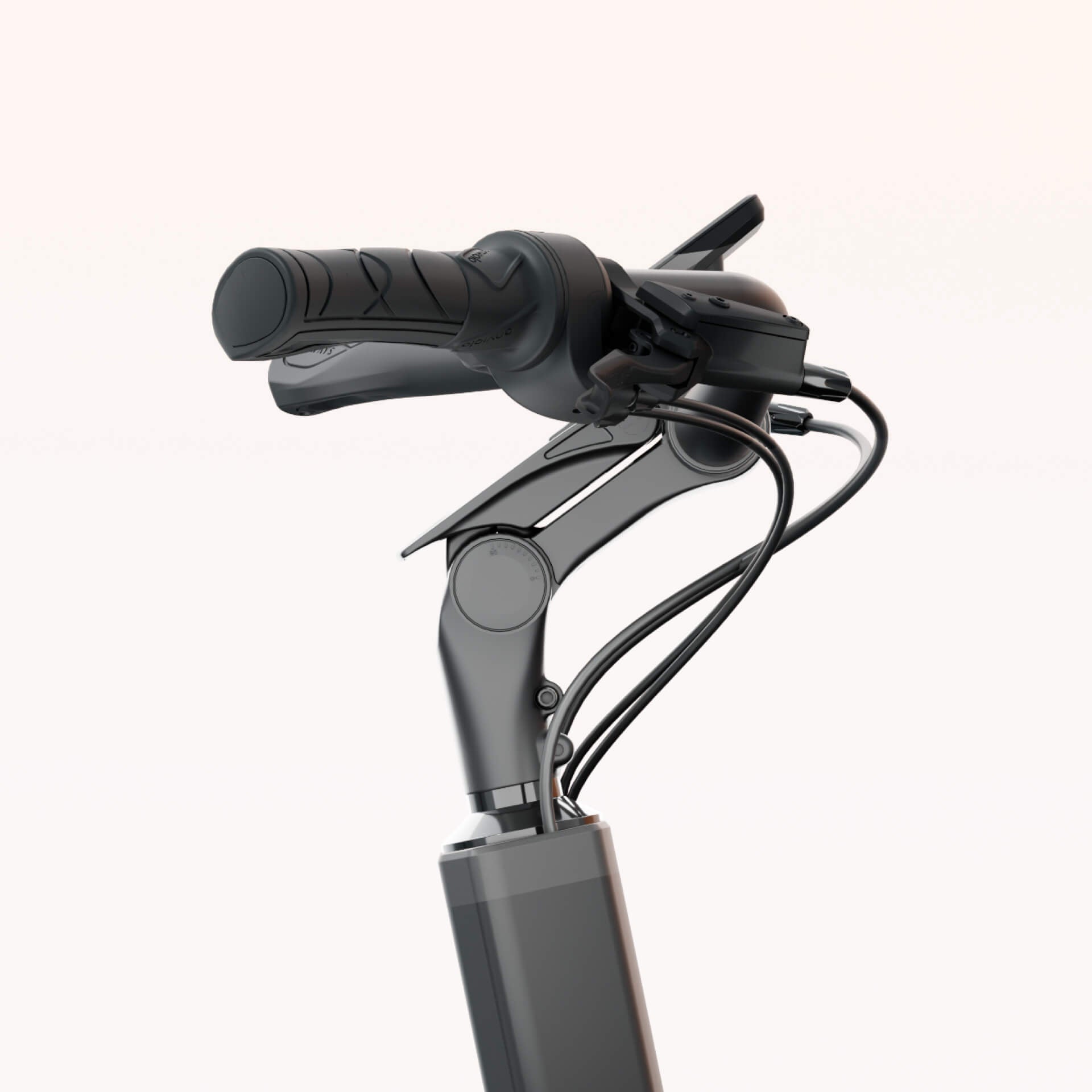

The height and angle of the handlebar can be switched up for optimized rider positioning.

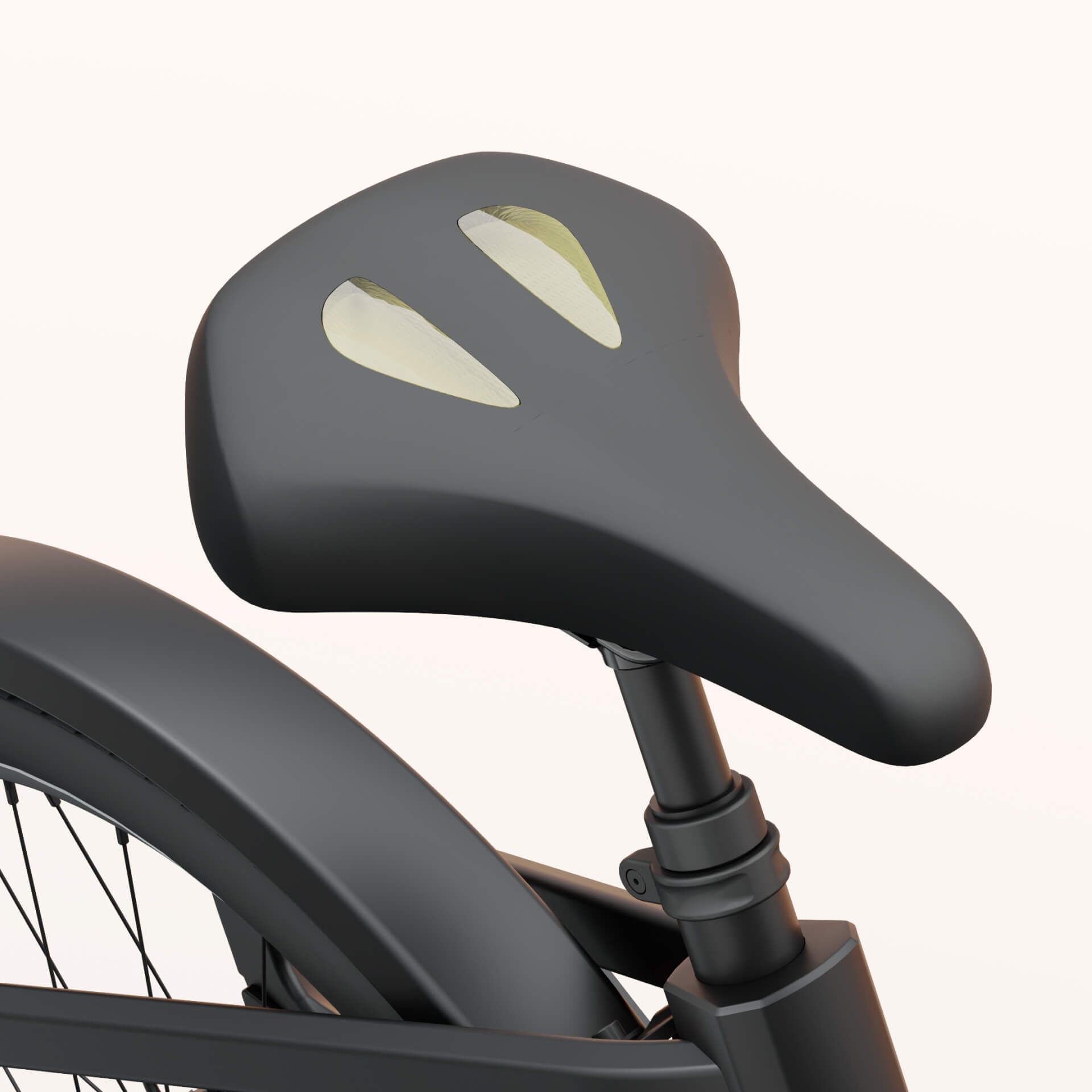

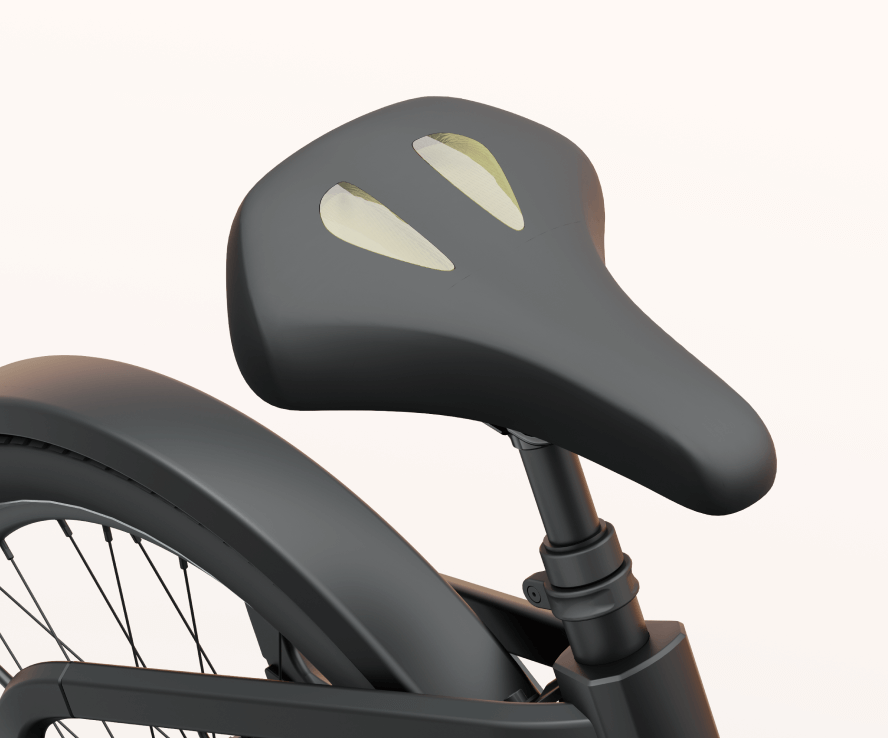

Royalgel™ technology gives cushioned comfort and minimized pressure.

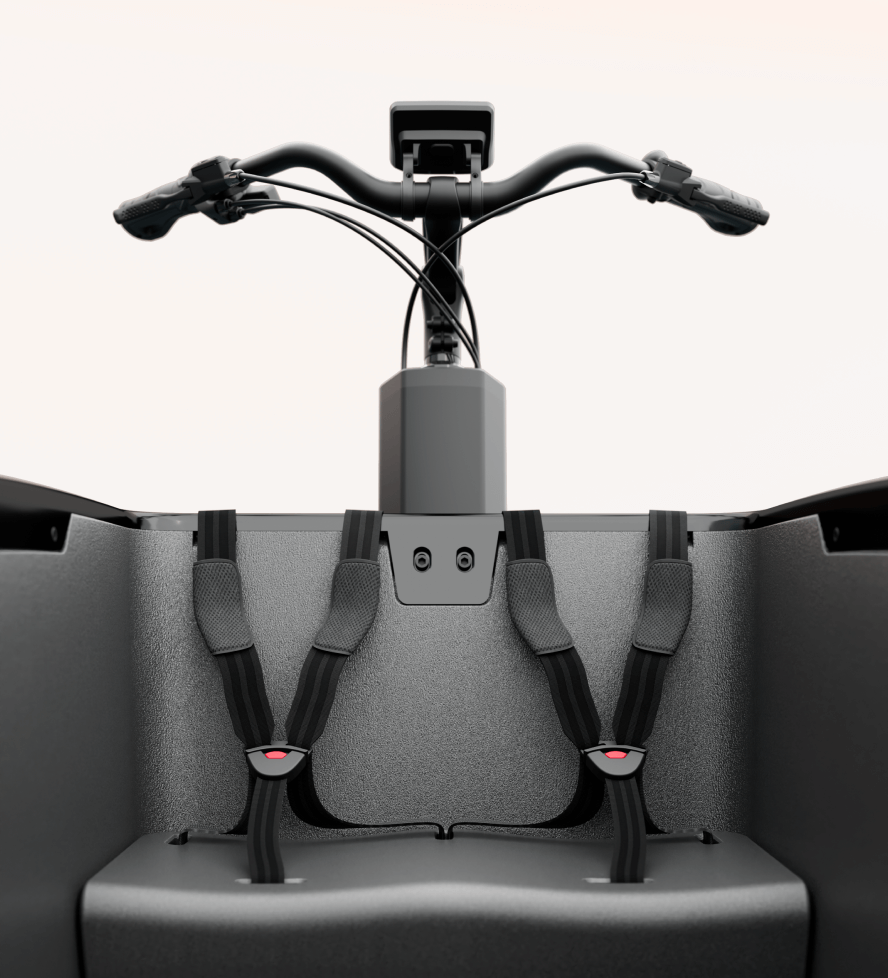

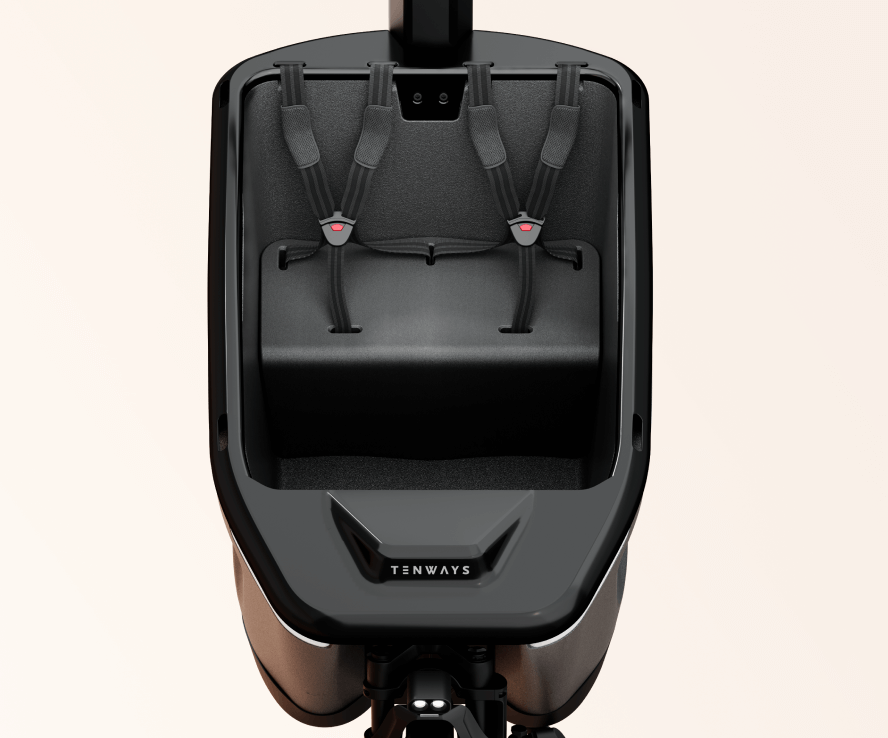

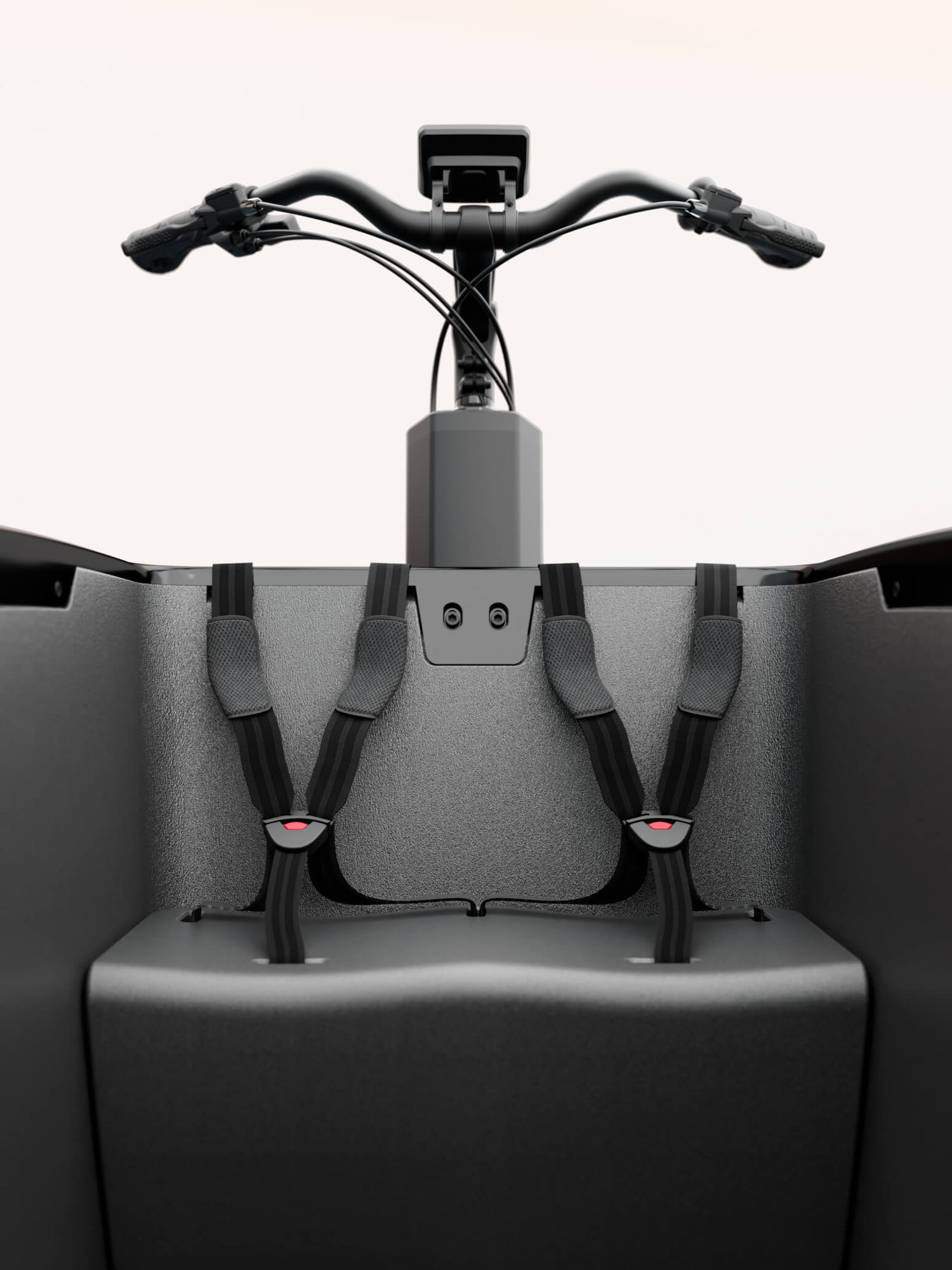

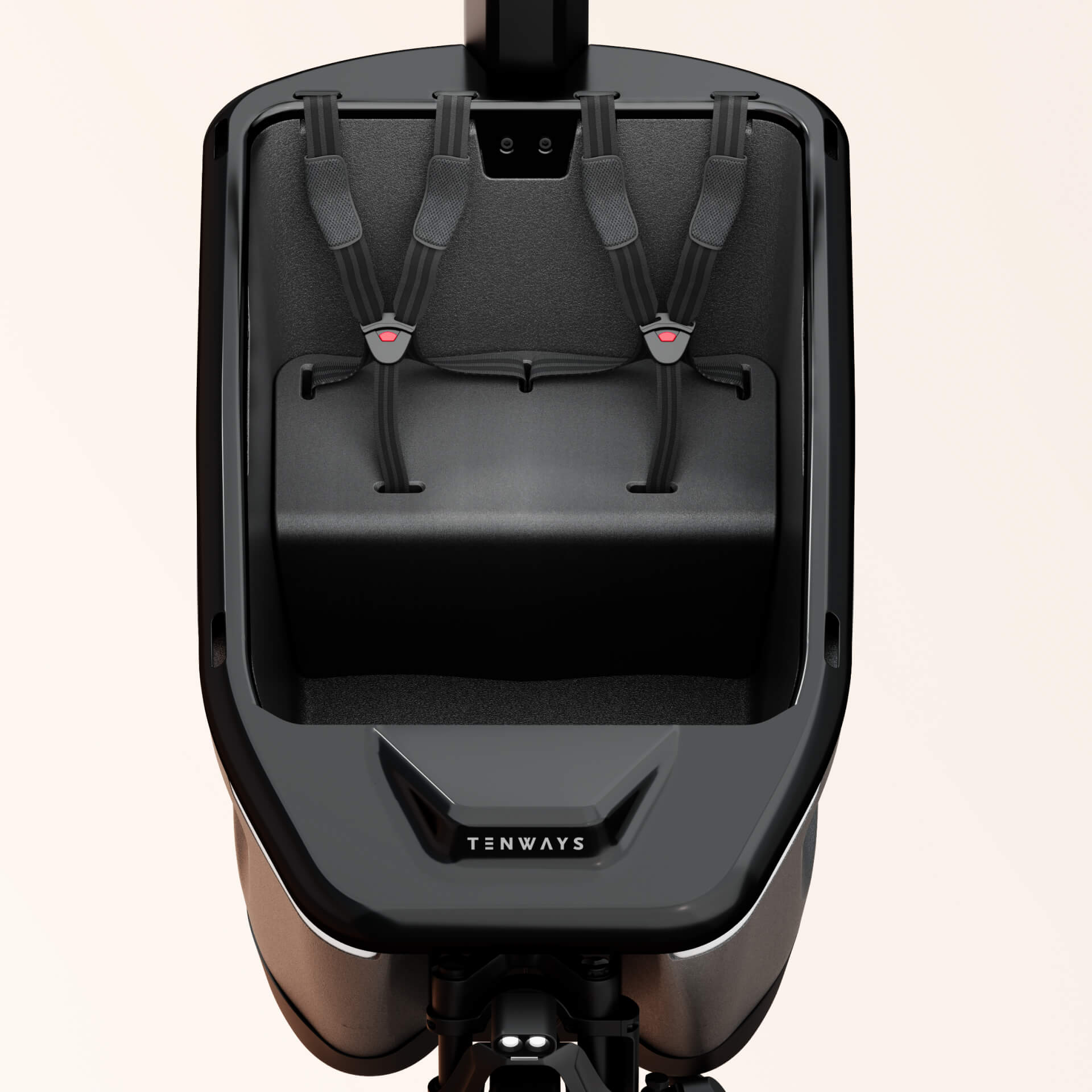

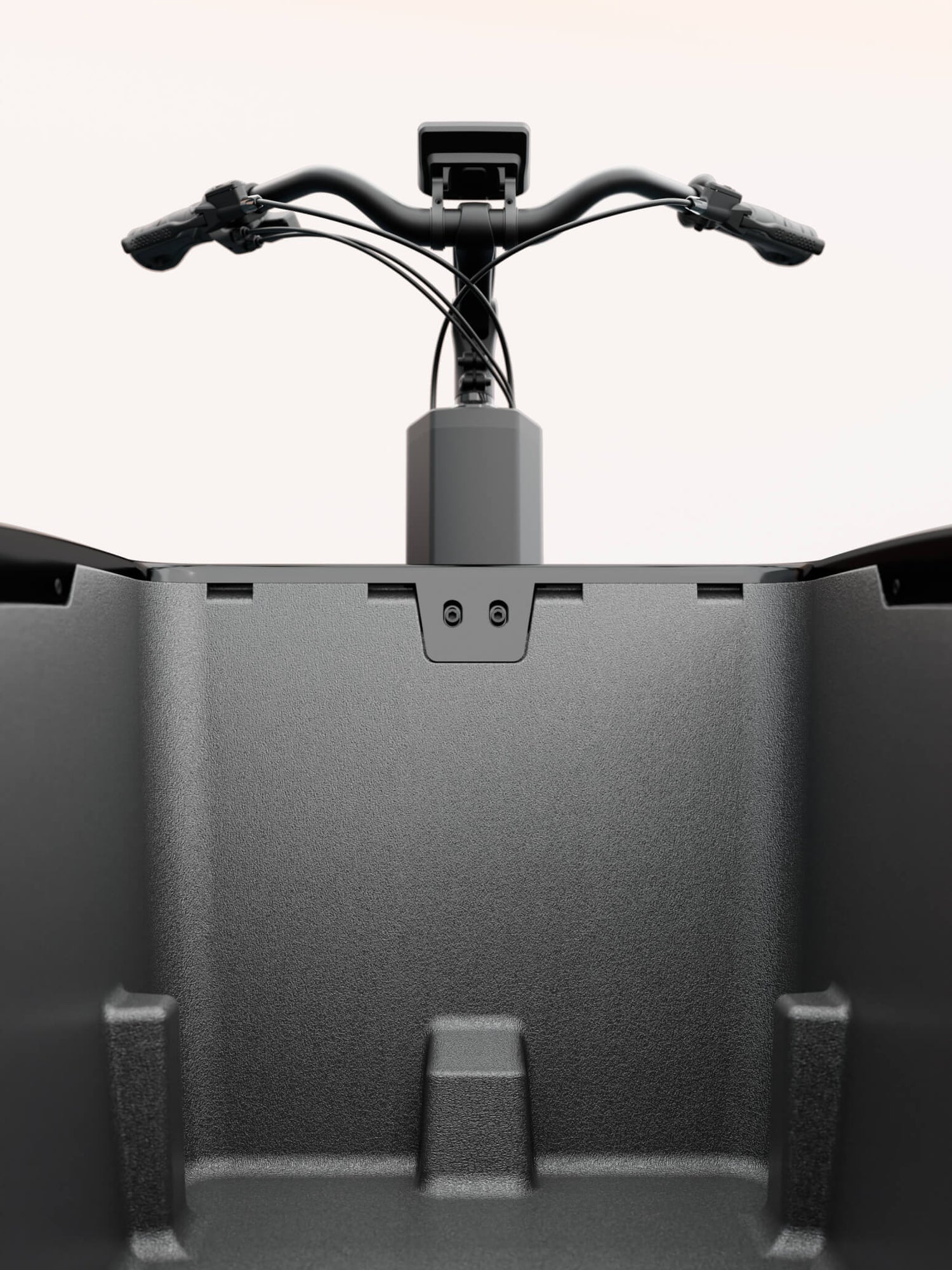

Spacious and safe for any load, 800-liter capacity cargo box comes with 2 sets of 5-point safety belts. Fully biodegradable and environmentally friendly.
An extra-large battery that is easy to carry. Comes with a built-in lock for added security.
High-performance power that beautifully transmits to smooth, confident urban rides.
Great for safe cruising on urban and light gravel terrain.
Ride Smart.
Ride Connected.
Connect with the TENWAYS app to record, track, navigate, and communicate. Your e-bike’s perfect companion, providing real-time, seamless data.

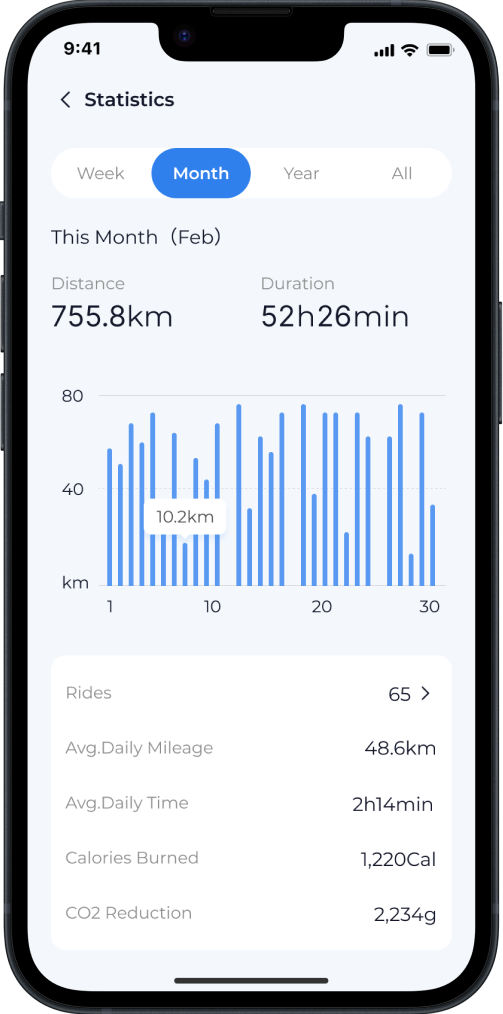

Connect with the TENWAYS App to record your rides in real time and track your stats.

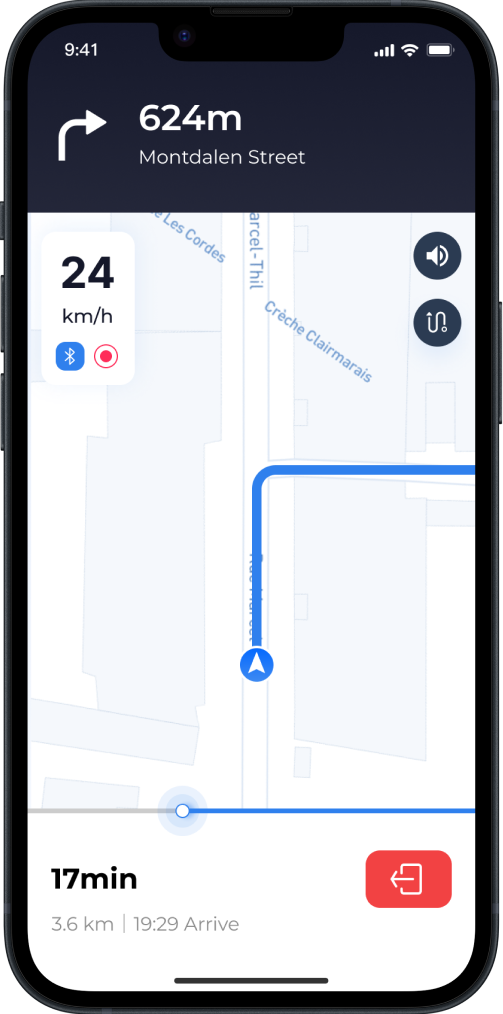

Cast directions straight to the integrated LCD display for seamless navigation.

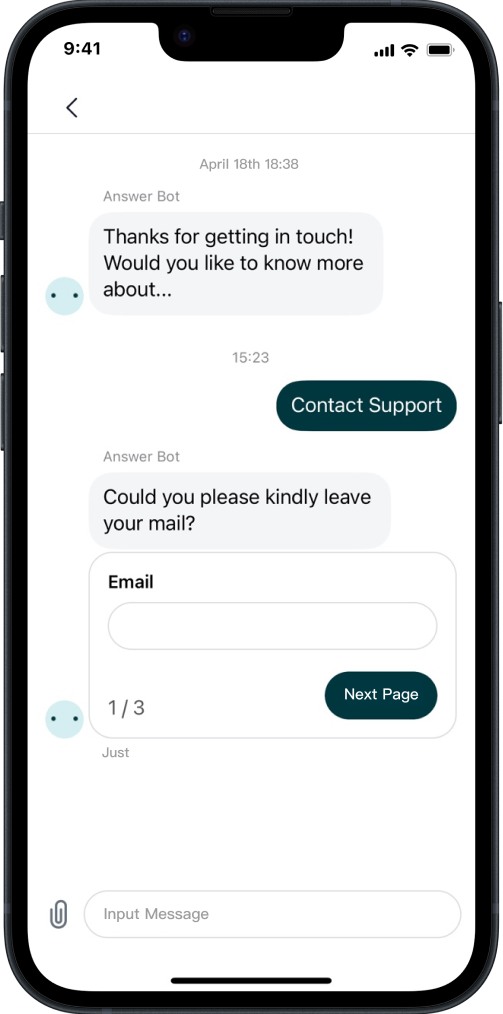

Communicate with our team directly through the integrated help center.
Ready to Ride on Delivery
The CARGO ONE will be delivered to you fully assembled for added convenience.
Electronics
Electronics
-
Motor*
Bafang M600 Cargo (100 Nm Torque)
-
Sensor
Integrated Torque Sensor for the Mid-drive Motor
-
Controller
Integrated Controller of the Mid-drive Motor
-
Display
TFT LCD Color Display
-
Battery
960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells
Performance
Performance
-
Top Speed*
25 km/h
-
Range*
Up to 90 km
*Results of single battery charge range tests with an empty cargo box. Actual performance will vary depending on load, PAS levels, temperature, road conditions, rider's weight, etc.
-
Climbing Ability
Suitable for Climbing Slopes
*The actual performance would depend on the rider's physical strength.
Component
Component
-
Frame
6061 Aluminium Frame
-
Crankset
Aluminium Alloy Crankset
-
Wheels
6061 Aluminium Rims
-
Rear Derailleur
Enviolo Stepless Shifting Hub
-
Drivetrain
Gates CDX Carbon Belt
-
Front Fork
SR SUNTOUR Suspension Front Fork
-
Tires
SCHWALBE 20''*2.15/26''*2.15 Puncture-proof Tires
-
Brake
Tektro Four-piston Hydraulic Disc Brakes
-
Bottom Bracket
Fully-concealed Bottom Bracket
-
Saddle
Selle Royal Saddle
-
Weight*
Net weight: 56 kg (excluding all accessories)
Full weight: 58 kg (including all accessories)
Permissible Max. Weight: 250 kg*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

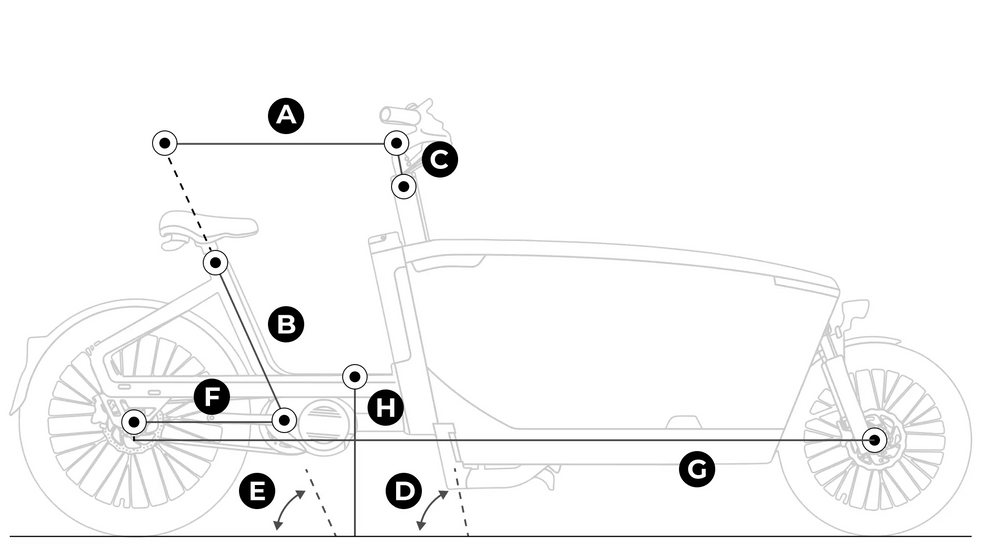

Geometry
One Size (mm) | SYMBOL | |
Effective top tube | A | 653.5 |
Seat tube length | B | 485 |
Head tube | C | 85 |
Steering angle | D | 64.4 |
Seat tube angle | E | 69.1 |
Chainstay | F | 436 |
Wheelbase | G | 2030 |
Standover | H | 443 |
What are the dimensions of the cargo bike?
Cargo bike Size: 2655.9*1304.8*685.9 mm (L*H*W)
Cargo box size: 1125.5*547*562.5 mm (L*H*W)
CARGO ONE seat size: 532*284*247 mm (L*H*W)
How much does the cargo bike weigh and how much can it carry?
The cargo bike weighs 56kg including the battery, the maximum load capacity (including the cargo box’s load and the rider’s weight) is 250kg, and its cargo box can take a load of up to 60kg.
How far can I cycle on a single charge?
When the cargo box is empty, the range is 60km-90km*.
Is the cargo bike difficult to ride when it is loaded up?
Thanks to its low center of gravity and intricately designed craftwork, CARGO ONE feels agile and smooth when its front load is empty, and even when it is fully loaded, riding will feel just as effortless!
Do I need to assemble the cargo bike myself?
No, the bike will already be fully assembled when delivered, and you are ready to take a test ride as soon as you receive it.
Does the CARGO ONE come with a frame lock?
No, the CARGO ONE does not come with a frame lock. You would have to buy it separately from a shop.
