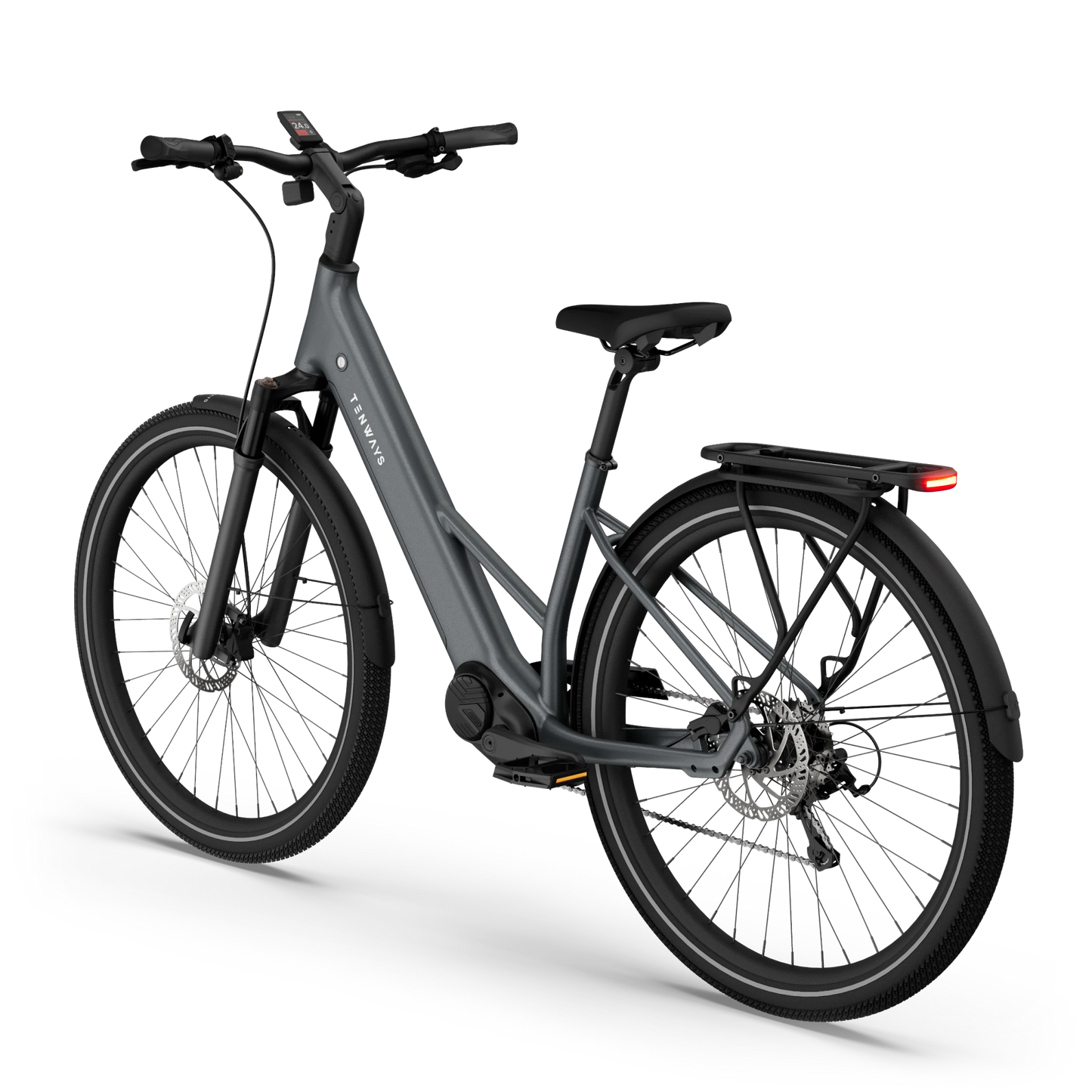

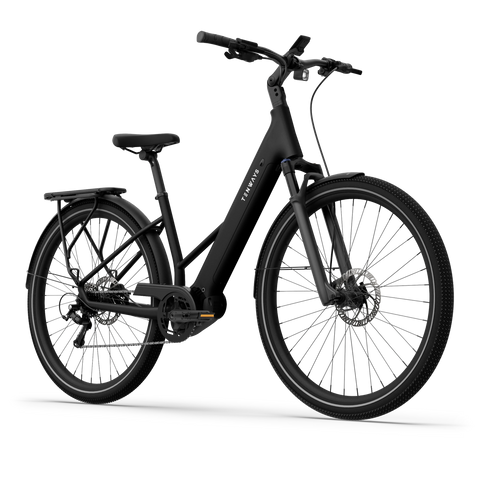

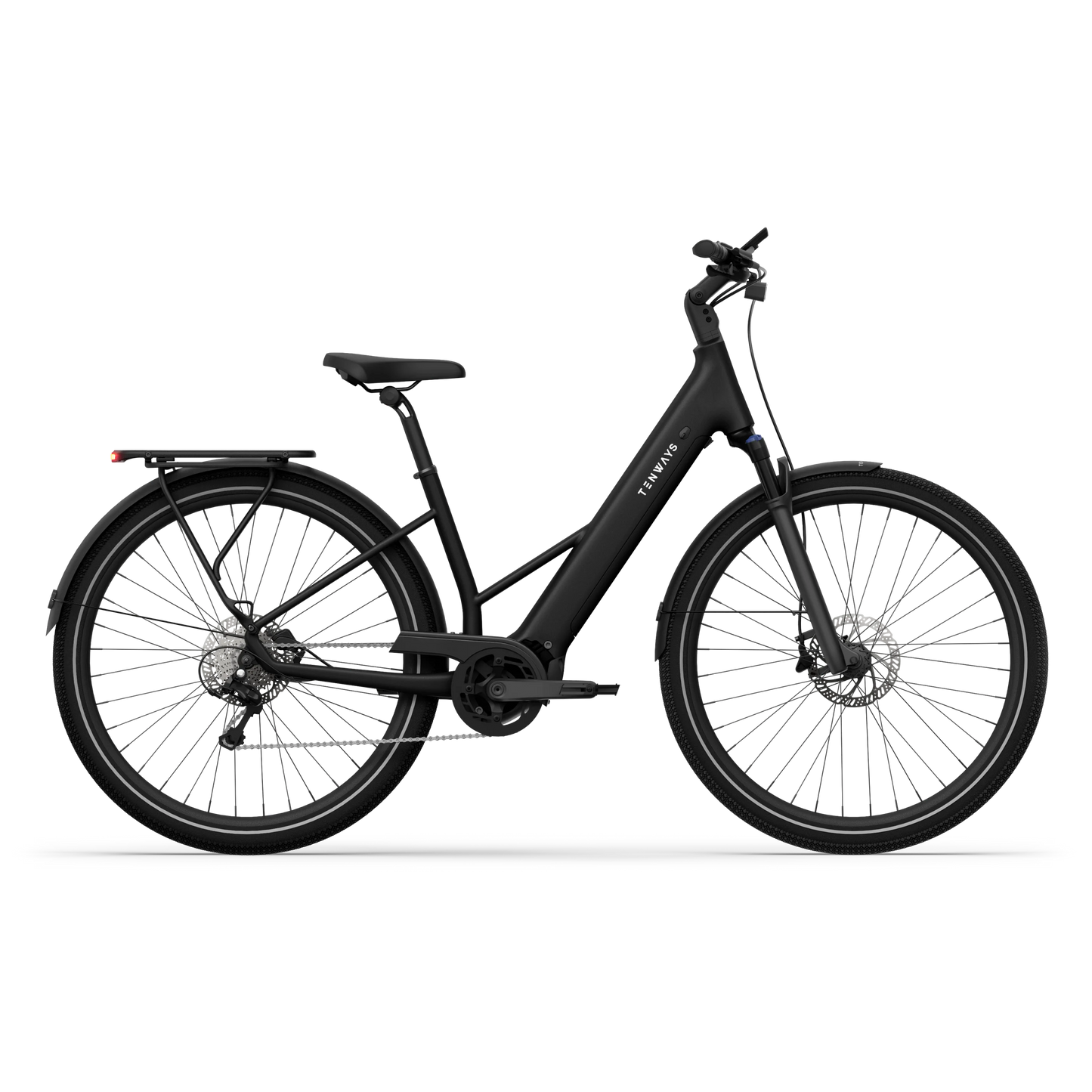

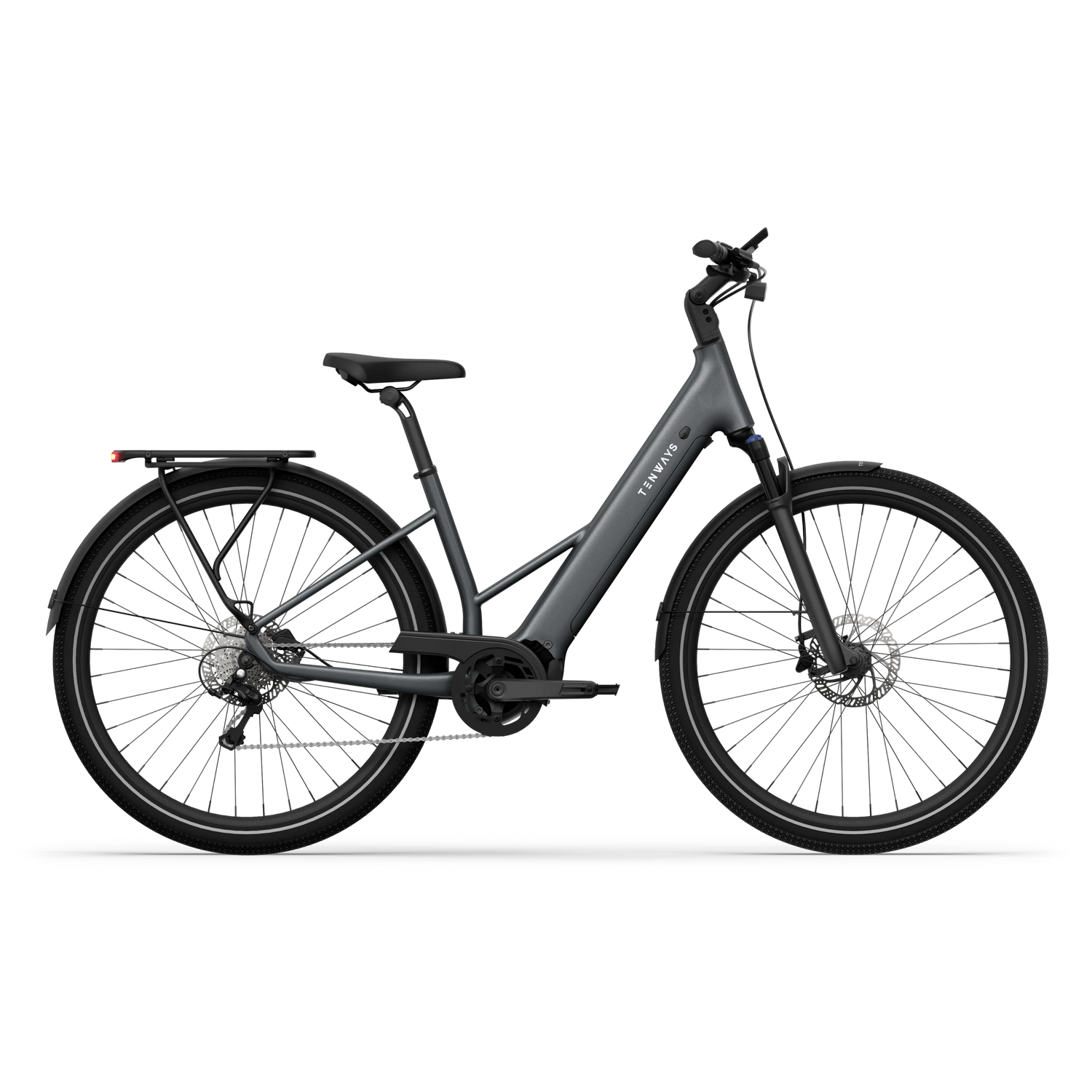

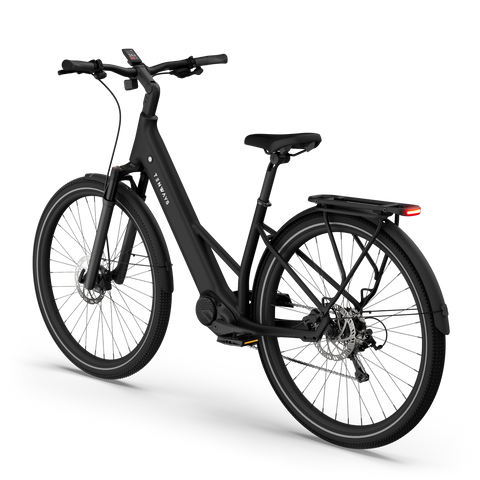

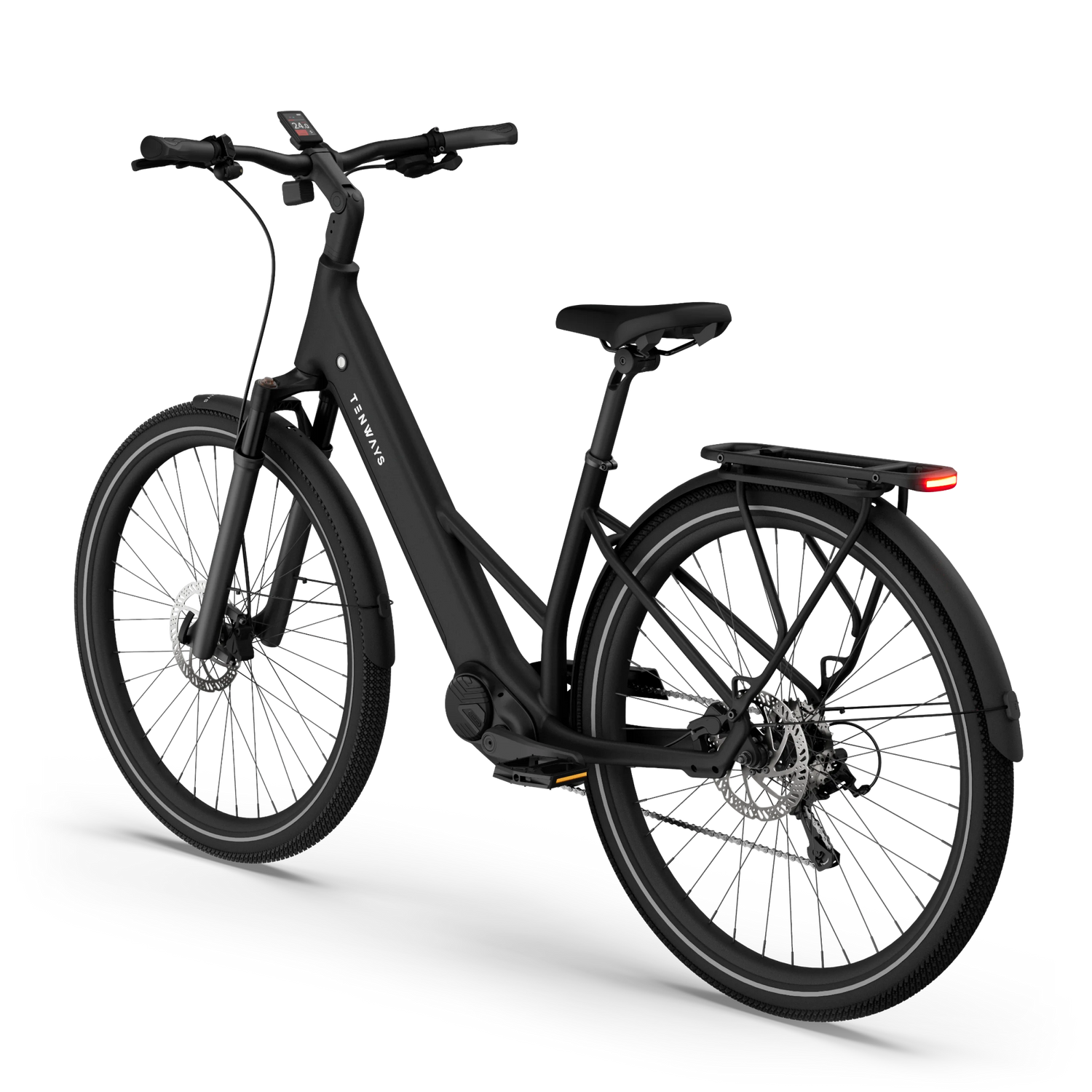

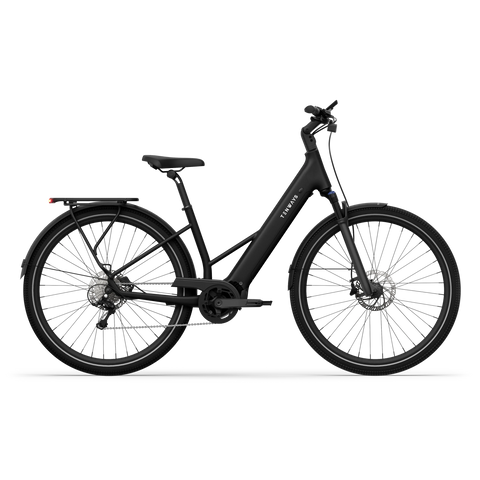

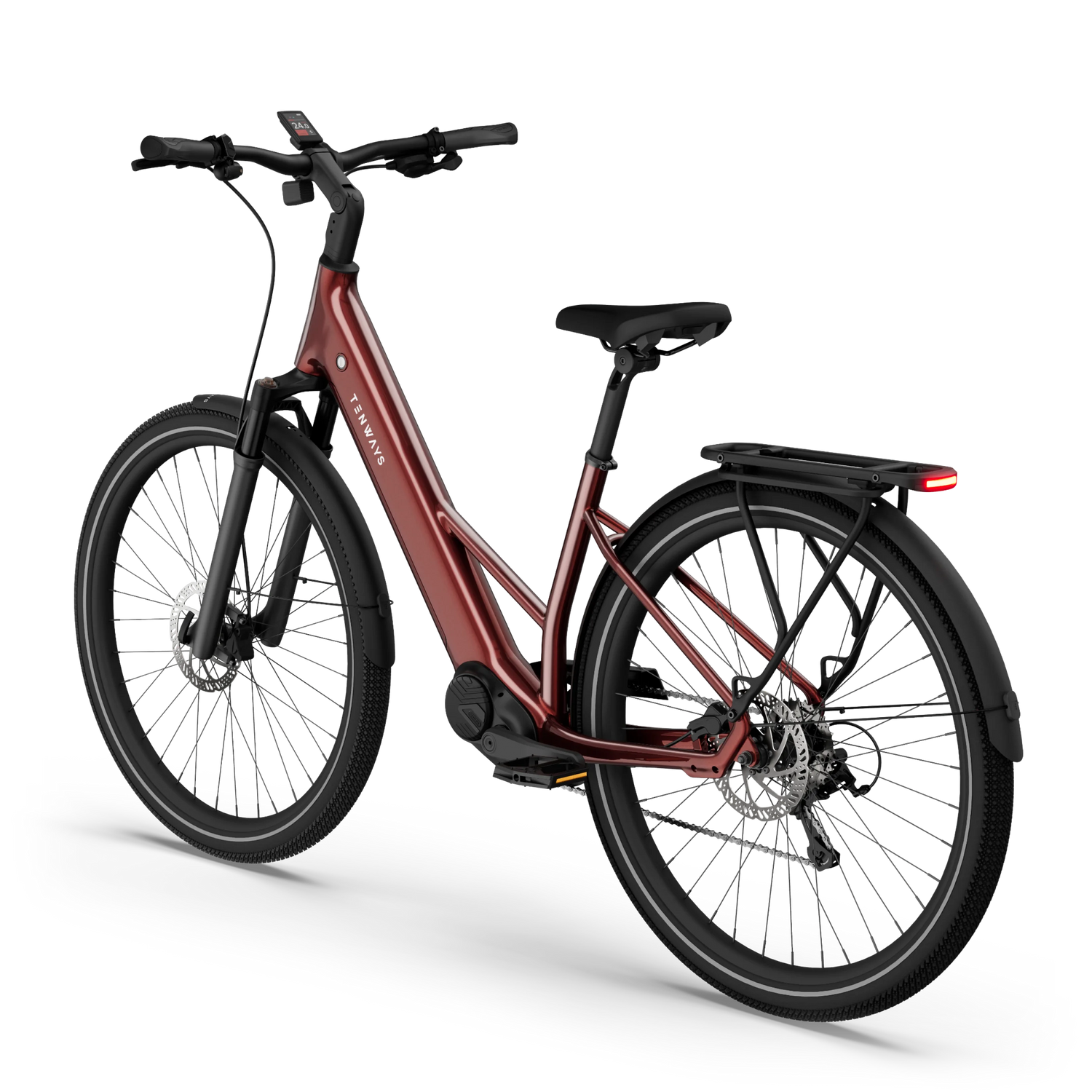

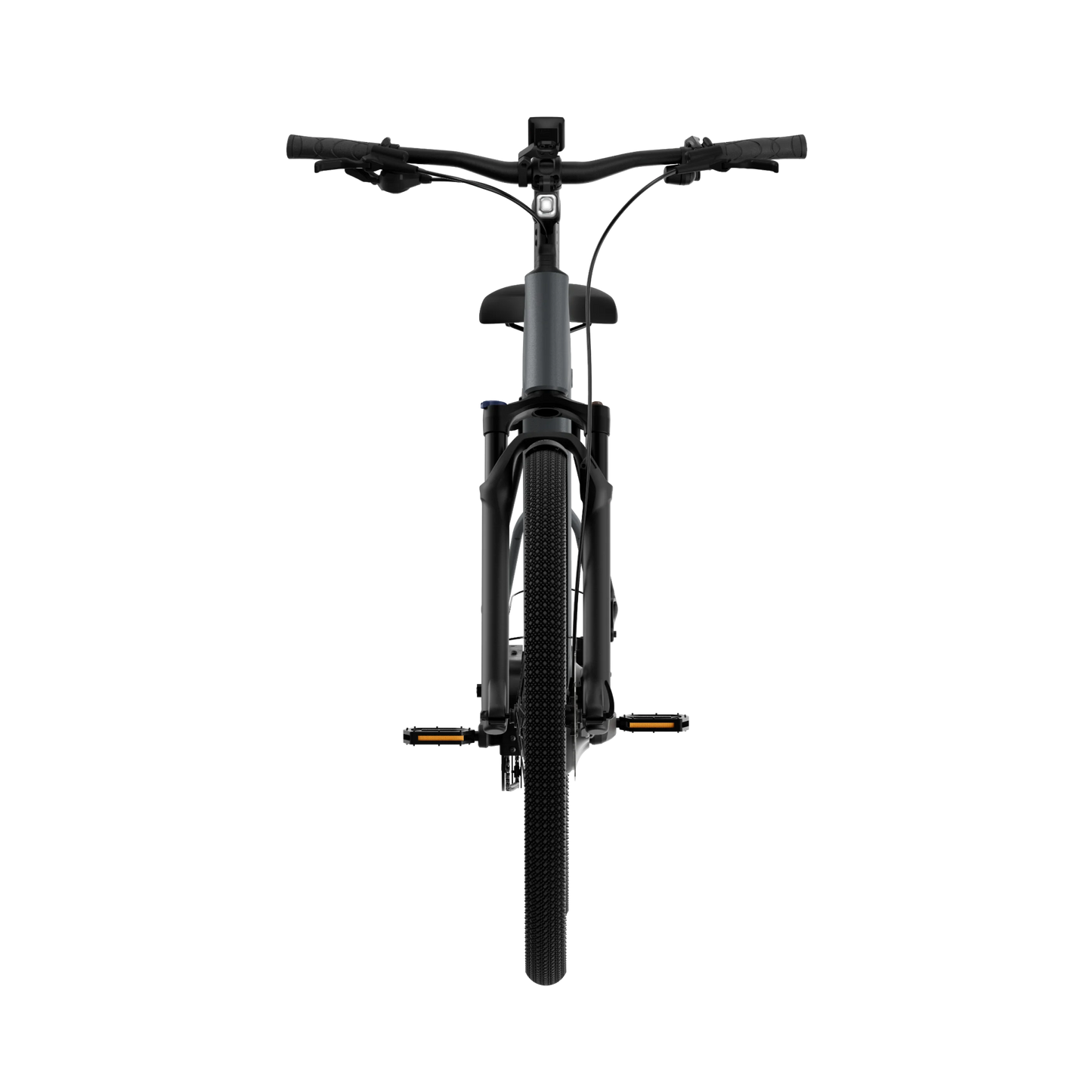

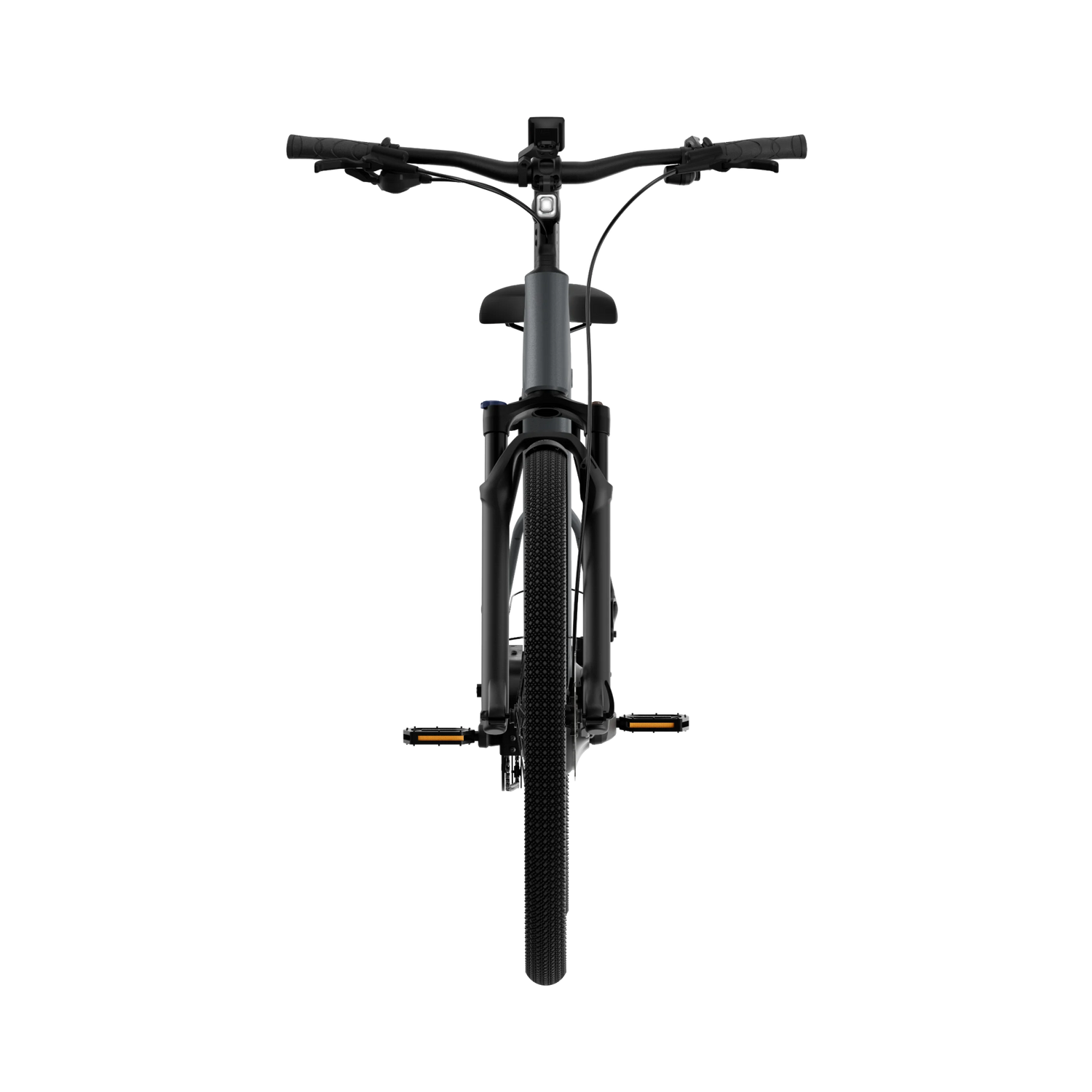

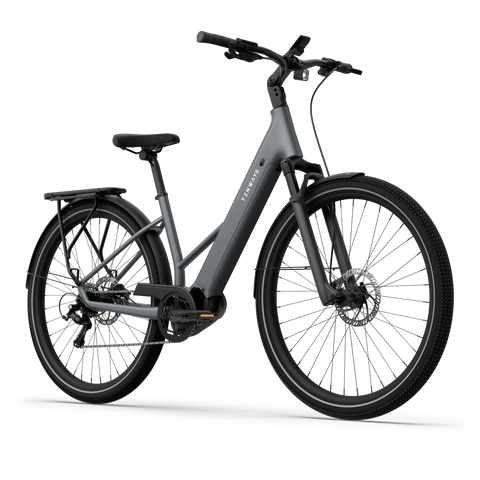

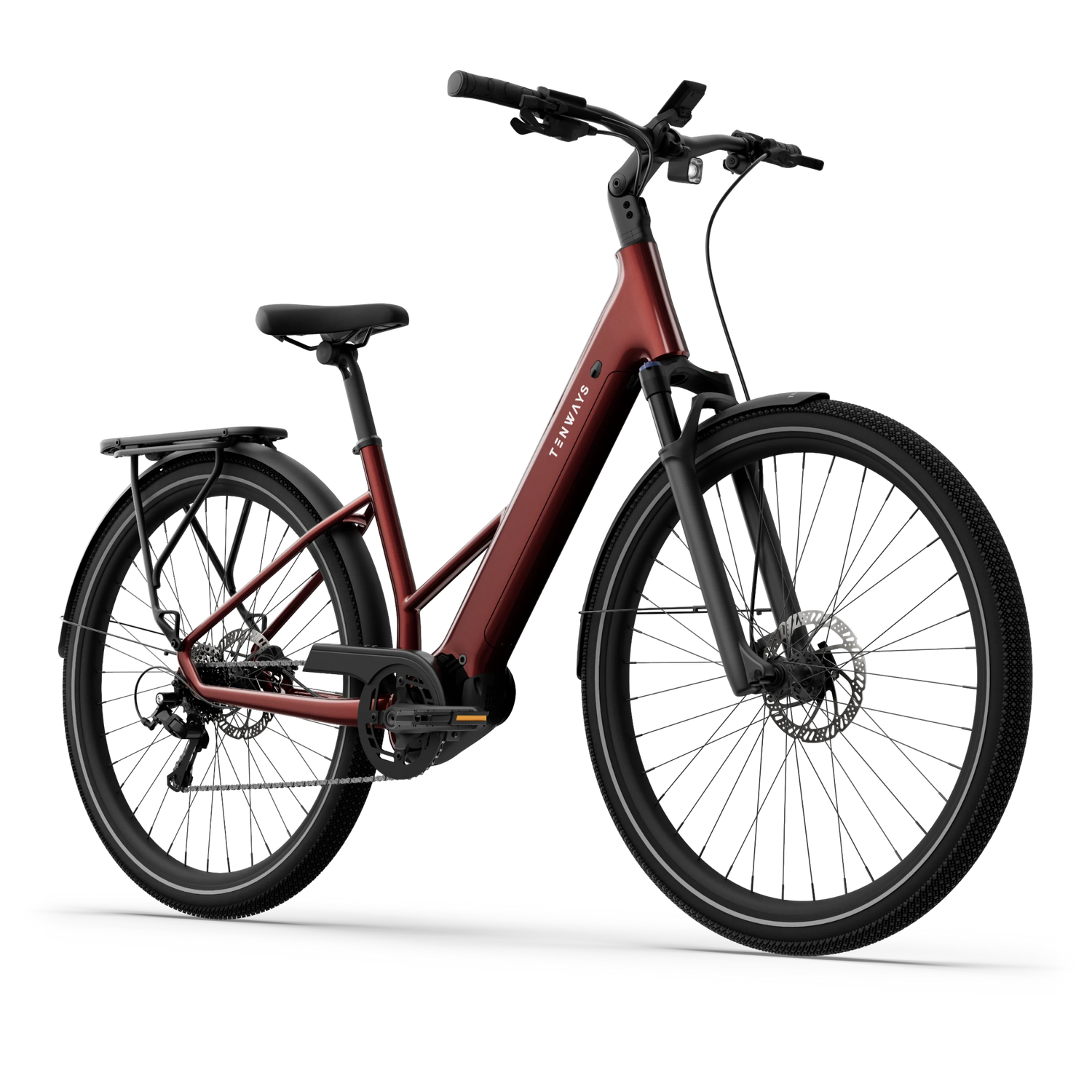

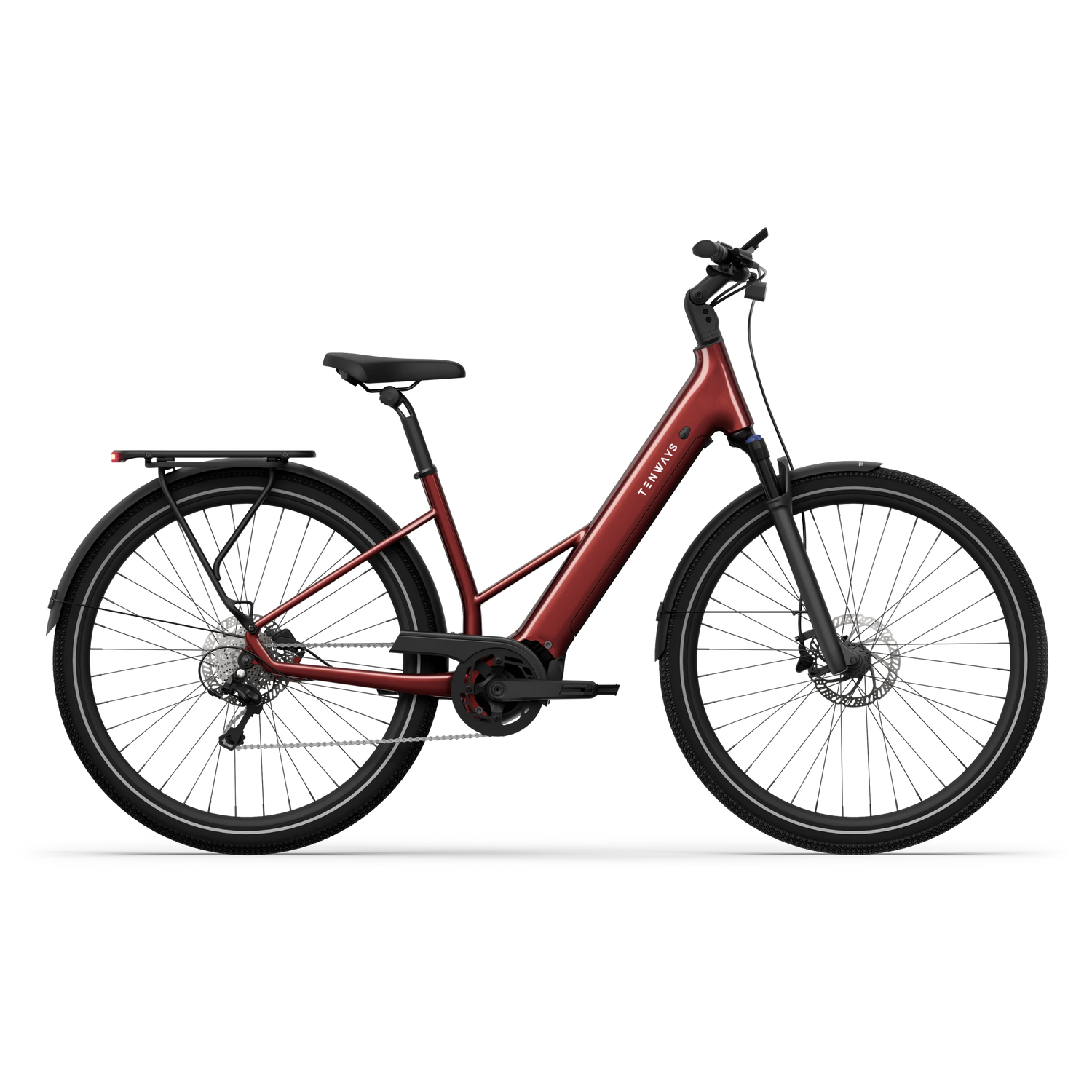

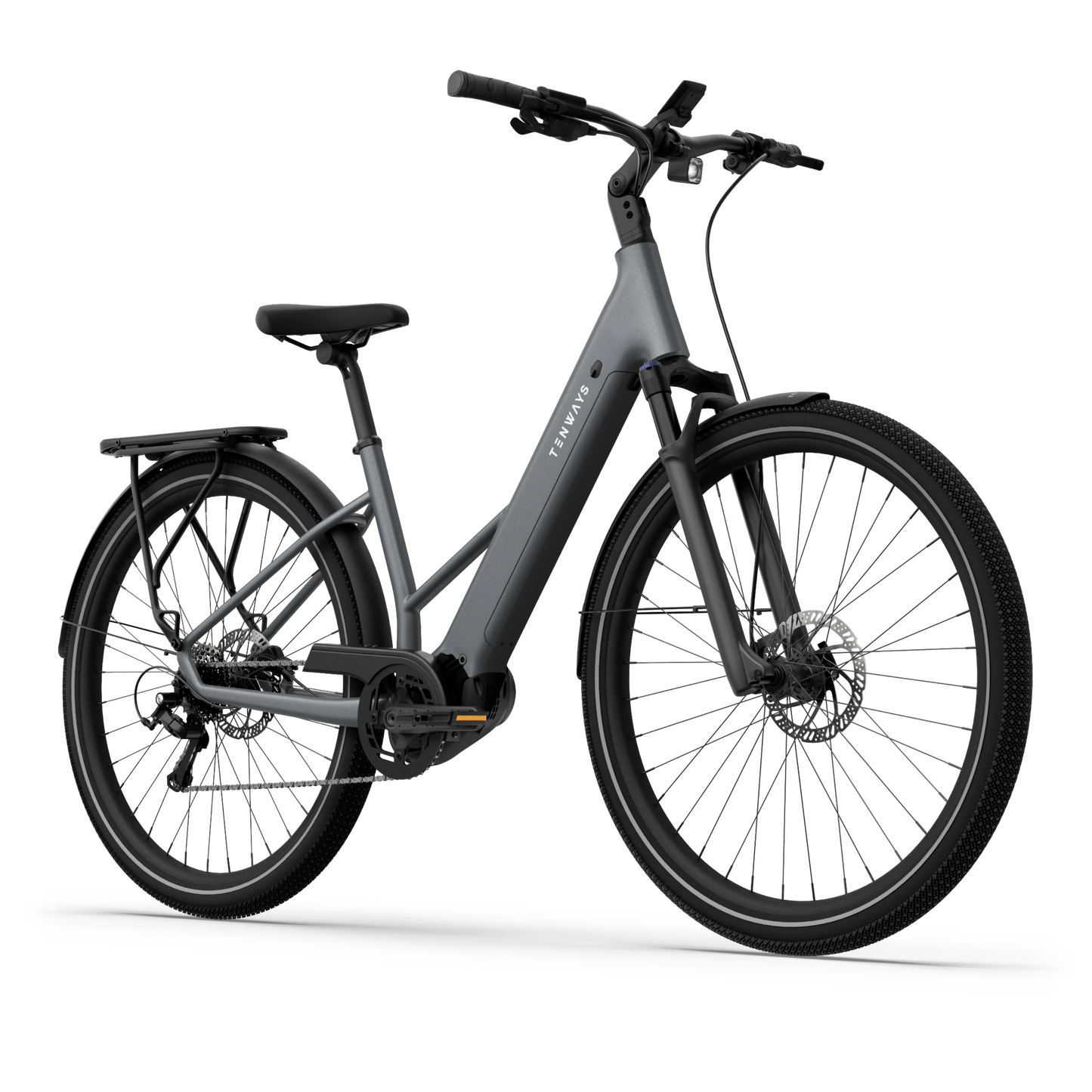

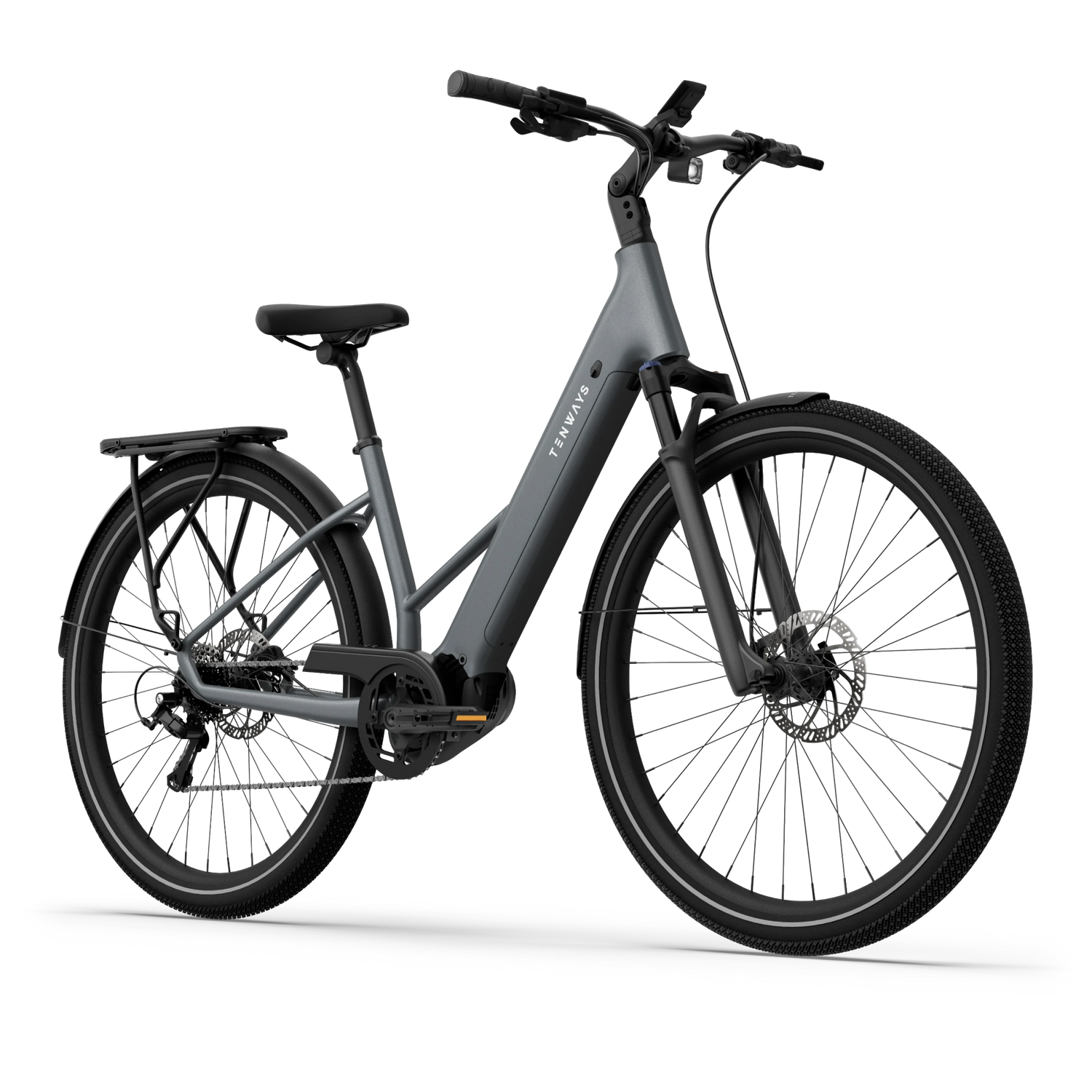

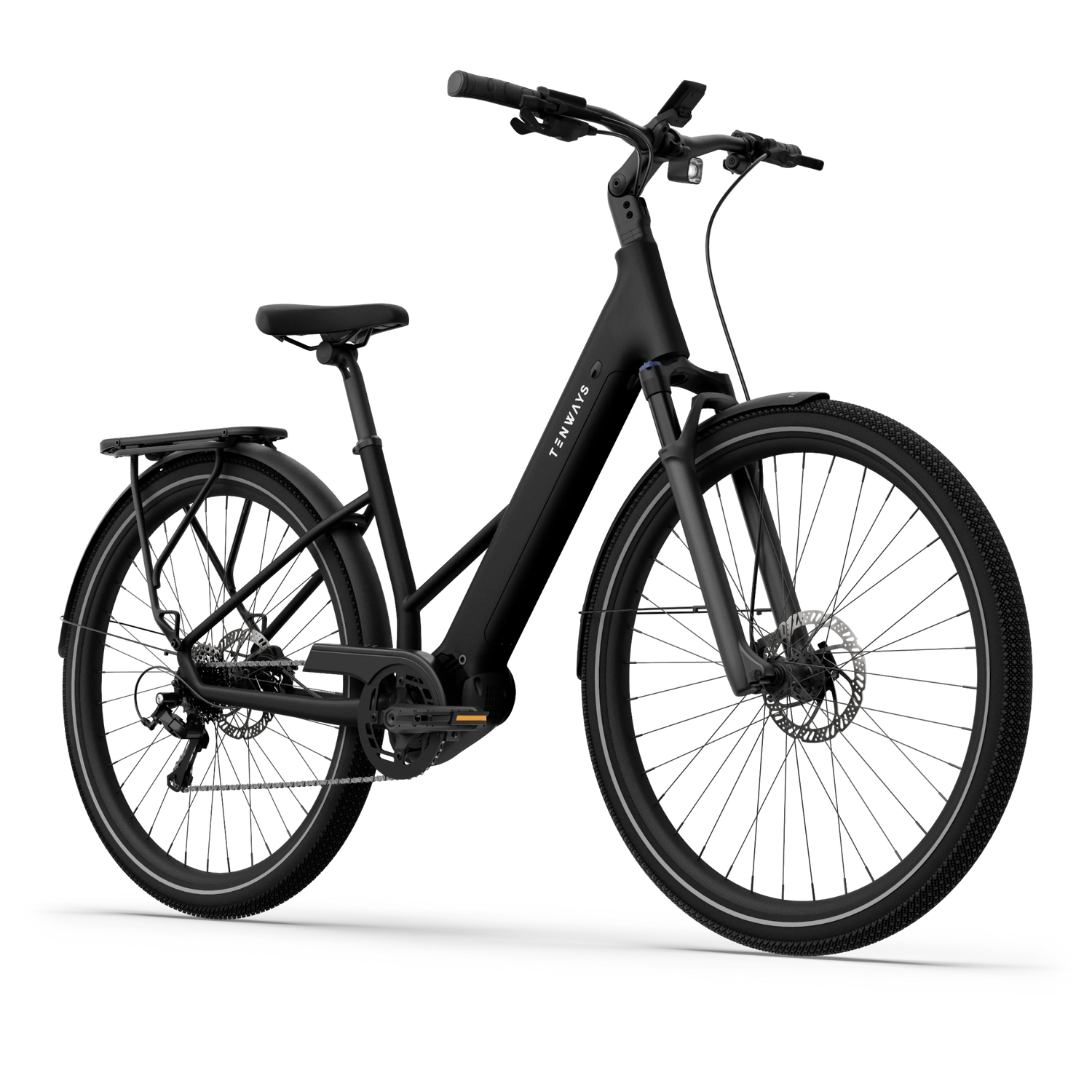

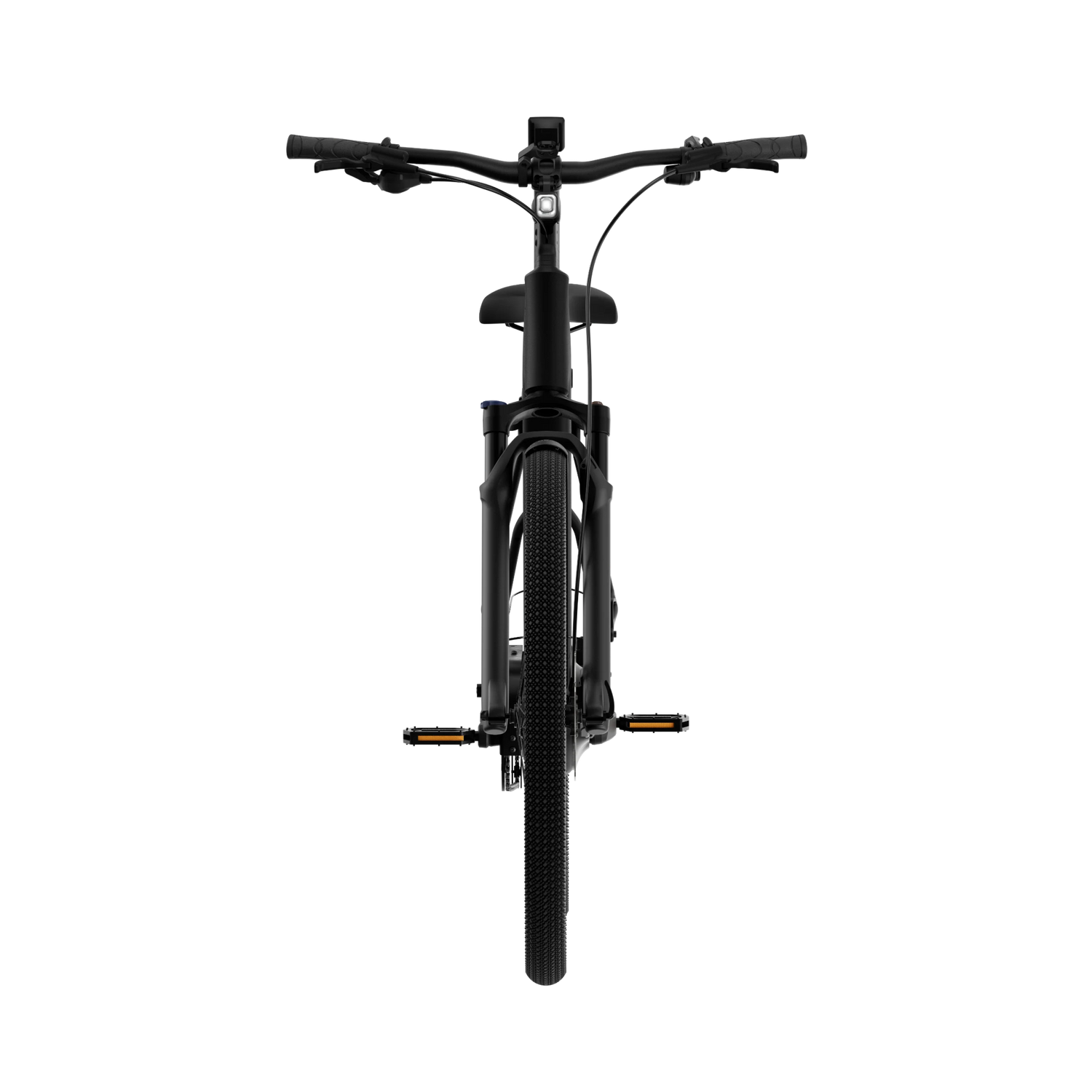

TENWAYS AGO AIR
TENWAYS AGO AIR
A stylish trekking e-bike that combines sleek design with rugged versatility.
- 560 Wh Portable Battery
- 80 Nm Mid-drive Motor
- Suspension Front Fork
- Smart LCD Display
- Adjustable Stem
- Hydraulic Disc Brakes
Mudguards, Kickstand and Rear carrier
Subscribe to our newsletter to receive FREE accessories with your AGO Air order.
ABUS Foldable Lock
The folding lock offers good theft protection in an easy-to-use package. It will be shipped separately in 2 working days.
Insurance
LAKA
Add Laka insurance to your cart and protect your bike (for DE, FR, NL, and BE). You will receive the email for insurance payment & activation after placing your e-bike order.
Learn more
Pay with Klarna:
Pay now. Direct Bank Transfer.
Pay in 30 days. Interest-free.
Pay over time. Monthly financing.
Buyer protection included.
All listed product prices apply to EU countries and include VAT and shipping. Prices may vary by country due to differences in VAT rates and shipping costs. Customers outside the EU are responsible for customs duties, taxes, and import fees.
Free shipping & VAT included & 2-year warranty
Sleek Trekking Delight
Our Four Promise To You
order today ,ride in 7 days
Order today,
ride in 7 days
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period
Our Four Promise To You
Our Four Promise To You
Order today,
ride in 7 days
200+ offline service centers across Europe
Responsive support that guarantees results
Spare parts supplied beyond the warranty period
Geometry
Specification
Belt Drive
Chain Drive
| SIZE (mm) | ONE SIZE |
|
A
Effective top tube
|
640 |
|
B
Seat tube length
|
460 |
|
C
Head tube
|
184 |
|
D
Steering angle
|
69.6 |
|
E
Seat tube angle
|
71 |
|
F
Chainstay
|
481 |
|
G
Wheelbase
|
1168 |
|
H
Standover
|
553.9 |
| SIZE (mm) | ONE SIZE |
|
A
Effective top tube
|
618 |
|
B
Seat tube length
|
432 |
|
C
Head tube
|
174 |
|
D
Steering angle
|
69.6 |
|
E
Seat tube angle
|
71 |
|
F
Chainstay
|
481 |
|
G
Wheelbase
|
1145 |
|
H
Standover
|
577.4 |
ELECTRONIC
-
MotorTENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque)
-
SensorIntegrated Torque Sensor of the Mid-drive Motor
-
DisplayDIGIWISE BC240+K 31 TFT color Display
-
Battery561.6 Wh (36 V, 15.6 Ah ) Lithium-ion Battery
-
ControllerIntegrated Controller of the Mid-drive Motor
-
LightsStVZO-compliant
PERFORMANCE
-
Top Speed25 km/h
The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
-
RangeUp to 100 km
Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
-
Climbing AbilitySuitable for climbing slopes *
The actual performance would depend on the rider's physical strength.
COMPONENTS
-
FrameAlloy Frame
-
Front ForkSuspension Front Fork
-
DrivetrainBelt Drive:
SHIMANO NEXUS 5-Speed

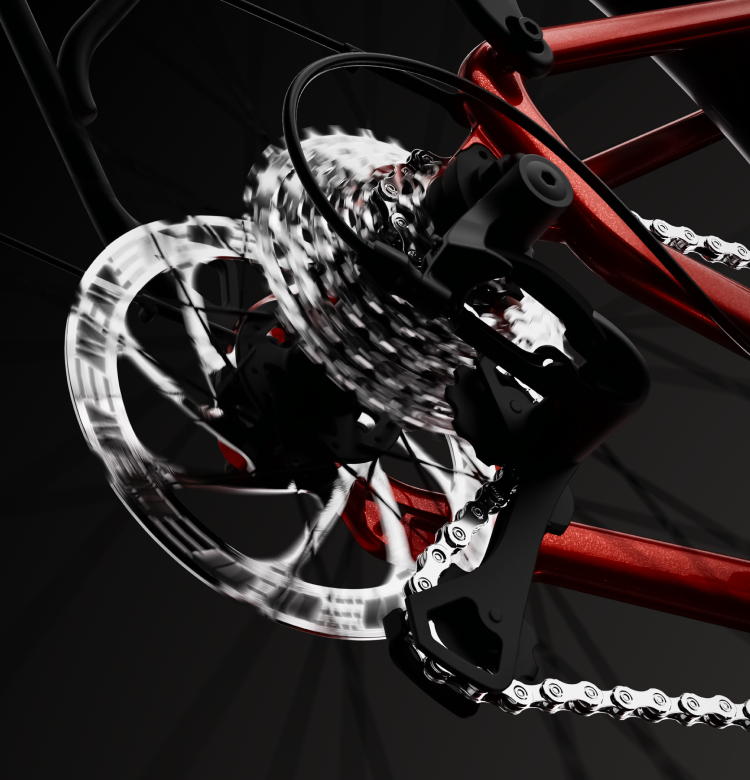

Chain Drive:
SHIMANO CUES 9-Speed -
TireKENDA 700*50C 60TPI EPS/Reflective line
-
BrakeSHIMANO Hydraulic Disc Brakes
-
Bottom BracketBAFANG
-
WheelsALLOY DB RIM AND ALLOY BEARING HUB
-
CranksetAlloy 170mm Powder paint black
-
Weight*Belt Drive:
Net weight: 23.5 kg(excluding all accessories)
Full weight: 26 kg(including all accessories)
Permissible Max. Weight: 145 kg(including the bike's own weight)
Chain Drive:
Net weight: 24.85 kg(excluding all accessories)
Full weight: 27.4 kg(including all accessories)
Permissible Max. Weight: 145 kg(including the bike's own weight)
All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
Specification
Version
BELTDrive
€2.499
CHAINDrive
€2.199
Color
Accessories
PERFORMANCE
560 Wh Battery
560 Wh Battery
80 Nm max. torque
80 Nm max. torque
Gates CDX Carbon Belt Drive

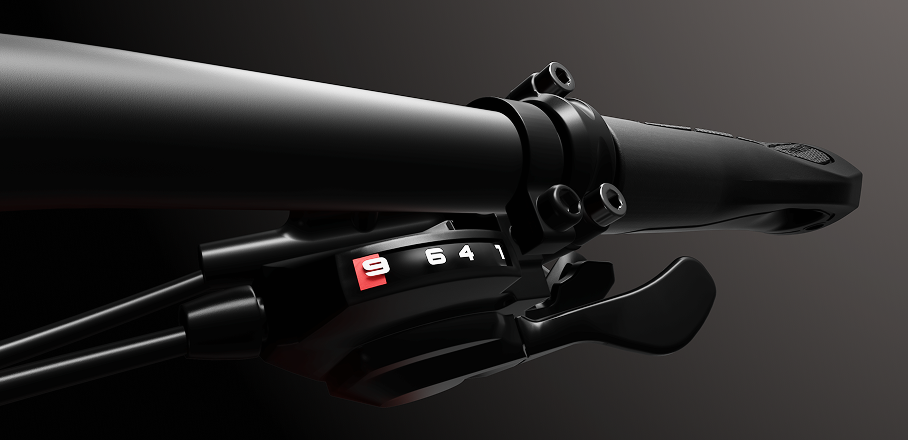

Shimano 9-speed Drive Train
Shimano Nexus 5-speed
Up to 100 km range
Specification
YOUR RIDE. YOUR CHOICE.
Belt Drive
Chain Drive
Drivetrain
Gates CDX Carbon Belt
Chain
Gates CDX
Carbon Belt
Chain
Derailleurs
Shimano
NEXUS 5-Speed
Shimano
CUES 9-Speed
Shimano
NEXUS 5-SPeed
Shimano
CUES 9-Speed
Front Suspension
Air suspension fork
Hydraulic suspension fork
Air
suspension fork
Hydraulic
suspension fork
Urban Commuting
Urban Commuting
Climbing Slopes
Climbing Slopes
Field Trails
Field Trails

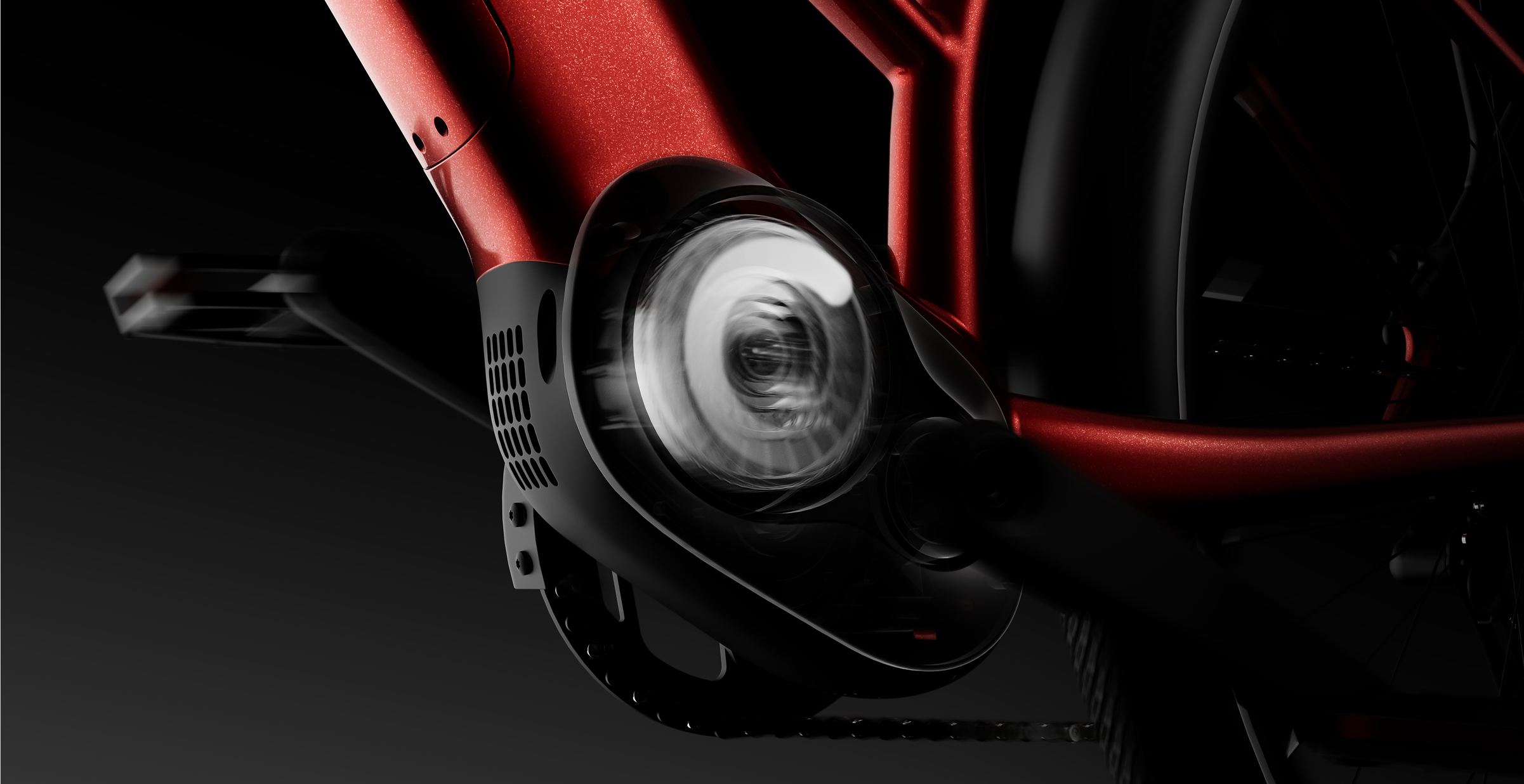

Powerful Mid-Drive Motor
for Steep Climbs
for Steep Climbs
Powerful Mid-Drive
Motor for Steep Climbs
Motor for Steep Climbs
80 Nm max.
Torque
The robust mid-drive motor provides the power needed for steep slopes or carrying heavy loads.
Durable Gates CDX Carbon
Belt Drive
Durable Gates CDX
Carbon Belt Drive
Absolute dependability and lasting performance, with minimal
fuss — no grease, no hassle, just pure cycling pleasure.
*Only available for AGO AIR （Belt Drive）
0 Maintenance
Required
Durable
Quality
Shimano Nexus 5 Internal
Gear Hub
Shimano Nexus 5 Internal Gear Hub
Smooth, precise shifting adapts to your cadence, delivering reliable performance across varied terrain.
*Only available for AGO AIR （Belt Drive）
Maintenance-Free
100%-263%
Gear ratio range

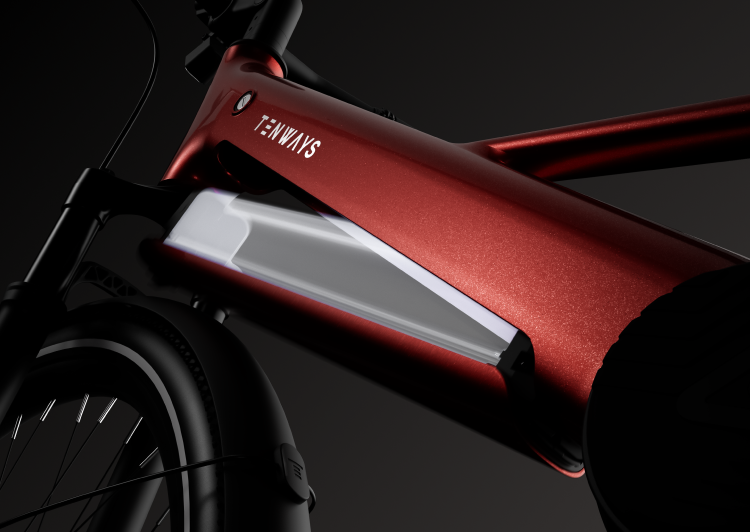

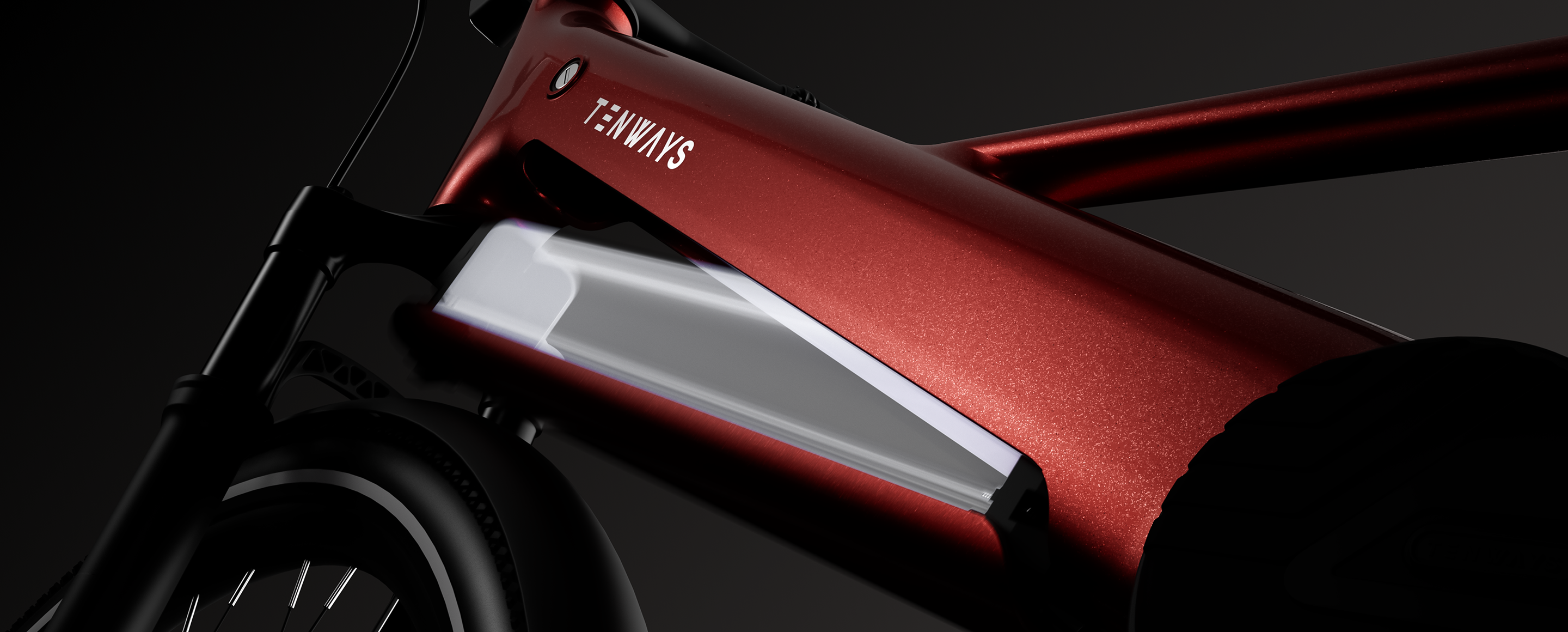

Large Portable Battery,
Up to 100 km Range
Large Portable Battery,
Up to 100 km Range
560 Wh
Capacity
100 km
Range
Seamlessly integrated into the slim frame, the large portable battery is barely noticeable from a distance.

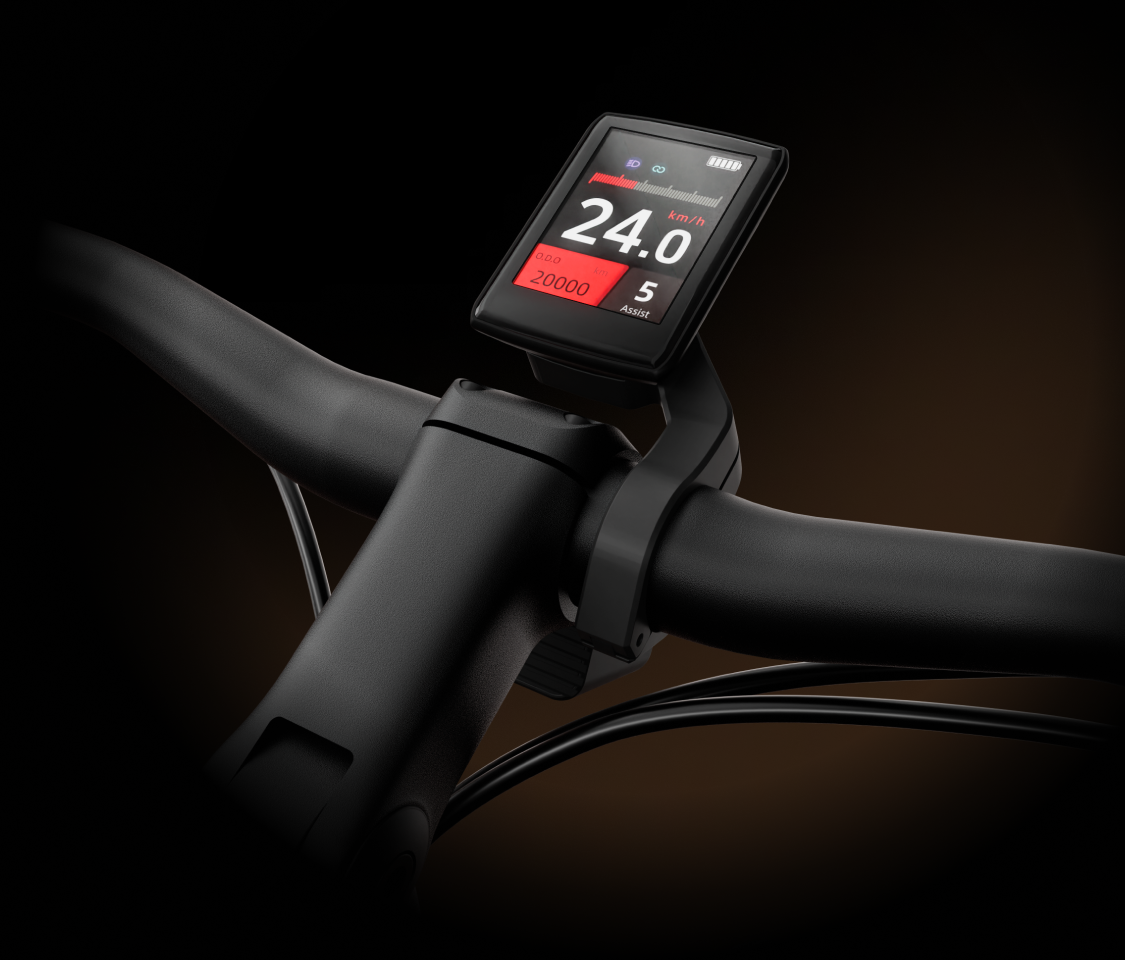

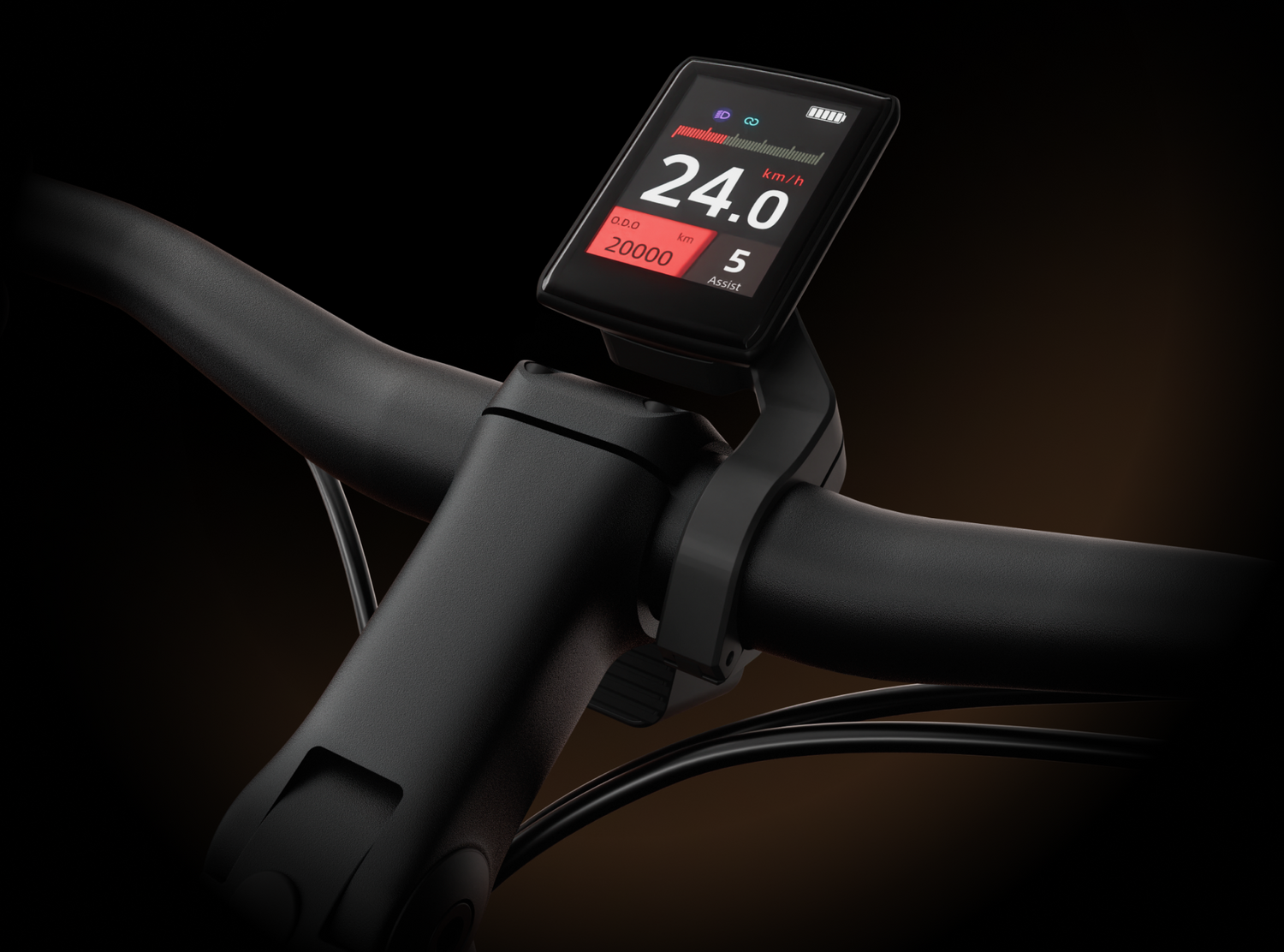

Smart LCD Display Handy, Secure, Intuitive.
Handy Navigation Casting Function
Cast real-time navigation directly to your LCD display to help you stay focused on the road ahead.
Supports 7 European Languages
Get all the data you need in the language of your choice; you can choose from 7 European languages (EN, DE, NL, FR, IT, ES, DA).
Dual Unlock Modes Enabled
Secure access to your e-bike with seamless unlocking via Bluetooth or just a password.
Comfort That Goes the Distance
Comfort ThatGoes the Distance

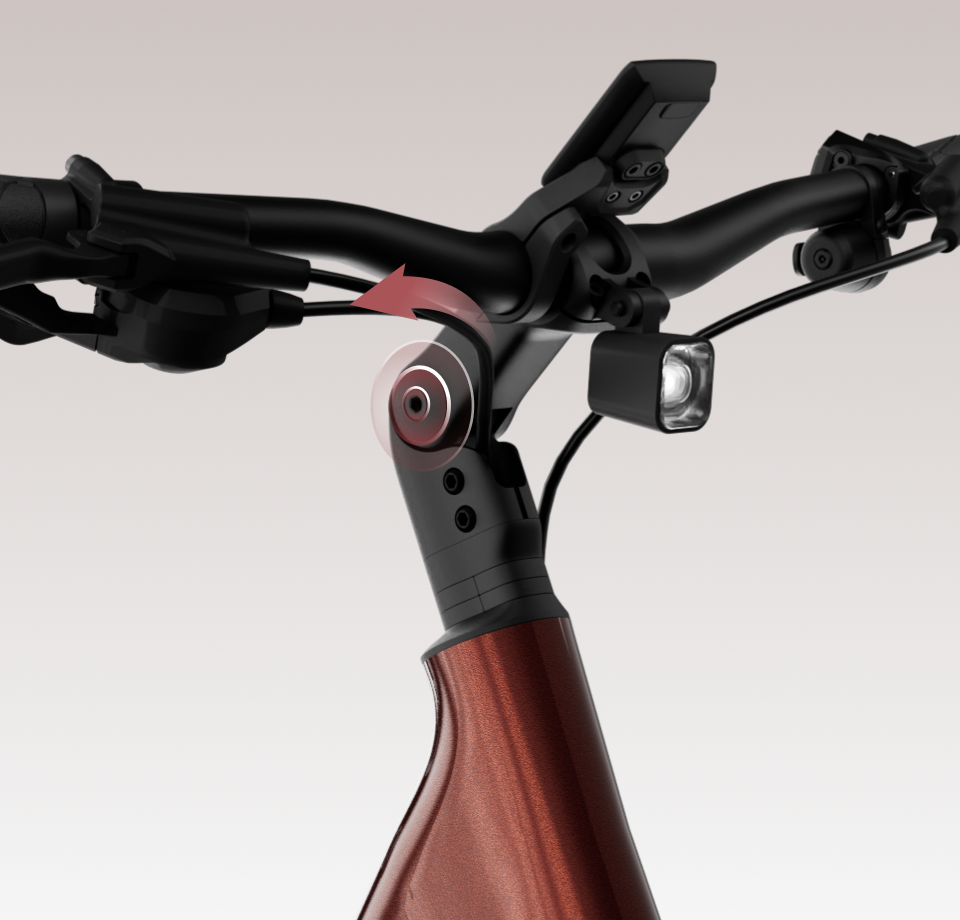

Adjustable Stem
Customizable handlebar height and angle for a perfect fit, regardless of riding style and body type.

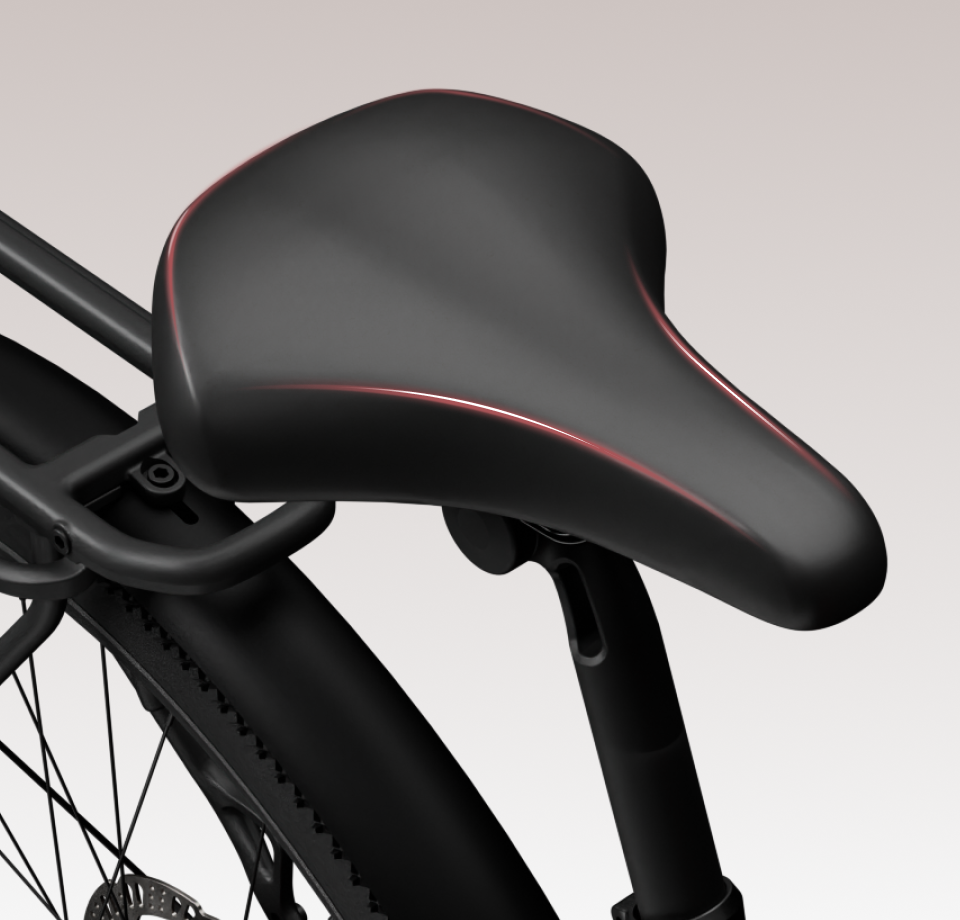

Selle Royal Saddle
Ergonomic and cushioned for comfort, offering added support, whatever the distance.

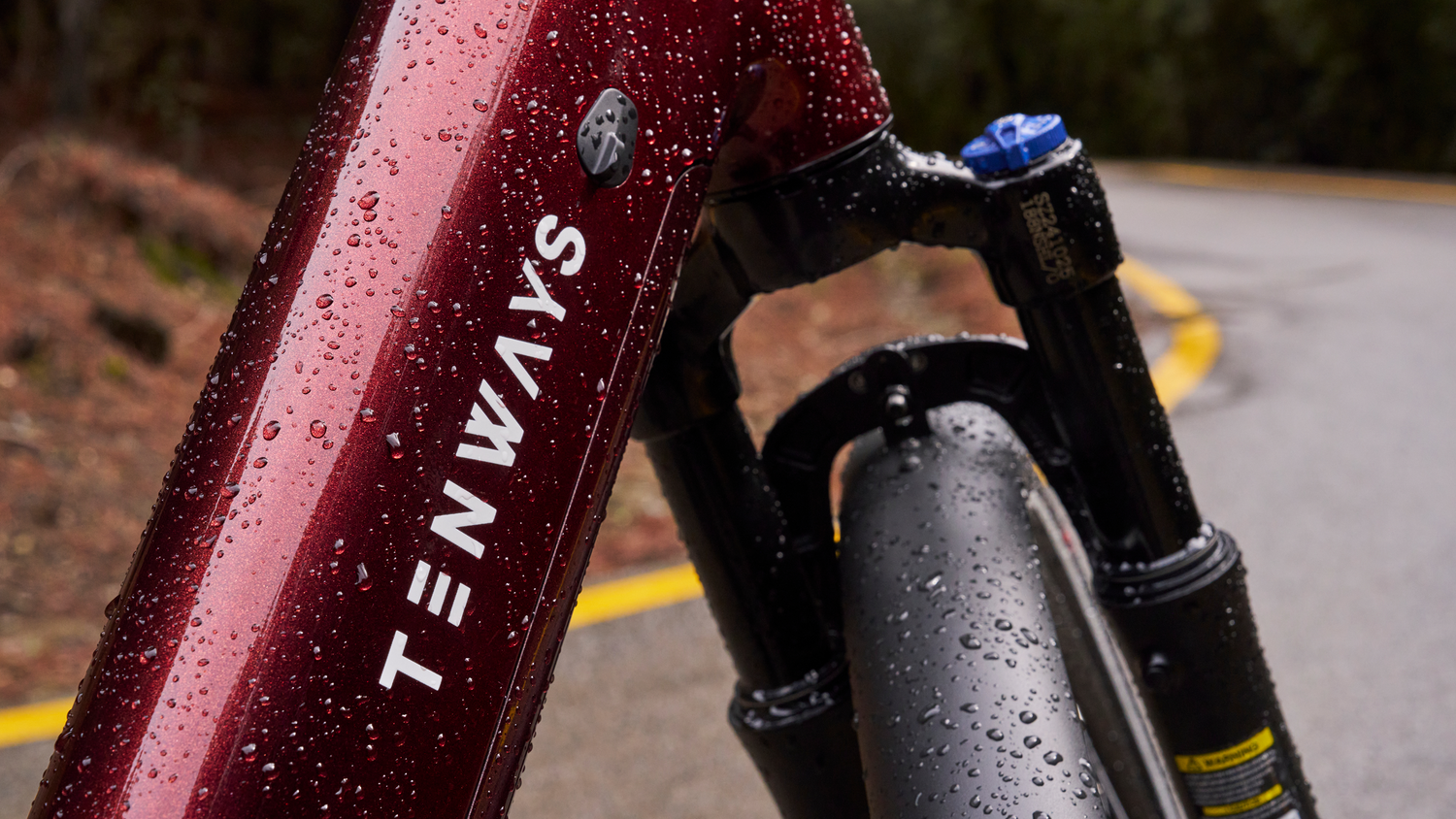

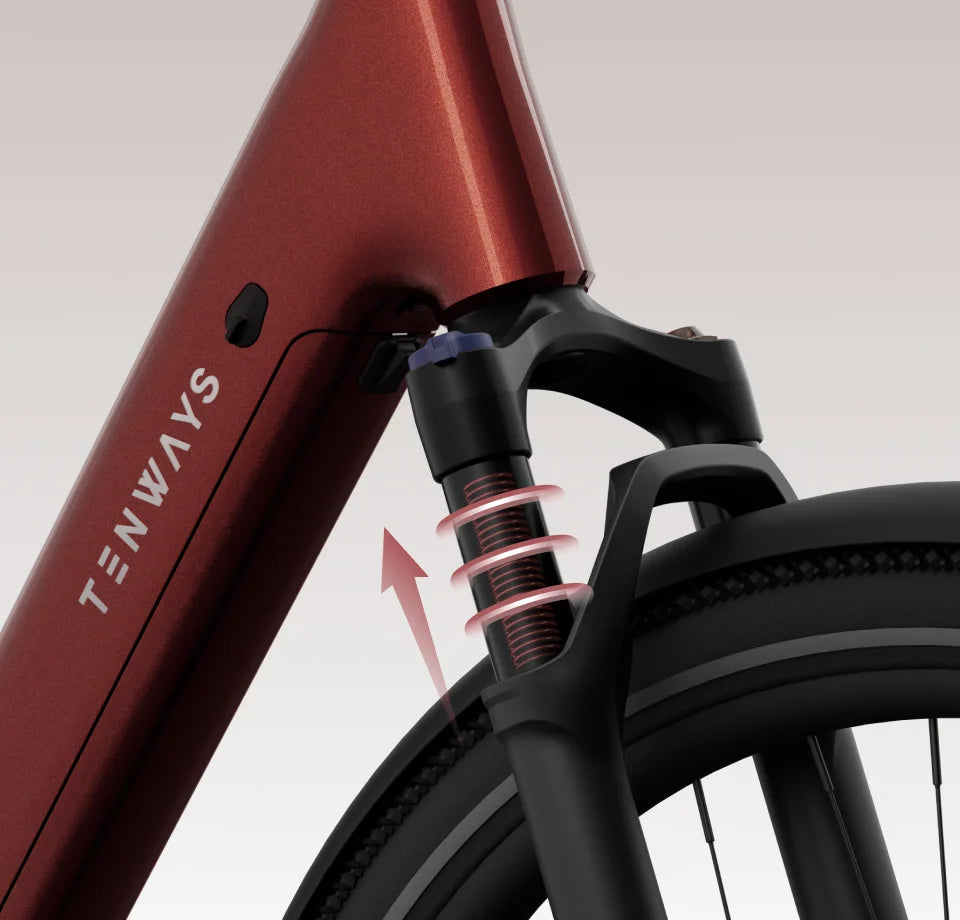

Front Suspension Fork
Absorbs shocks for smooth, stable rides on uneven terrain.
Quality down to the last Detail
1

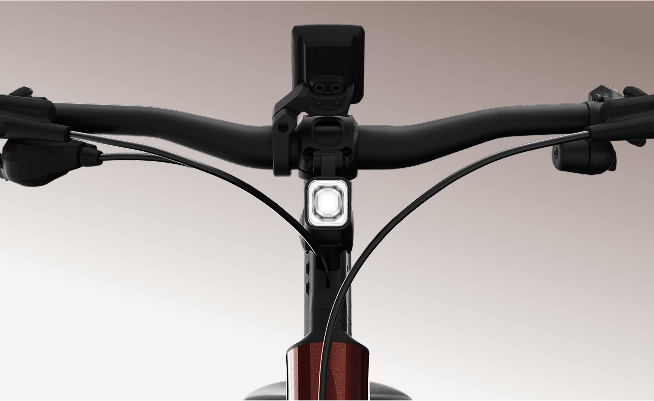

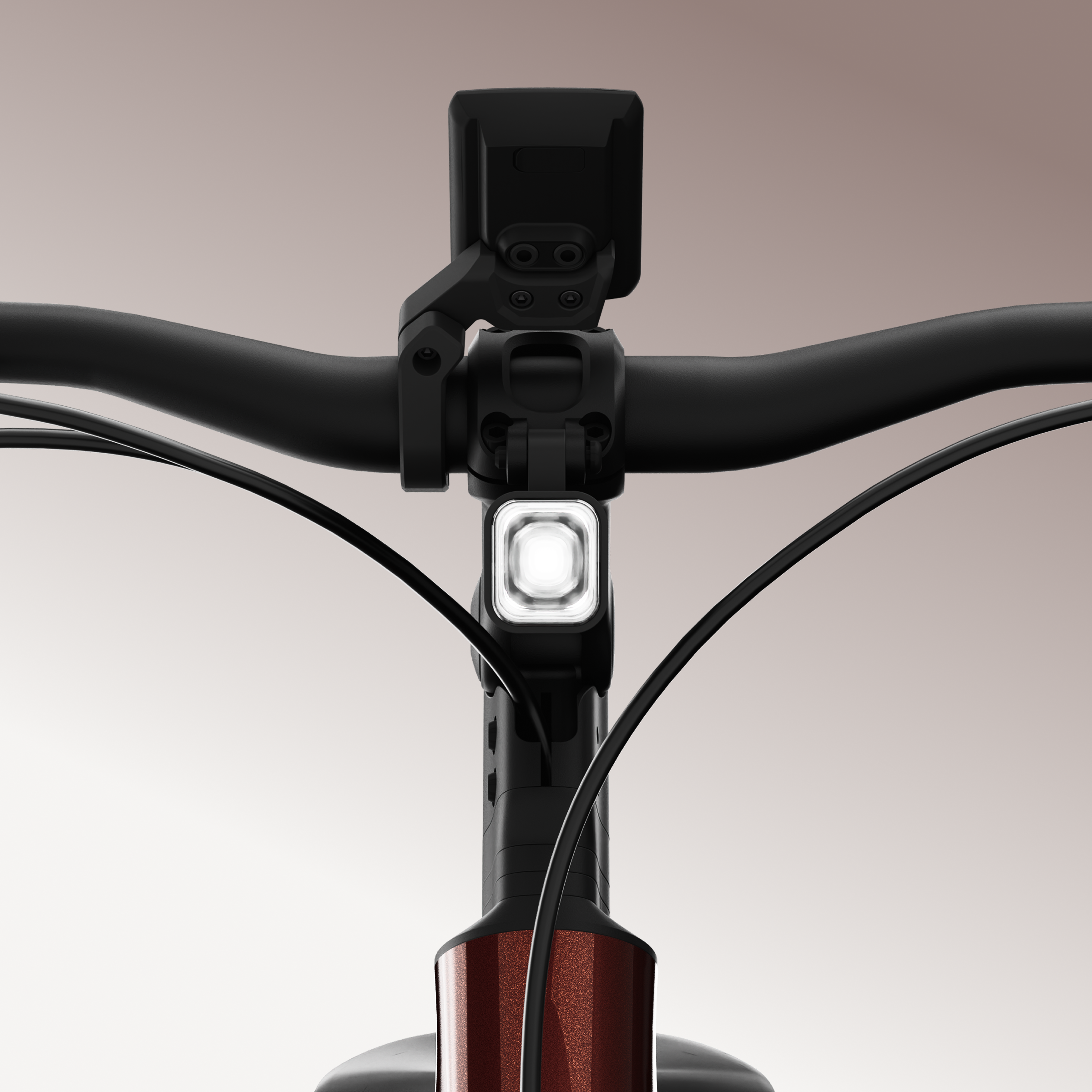

60 Lux Front Light
60 Lux Front Light
StVZO compliant for safe and confident road visibility.
2

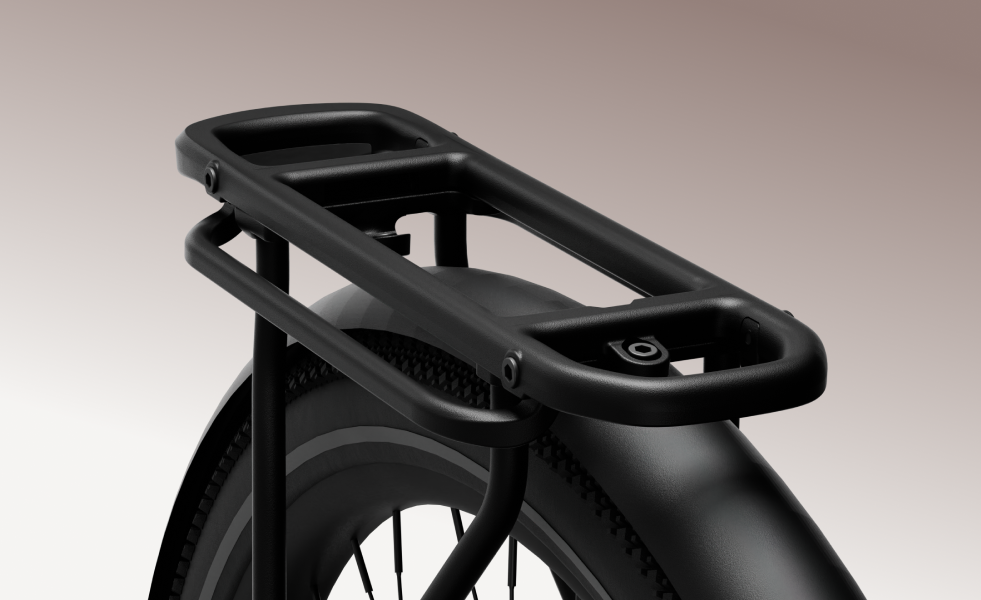

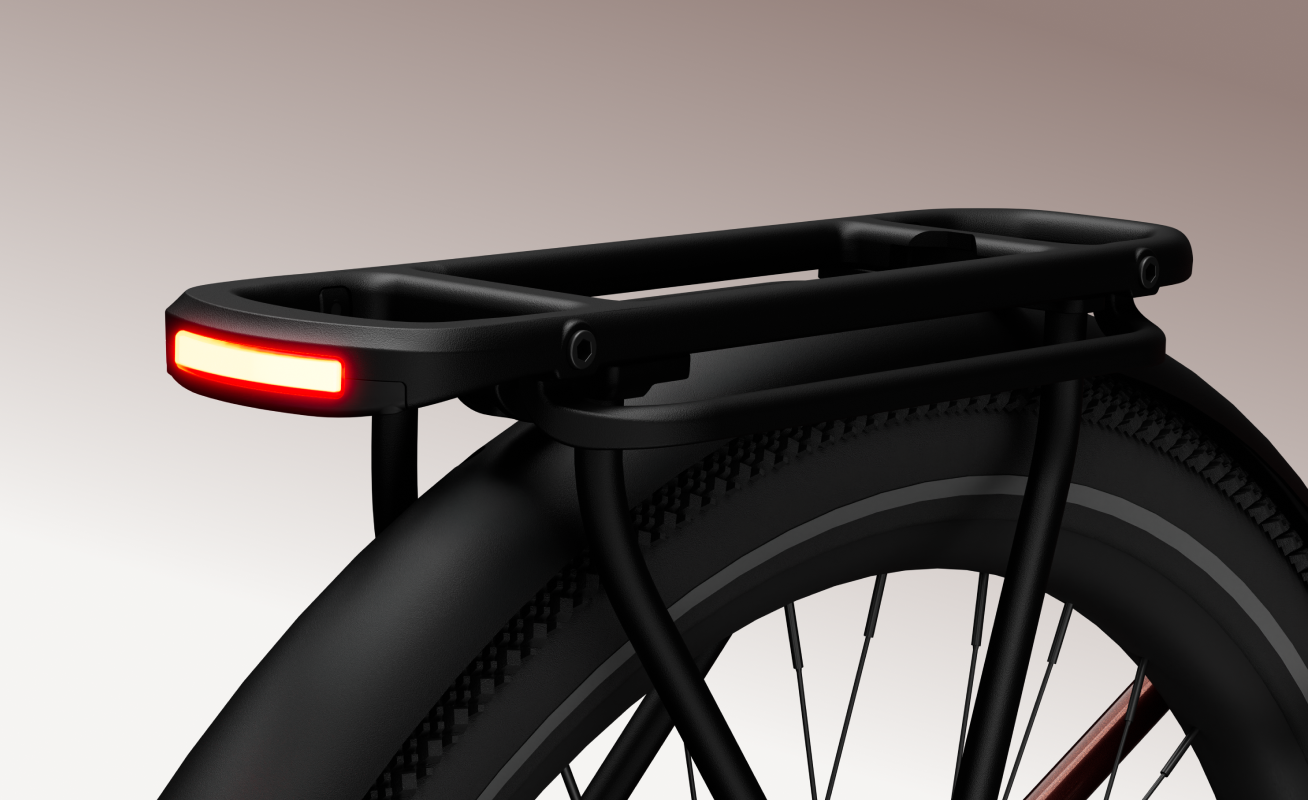

Rear Carrier
Rear Carrier
Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.
3

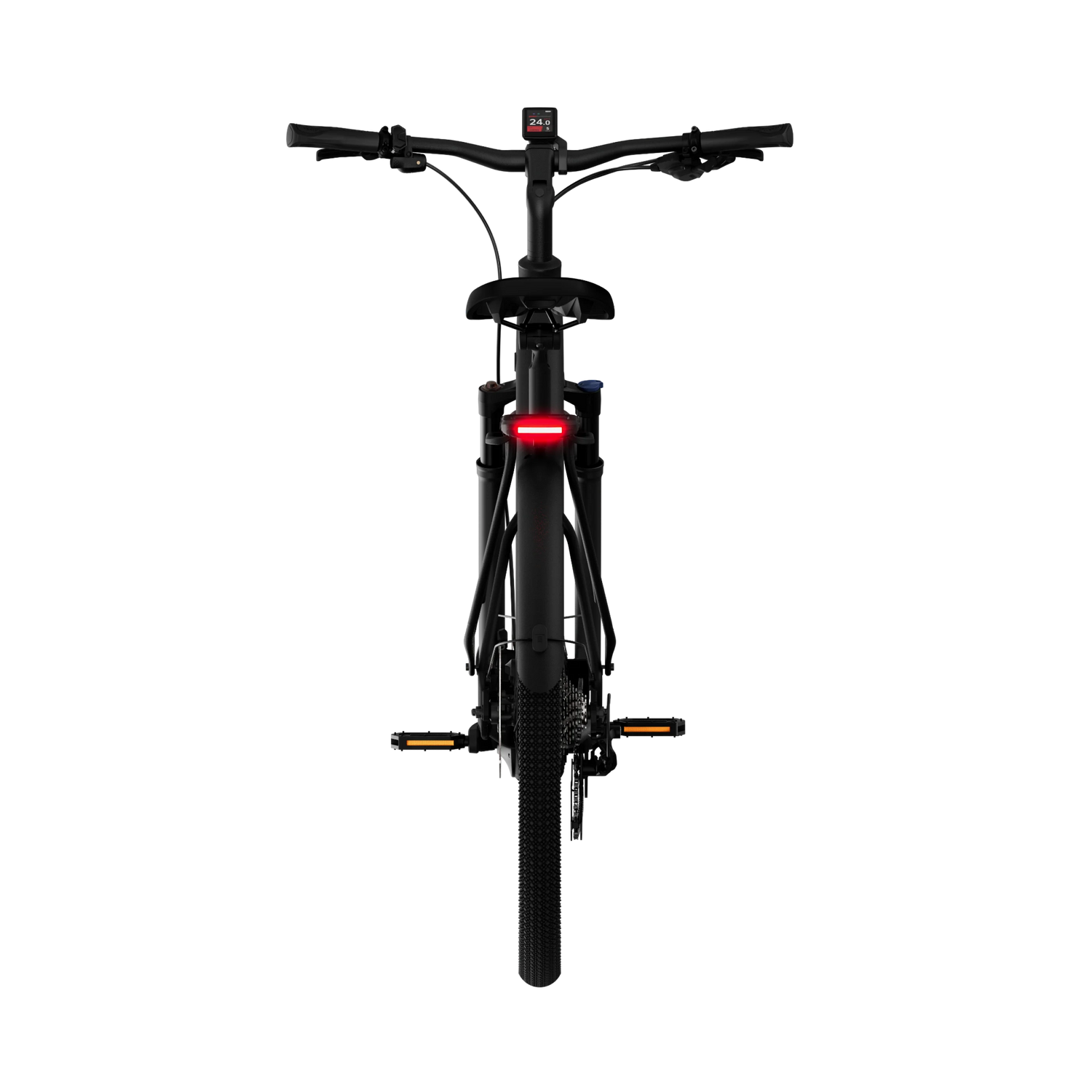

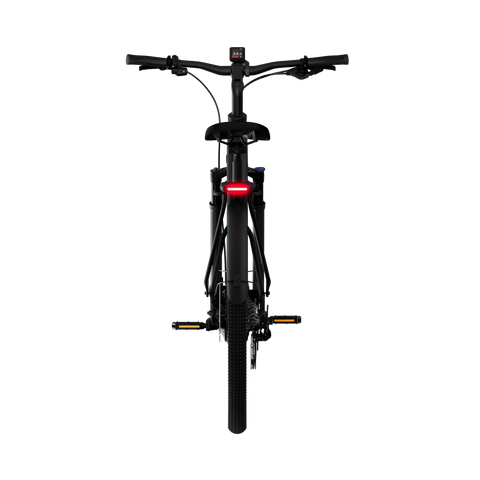

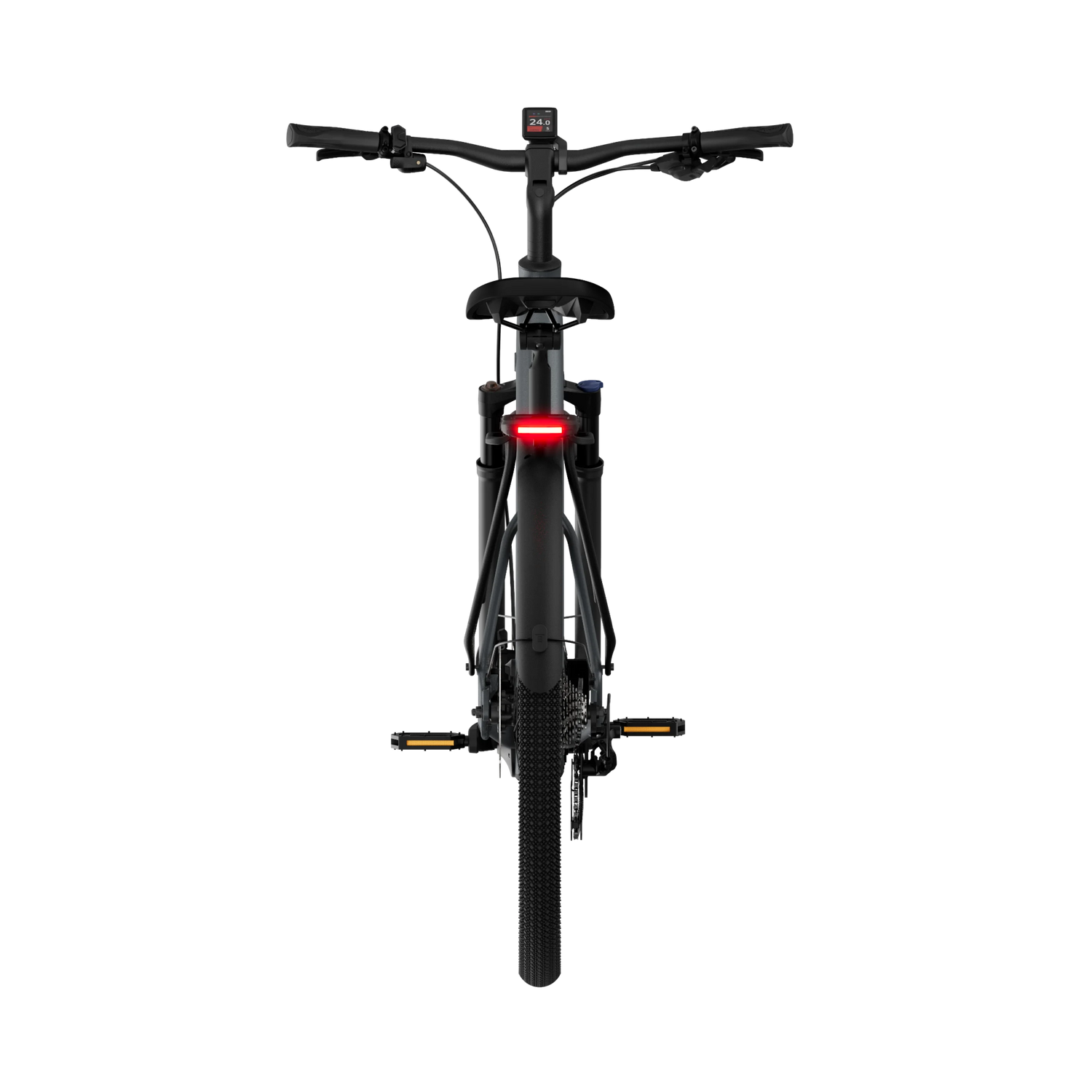

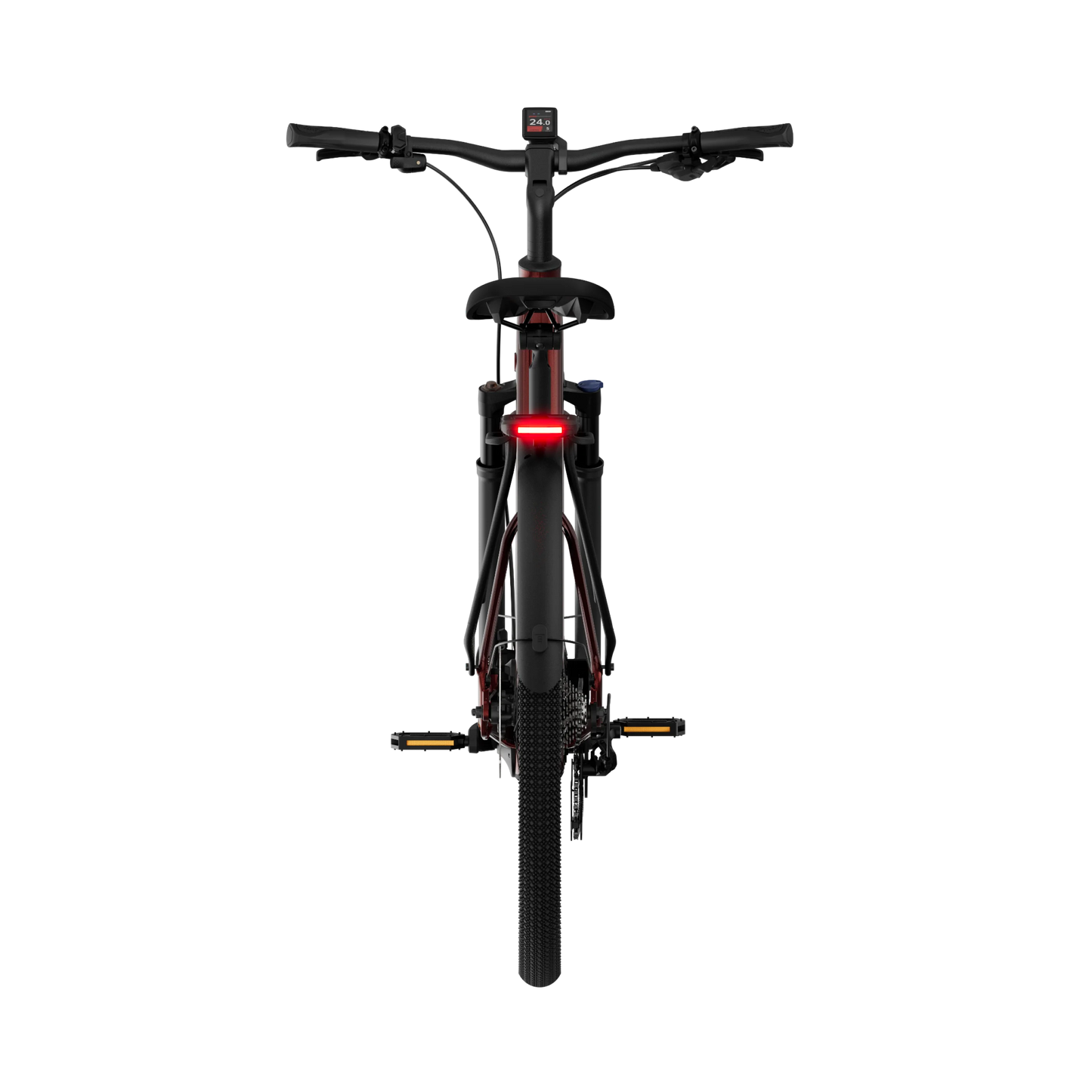

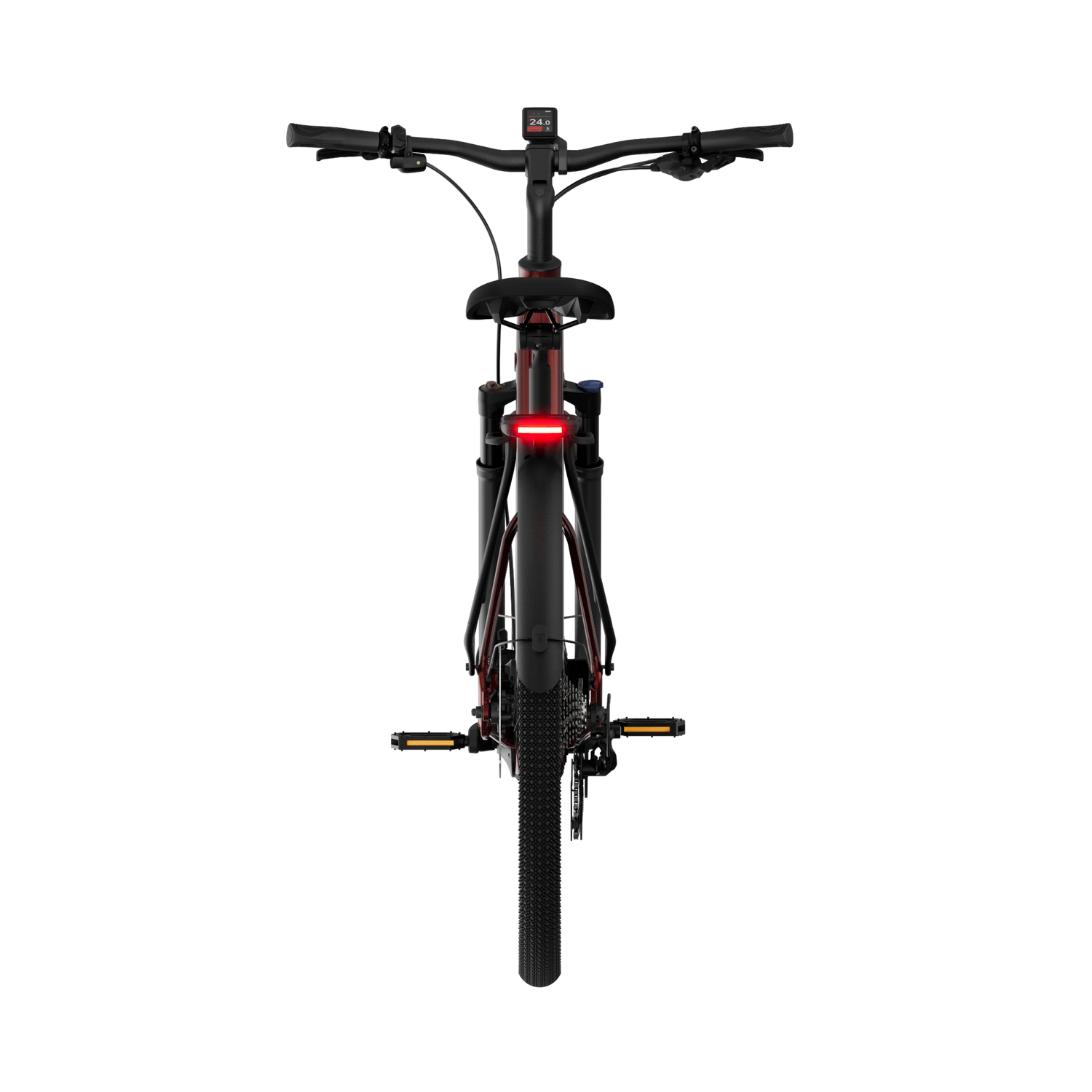

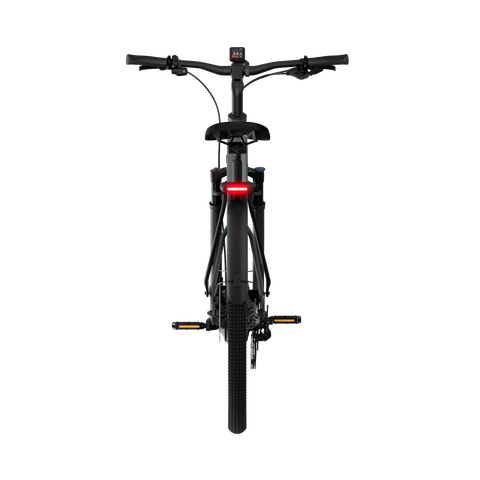

Integrated Rear Light
Integrated Rear Light
Enhanced visibility and safety paired with maximized convenience.
4

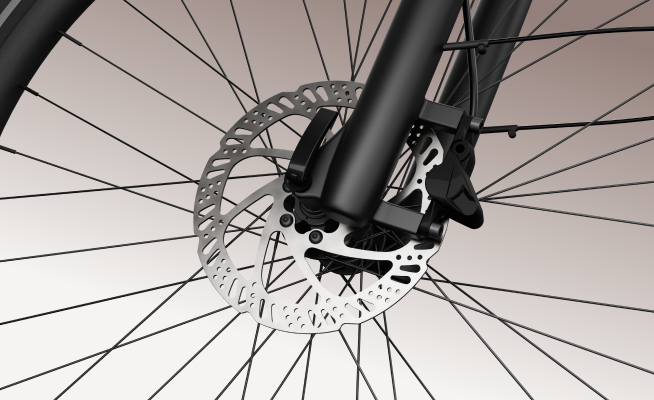

Hydraulic Disc Brakes
Hydraulic Disc Brakes
Exceptional stopping power and stability for reliable braking in all weather conditions.
Quality down to the last Detail
Quality down to the last Detail
60 Lux Front Light
StVZO compliant for safe and confident road visibility.
Rear Carrier
Equipped with MIK system for increased versatility. Can carry loads of up to 25kg.
Integrated Rear Light
Enhanced visibility and safety paired with maximized convenience.
Hydraulic Disc Brakes
Exceptional stopping power and stability for reliable braking in all weather conditions.
Smarter Riding
with the TENWAYS App
with the TENWAYS App
Live Data Dashboard
Easy Navigation
Integrated Help Center
For Commutes and Weekend Fun
For Commutes and Weekend Fun
Urban Exploration Set Free
